X100

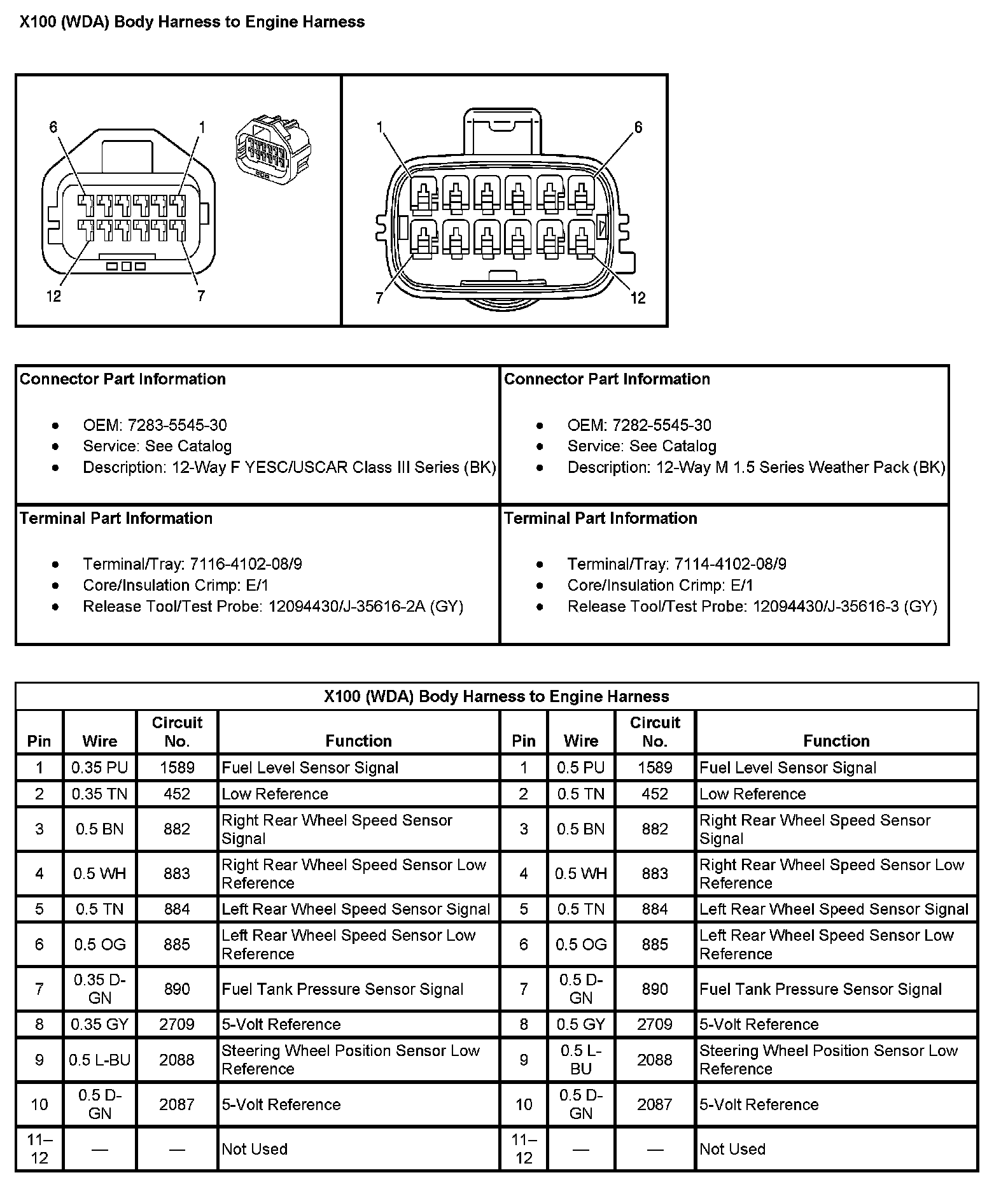

X100 (With RPO Code WDA) Body Harness To Engine Harness:

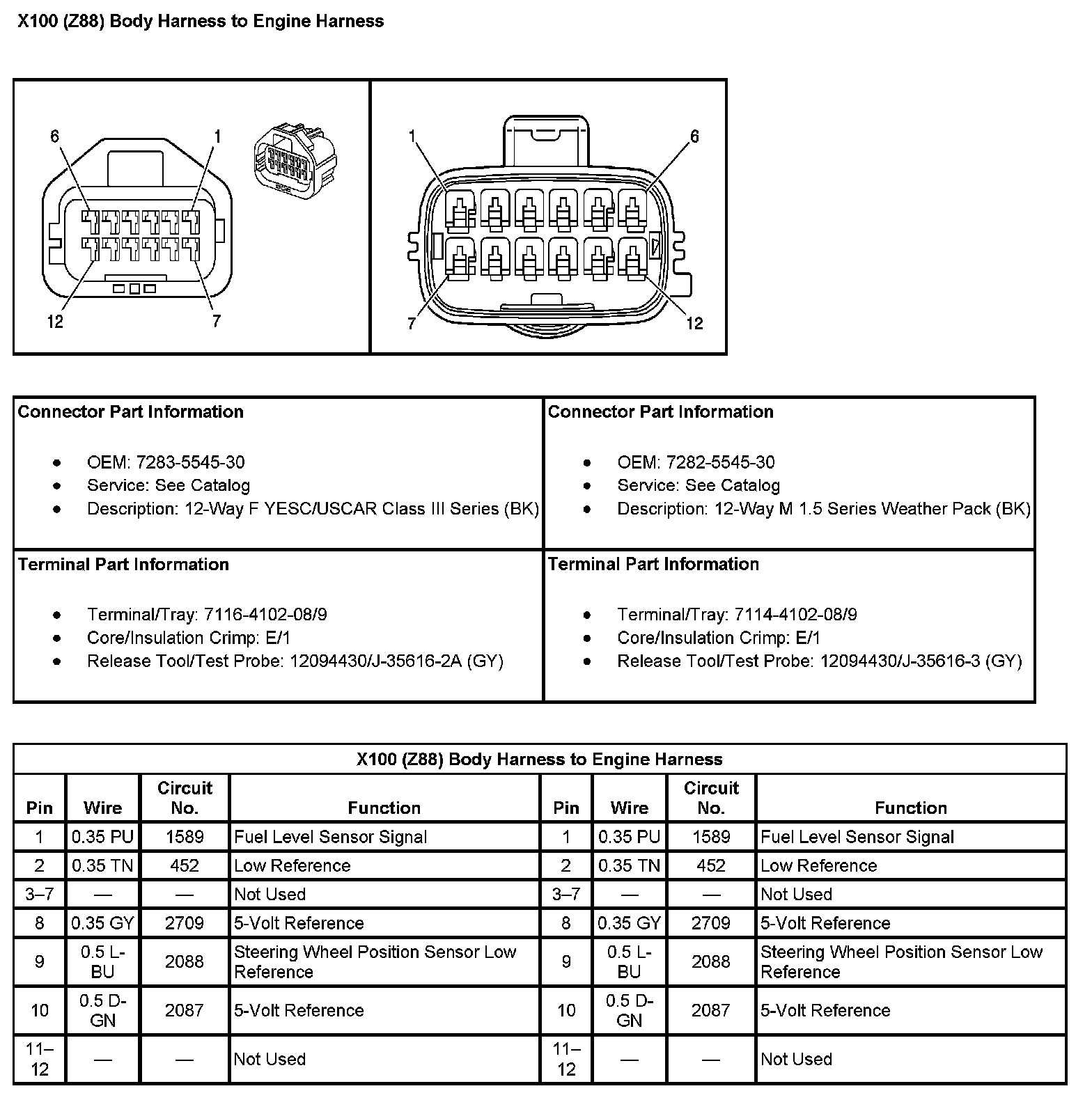

X100 (With RPO Code Z88) Body Harness To Engine Harness:
