Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Auxiliary Power Outlet >> Auxiliary Power Outlet - 115VAC (With RPO Code KV1)

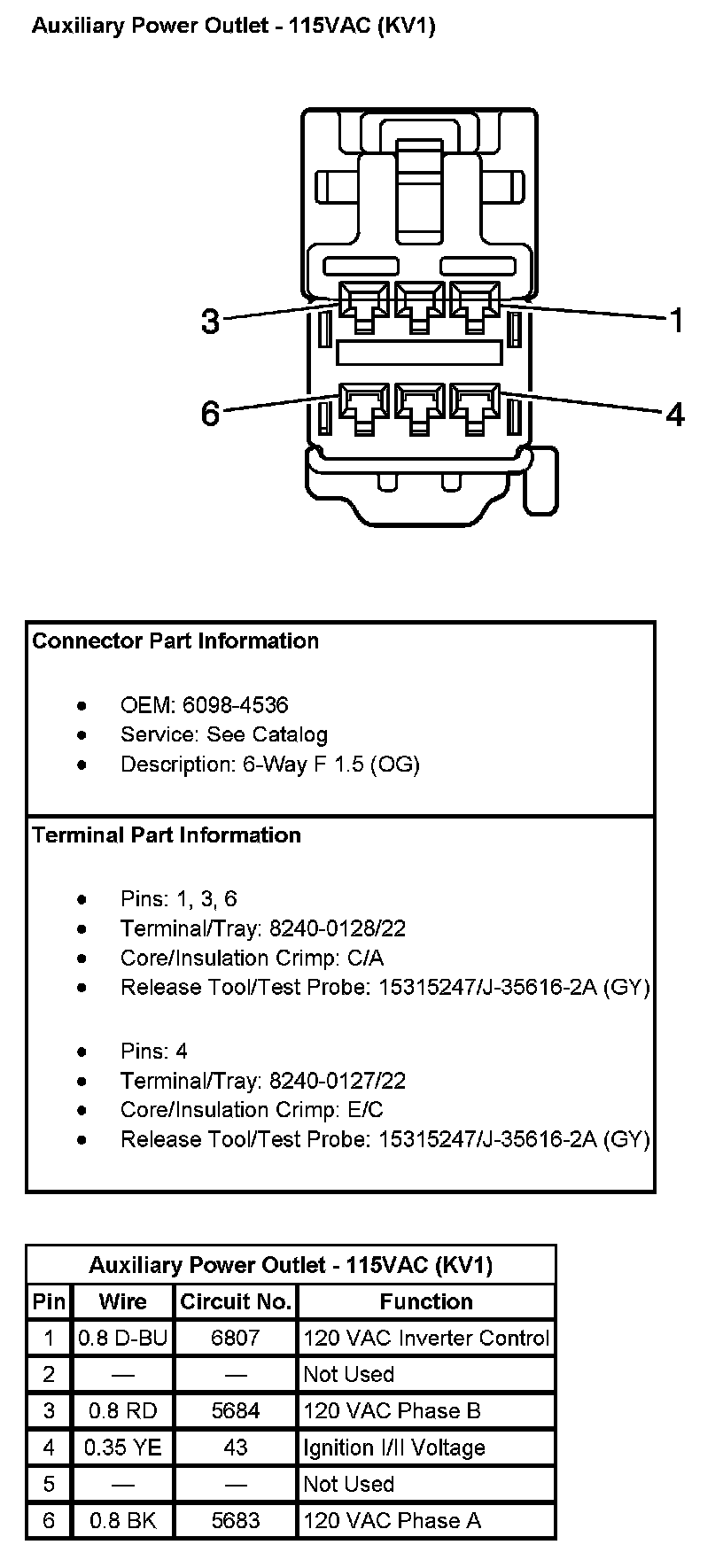

Auxiliary Power Outlet - 115VAC (With RPO Code KV1)

Auxiliary Power Outlet - 115VAC (With RPO Code KV1):
