GMC
>>
2007
>>
Acadia AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>

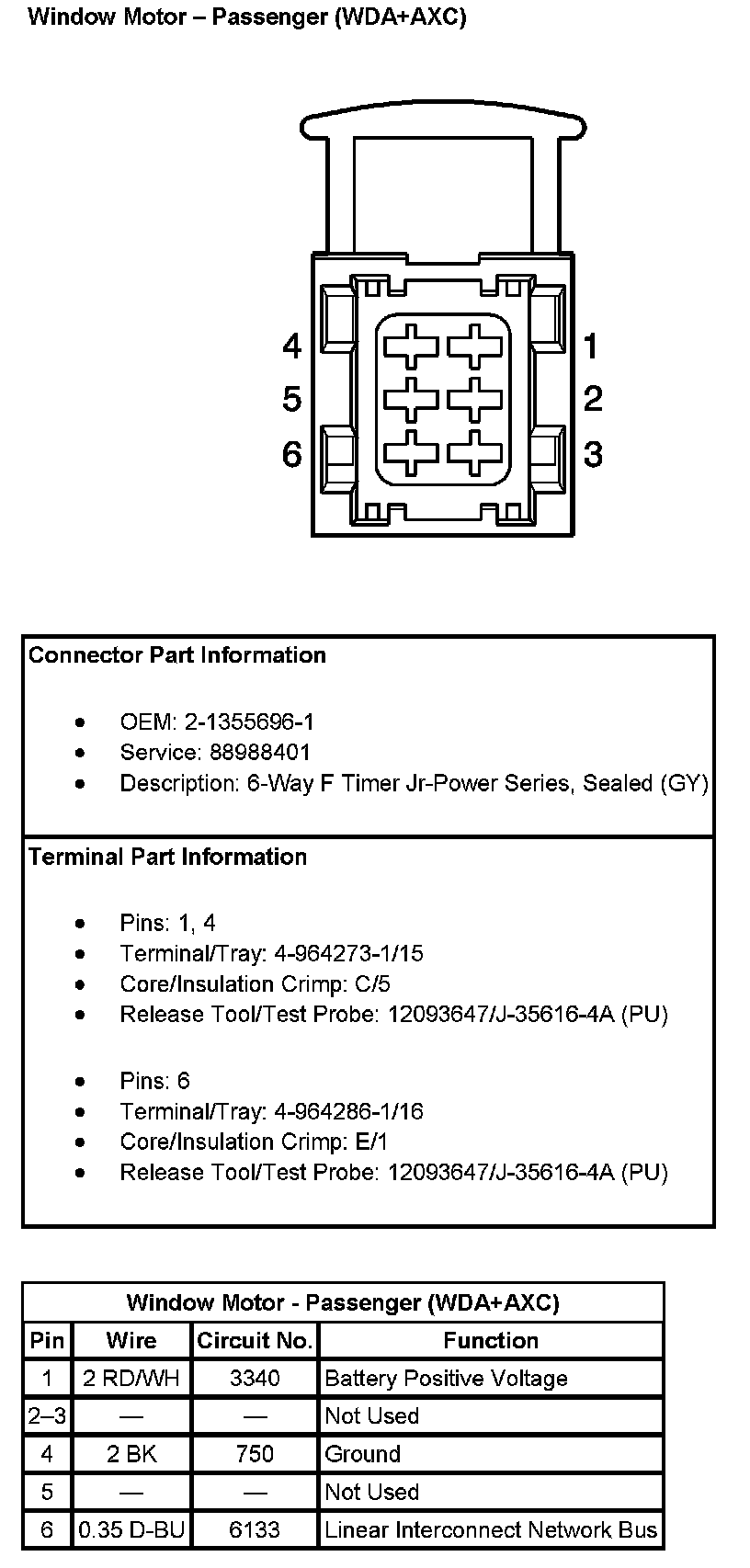

Window Motor - Passenger (With RPO Code WDA+AXC)
Window Motor - Passenger (With RPO Code WDA+AXC)
Window Motor - Passenger (With RPO Code WDA+AXC) Pin 1 To 6:
