Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch >> Seat Adjuster Switch - Passenger (With RPO Code AAQ)

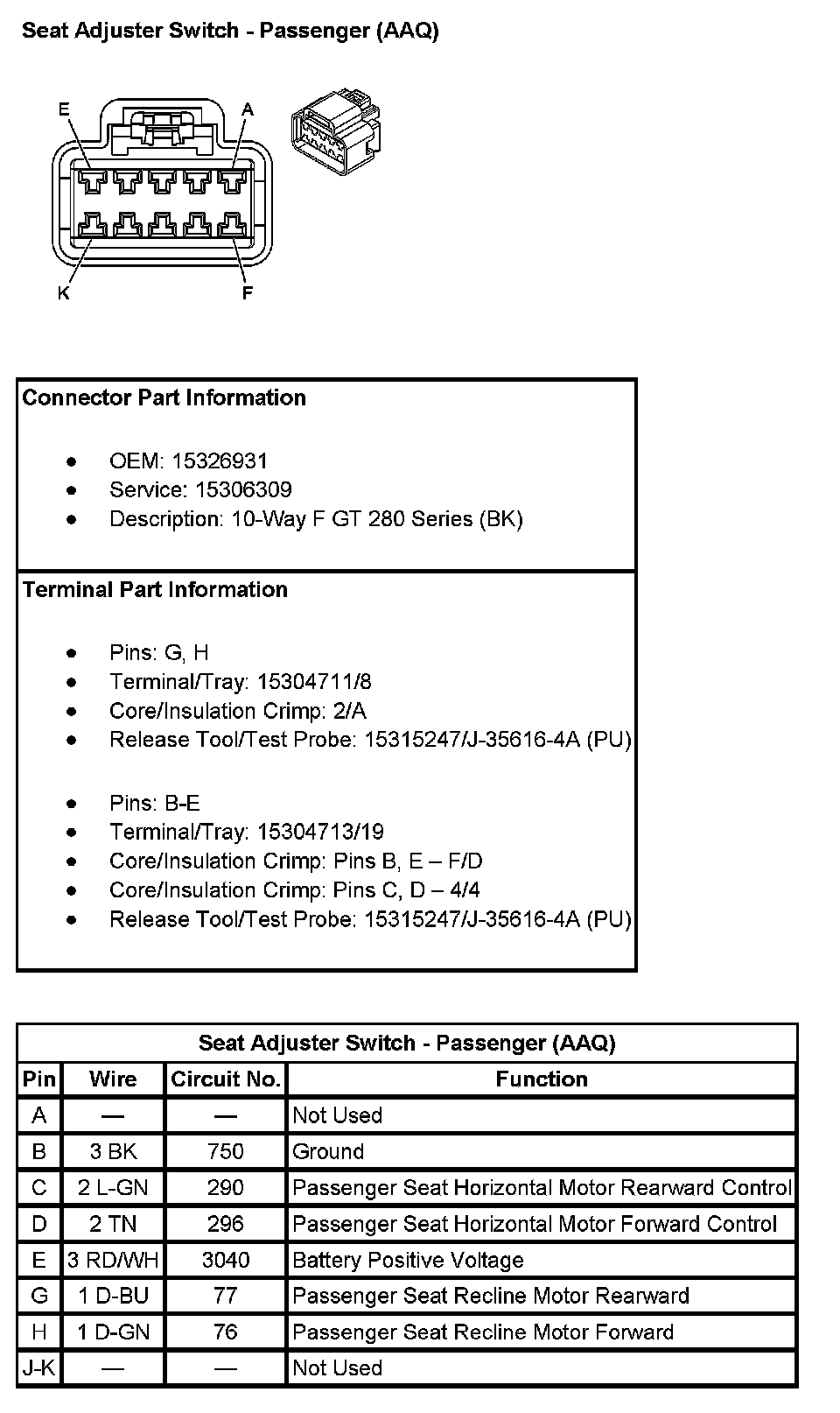

Seat Adjuster Switch - Passenger (With RPO Code AAQ)

Seat Adjuster Switch - Passenger (With RPO Code AAQ):
