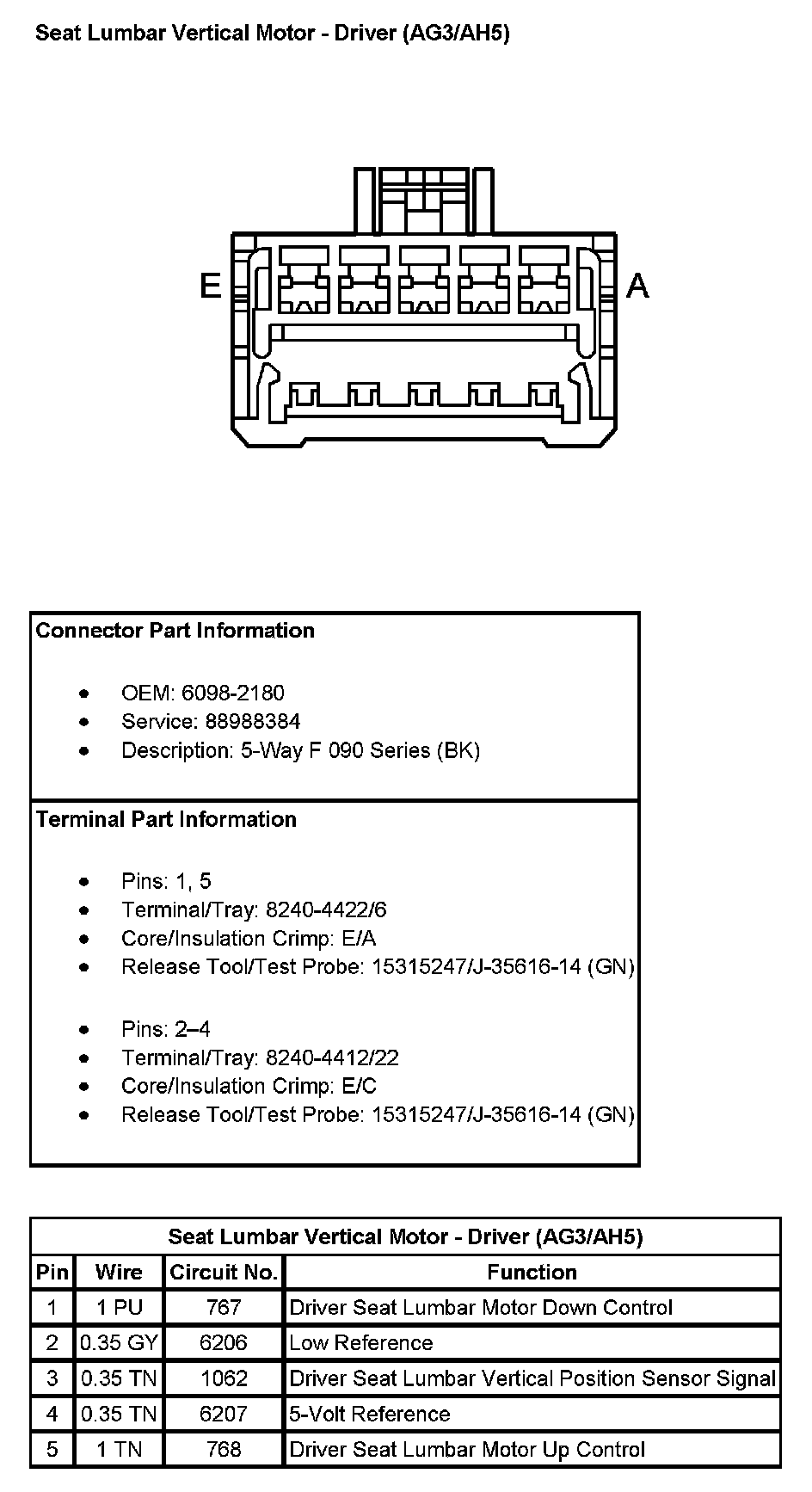

Seat Lumbar Vertical Motor - Driver (With RPO Code AG3/AH5)
Seat Lumbar Vertical Motor - Driver (With RPO Code AG3/AH5)
Seat Lumbar Vertical Motor - Driver (With RPO Code AG3/AH5) (Pin 1 To 5):
