LEMON Manuals
: Even more car manuals for everyone
Home
>>
GMC
>>
2007
>>
Acadia AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>
Outside Rearview Mirror - Passenger (With RPO Code DG6/DS3 + WDA/Z88)
Outside Rearview Mirror - Passenger (With RPO Code DG6/DS3 + WDA/Z88)

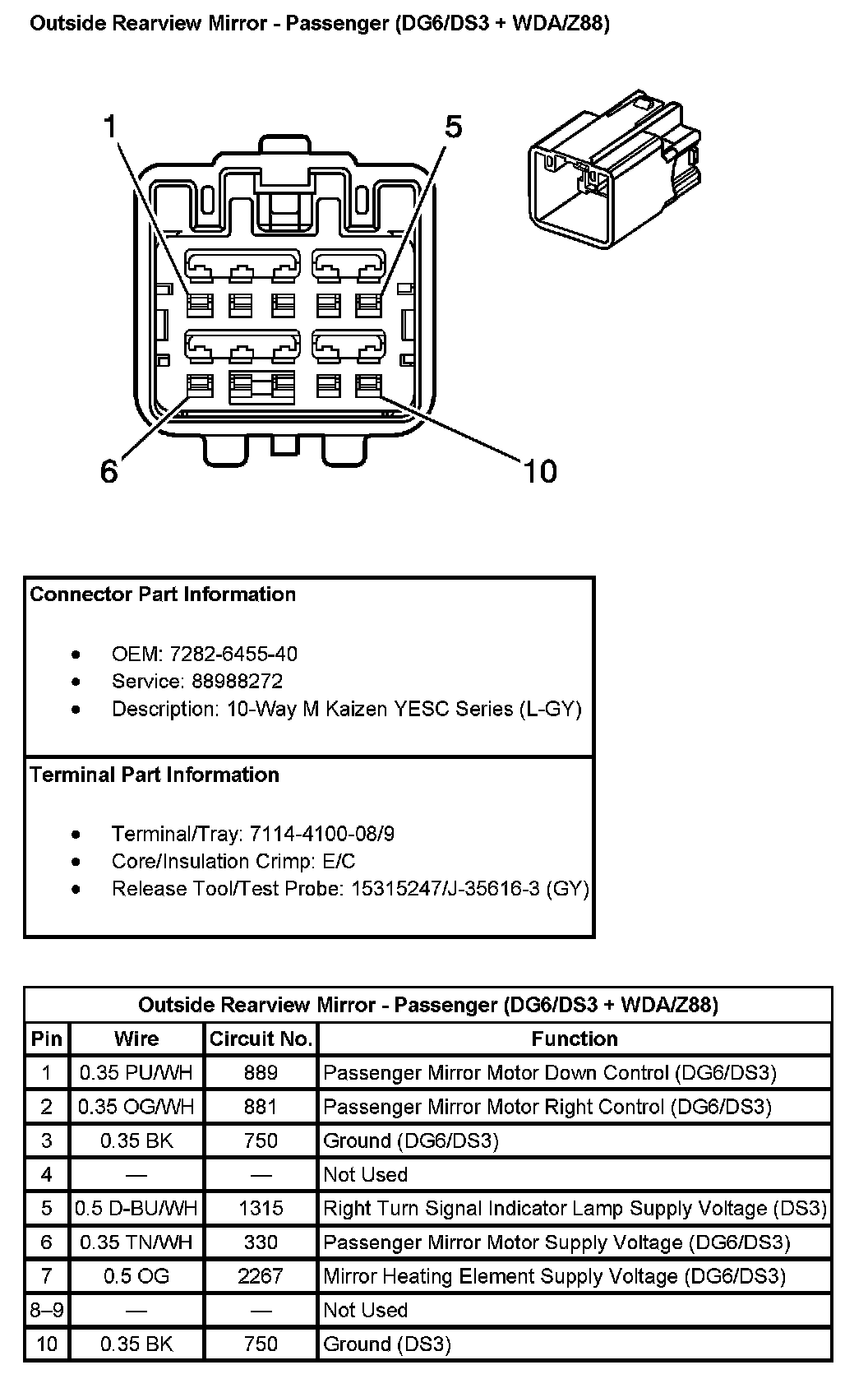

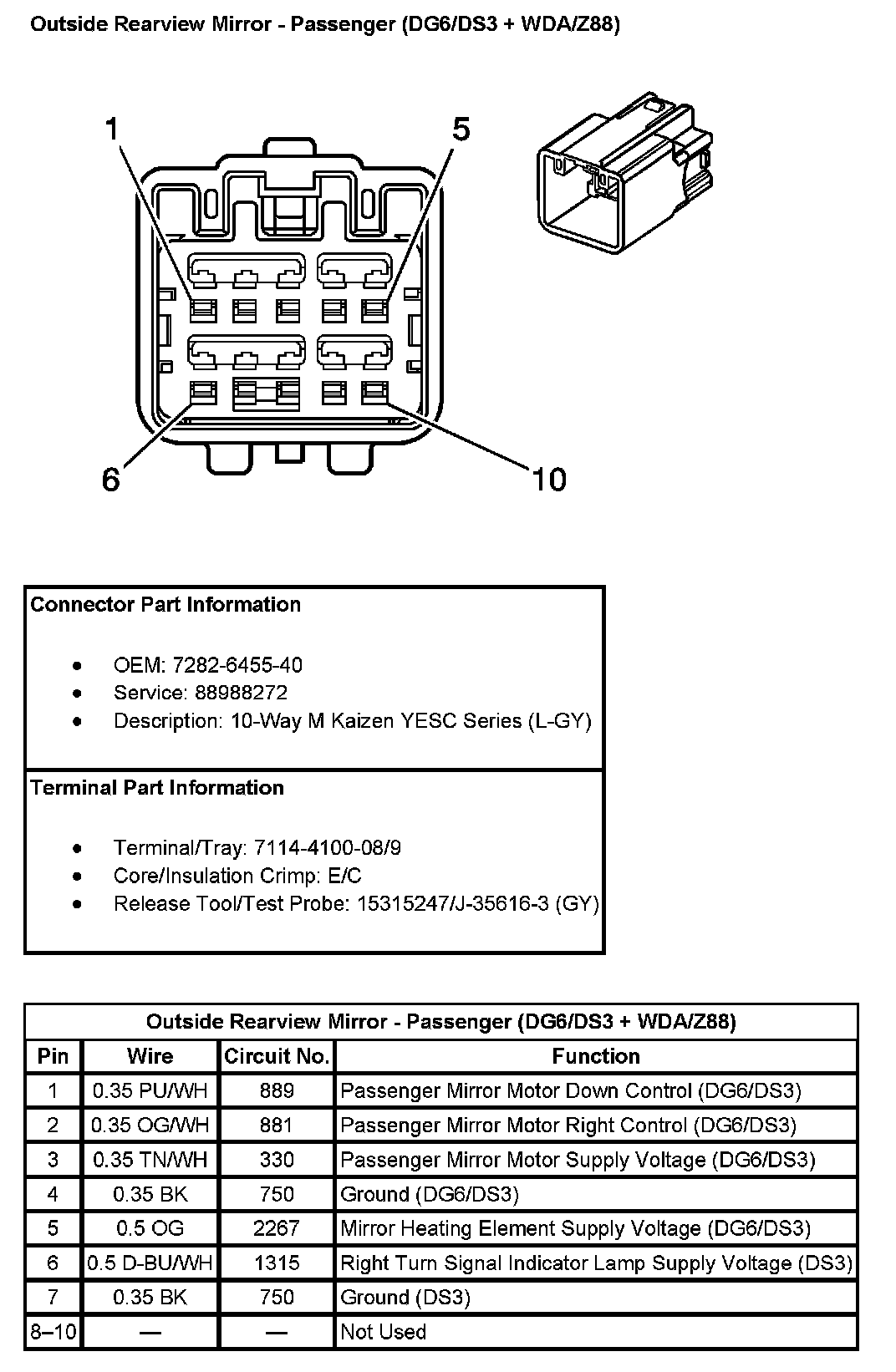

Outside Rearview Mirror - Passenger (With RPO Code DG6/DS3 + WDA/Z88) Pin 1 To 10:
Outside Rearview Mirror - Passenger (With RPO Code DG6/DS3 + WDA/Z88) Pin 1 To 10:
