Outside Rearview Mirror - Driver X2 (With RPO Code Z88+A45)

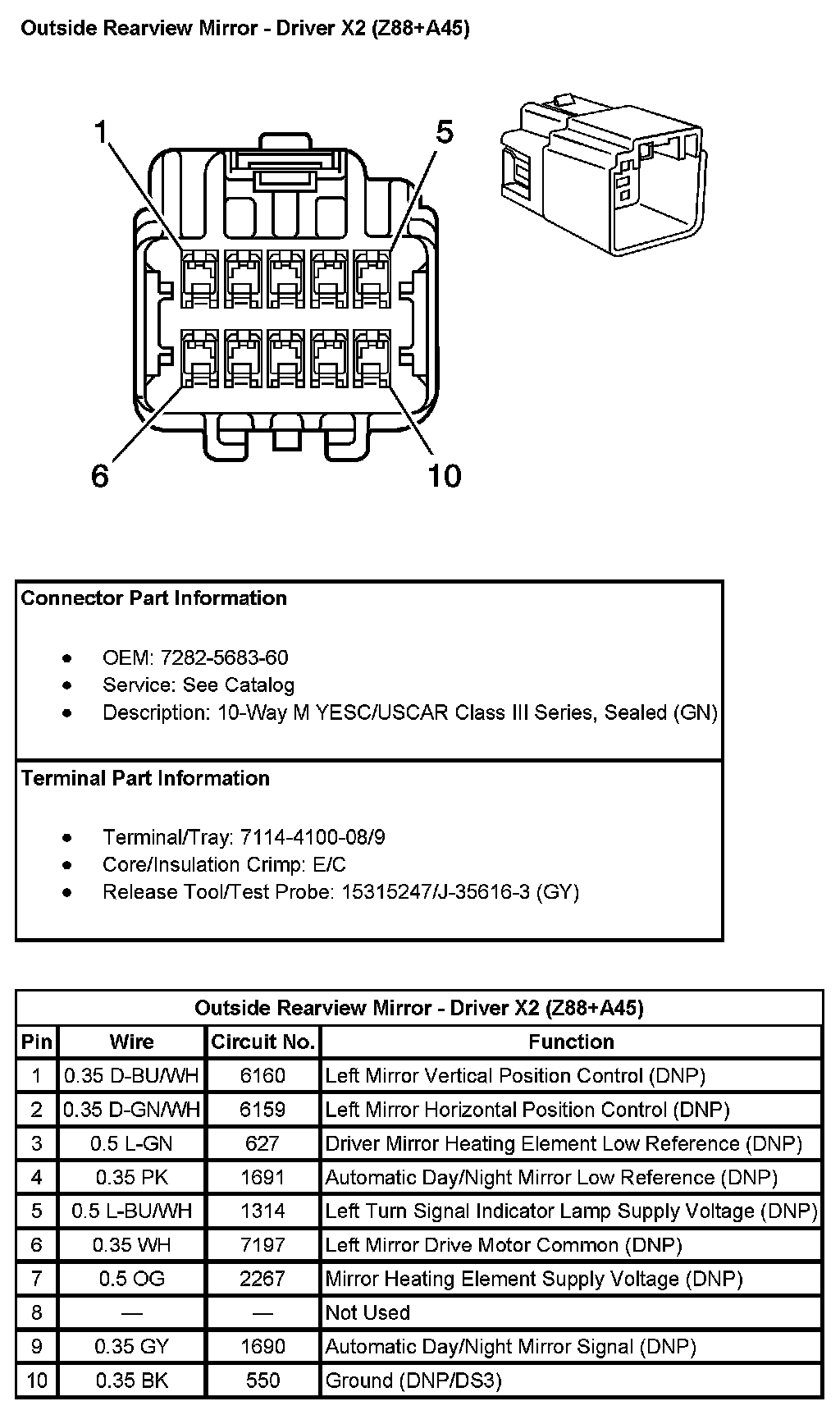

Outside Rearview Mirror - Driver X2 (With RPO Code Z88+A45) Pin 1 To 10:
