GMC
>>
2007
>>
Acadia AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>

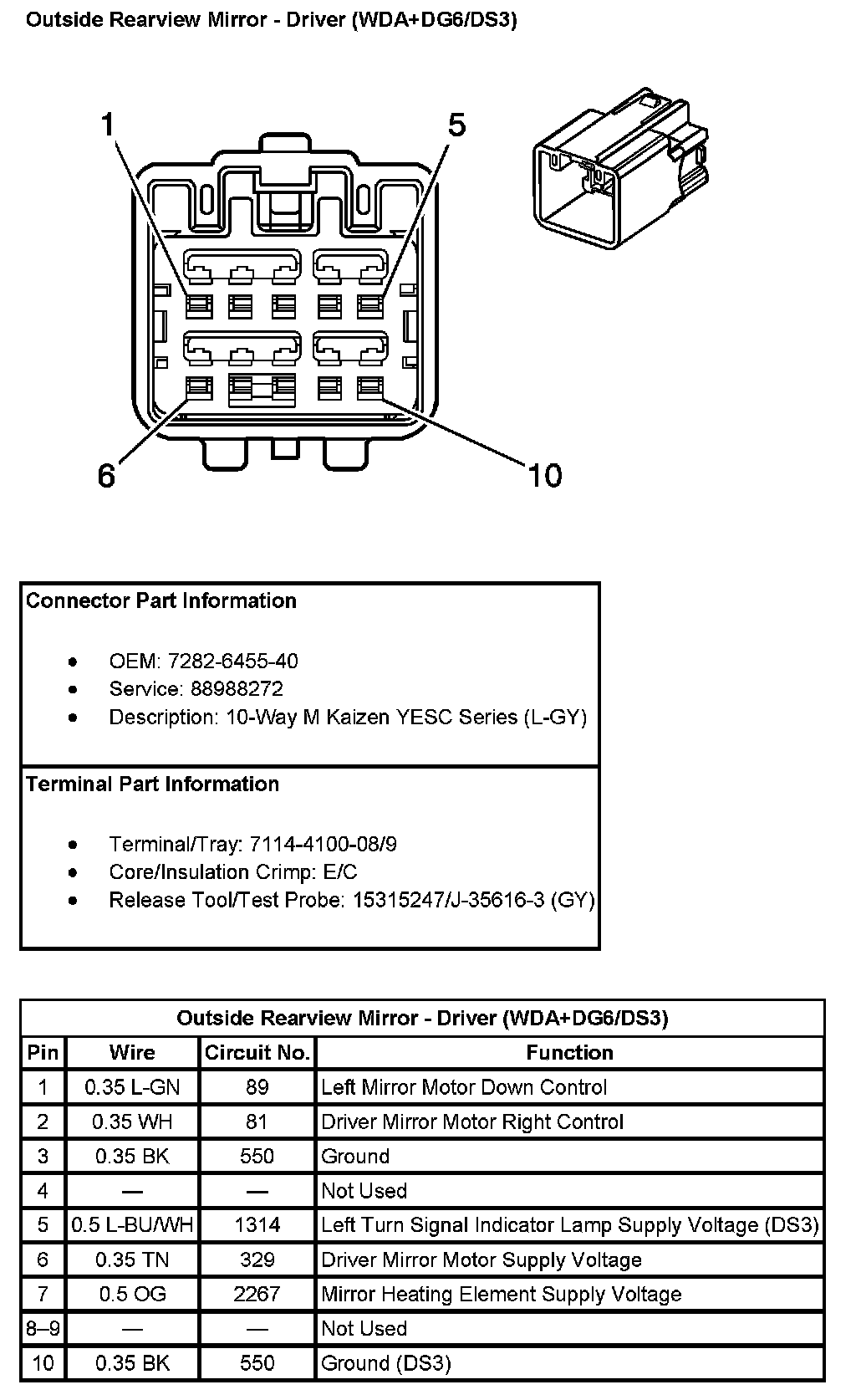

Outside Rearview Mirror - Driver (With RPO Code WDA+DG6/DS3)
Outside Rearview Mirror - Driver (With RPO Code WDA+DG6/DS3)
Outside Rearview Mirror - Driver (With RPO Code WDA+DG6/DS3) Pin 1 To 10:
