LEMON Manuals
: Even more car manuals for everyone
Home
>>
GMC
>>
2007
>>
Acadia AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Switch
>>

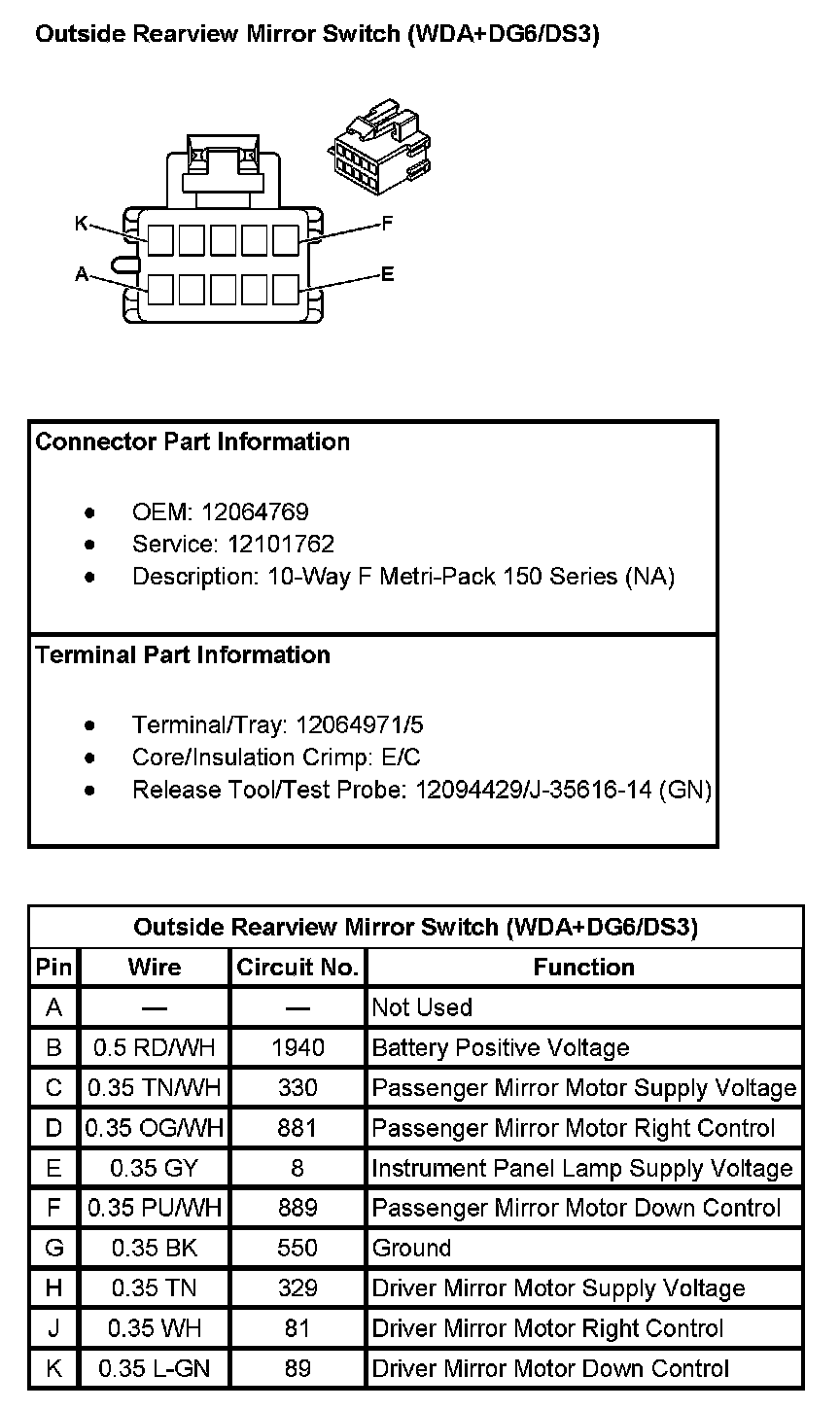

Outside Rearview Mirror Switch (With RPO Code WDA+DG6/DS3)
Outside Rearview Mirror Switch (With RPO Code WDA+DG6/DS3)
Outside Rearview Mirror Switch (With RPO Code WDA+DG6/DS3) Pin A To K:
