System Diagram



Displays and Gages Connector End Views

Analog Clock (W49)














Driver Information Center (DIC) Switch (WDA+UH9)














Driver Information Center (DIC) Switch (Z88+UH9)














Driver Information Center (DIC) Switch (W49+UH9)














Electronic Compass Module (Z88)














Engine Oil Pressure (EOP) Switch (LY7)

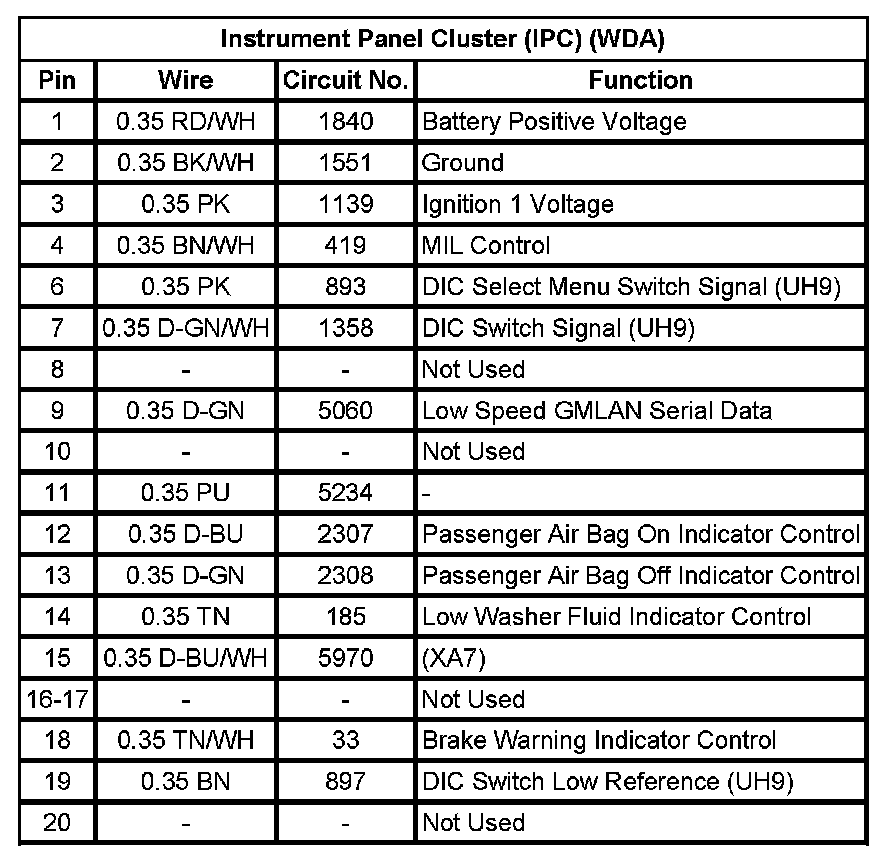

Instrument Panel Cluster (IPC) (WDA)

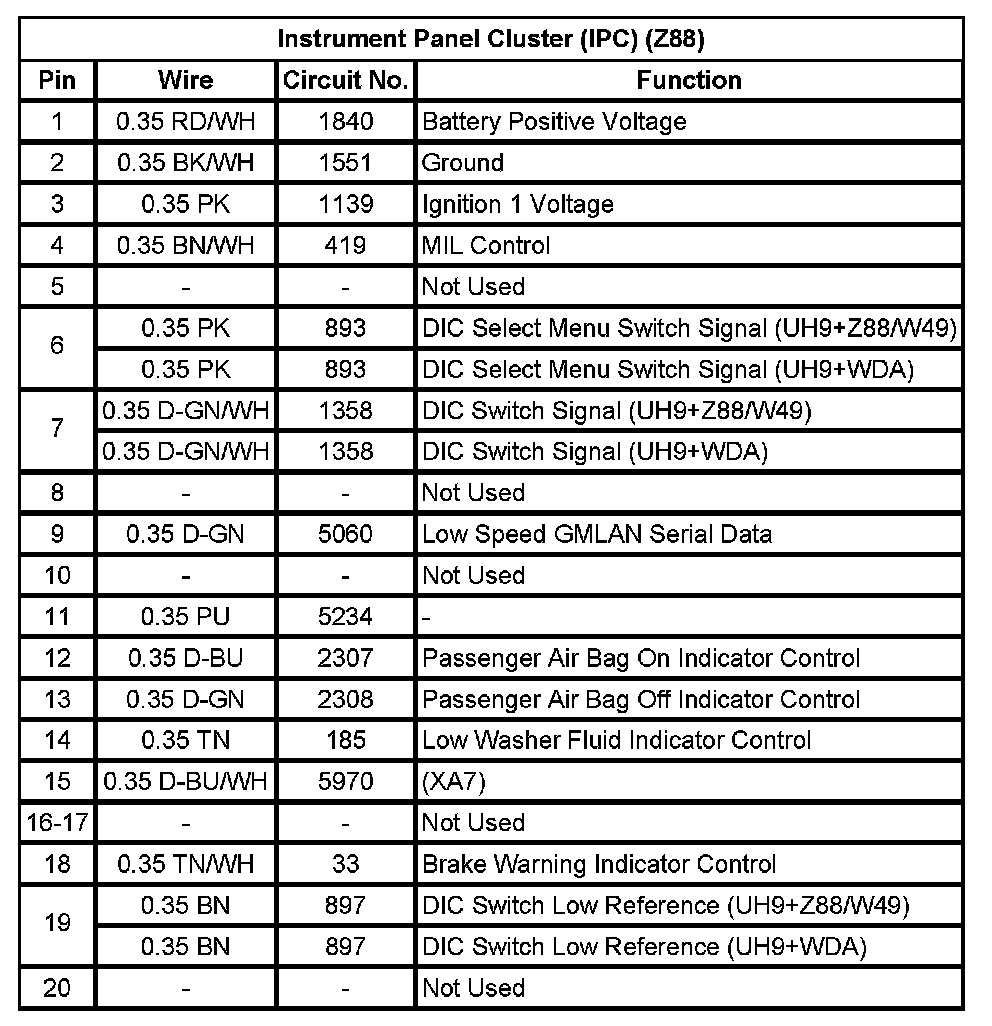

Instrument Panel Cluster (IPC) (Z88)
