Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> Headlamp Switch

Headlamp Switch

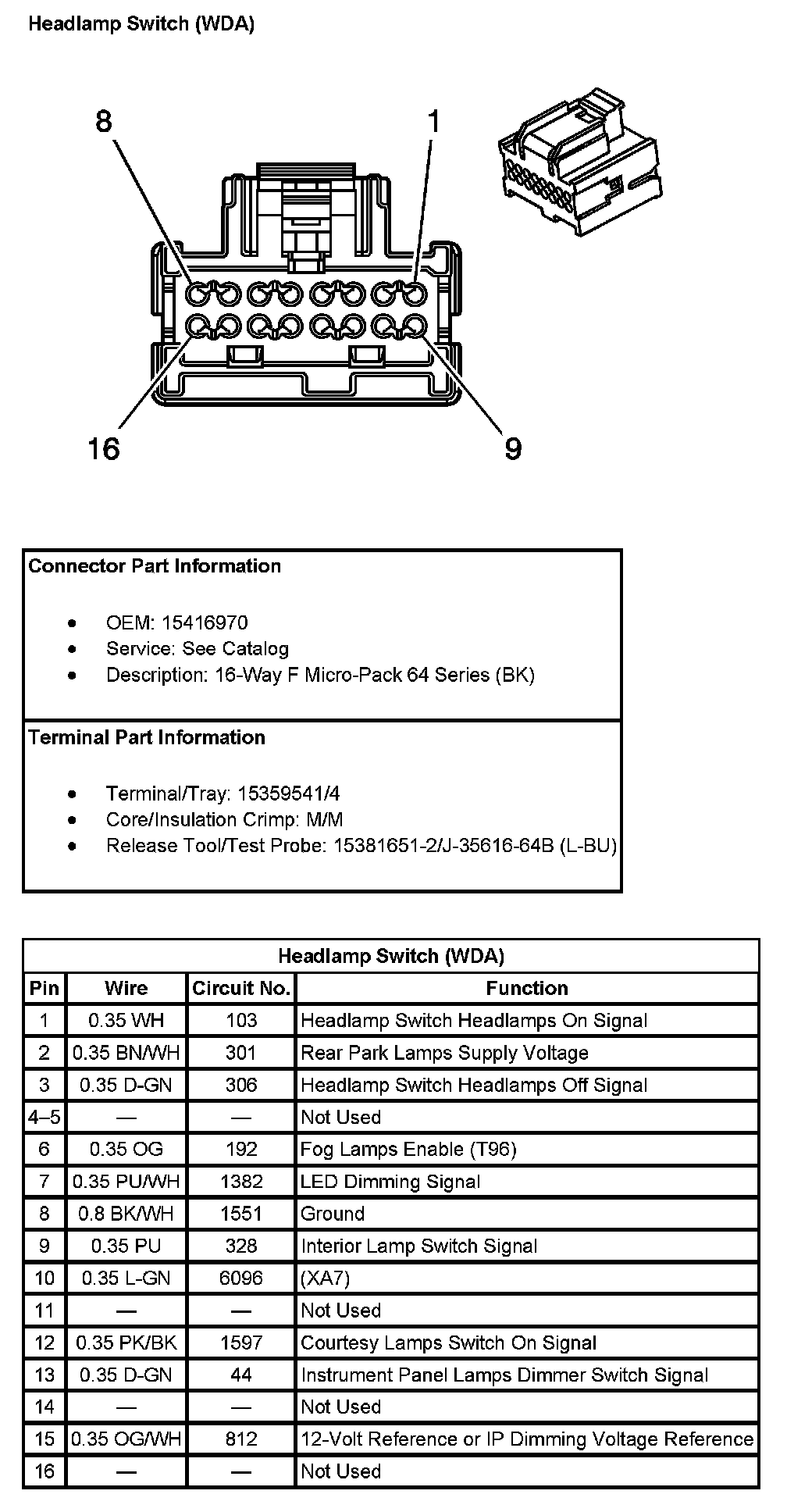

Headlamp Switch (With RPO Code WDA):



Headlamp Switch (With RPO Code Z88):
