X359

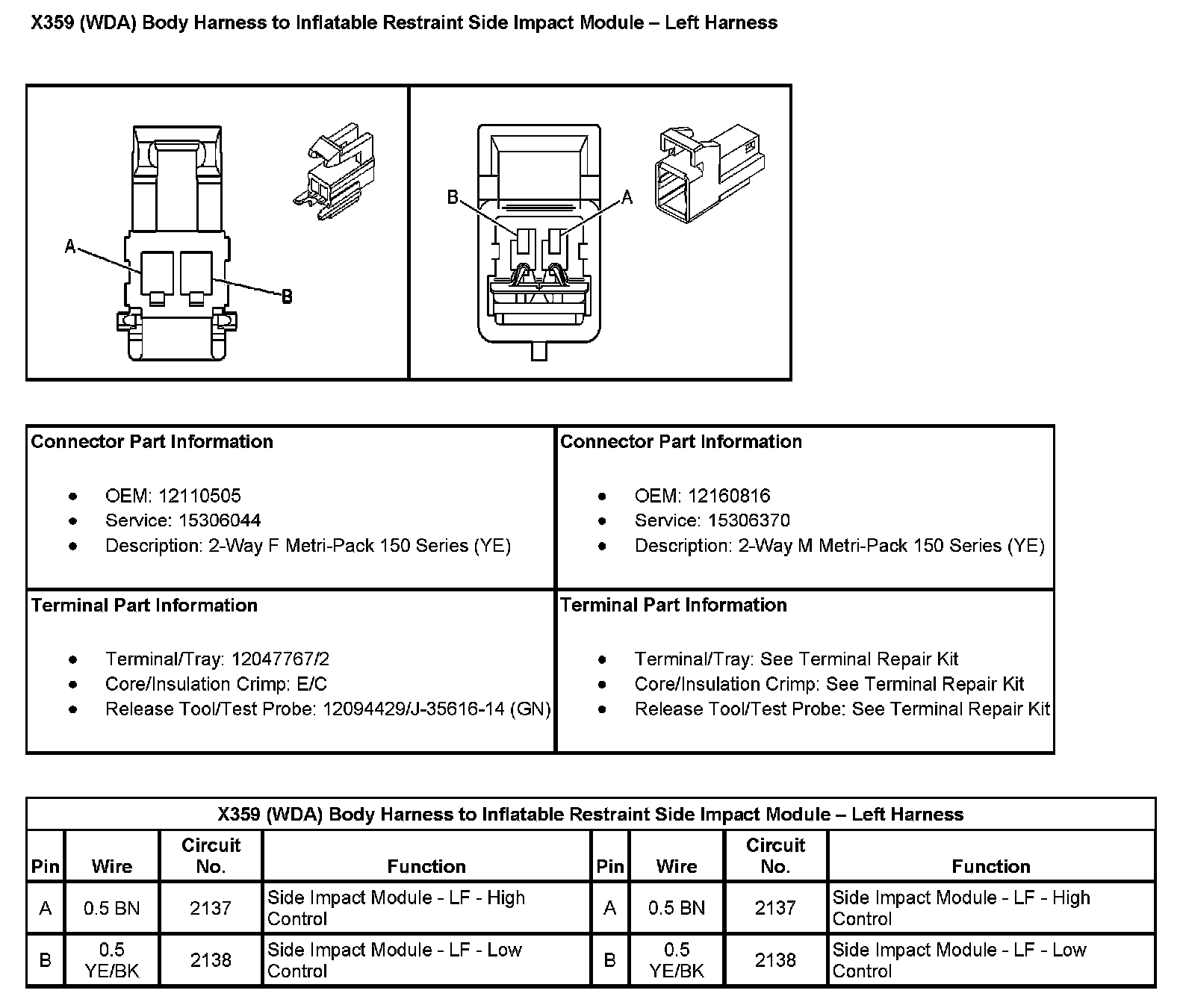

X359 (With RPO Code WDA) Body Harness To Inflatable Restraint Side Impact Module - Left Harness (Pin A To B):

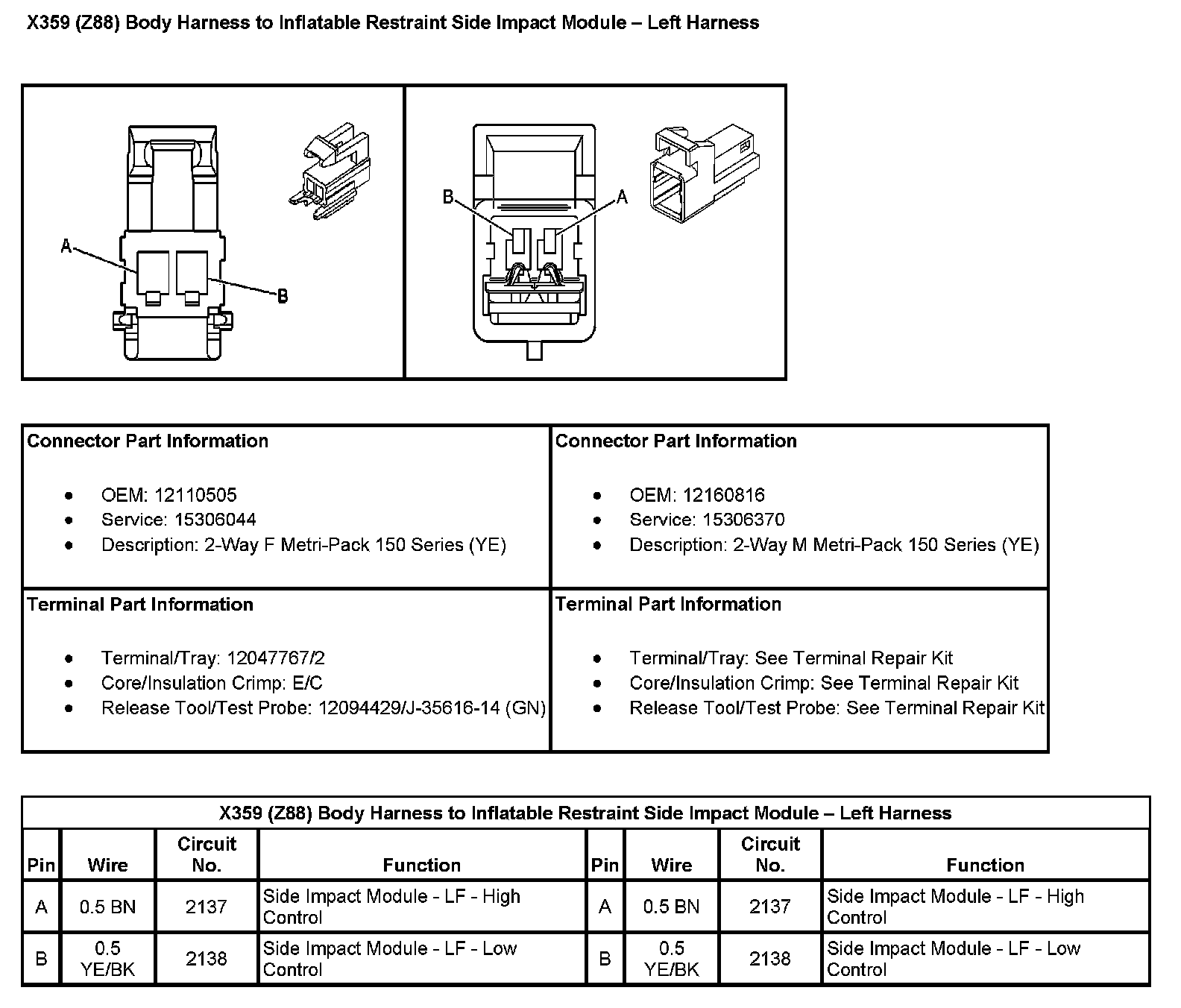

X359 (With RPO Code Z88) Body Harness To Inflatable Restraint Side Impact Module - Left Harness (Pin A To B):
