X305

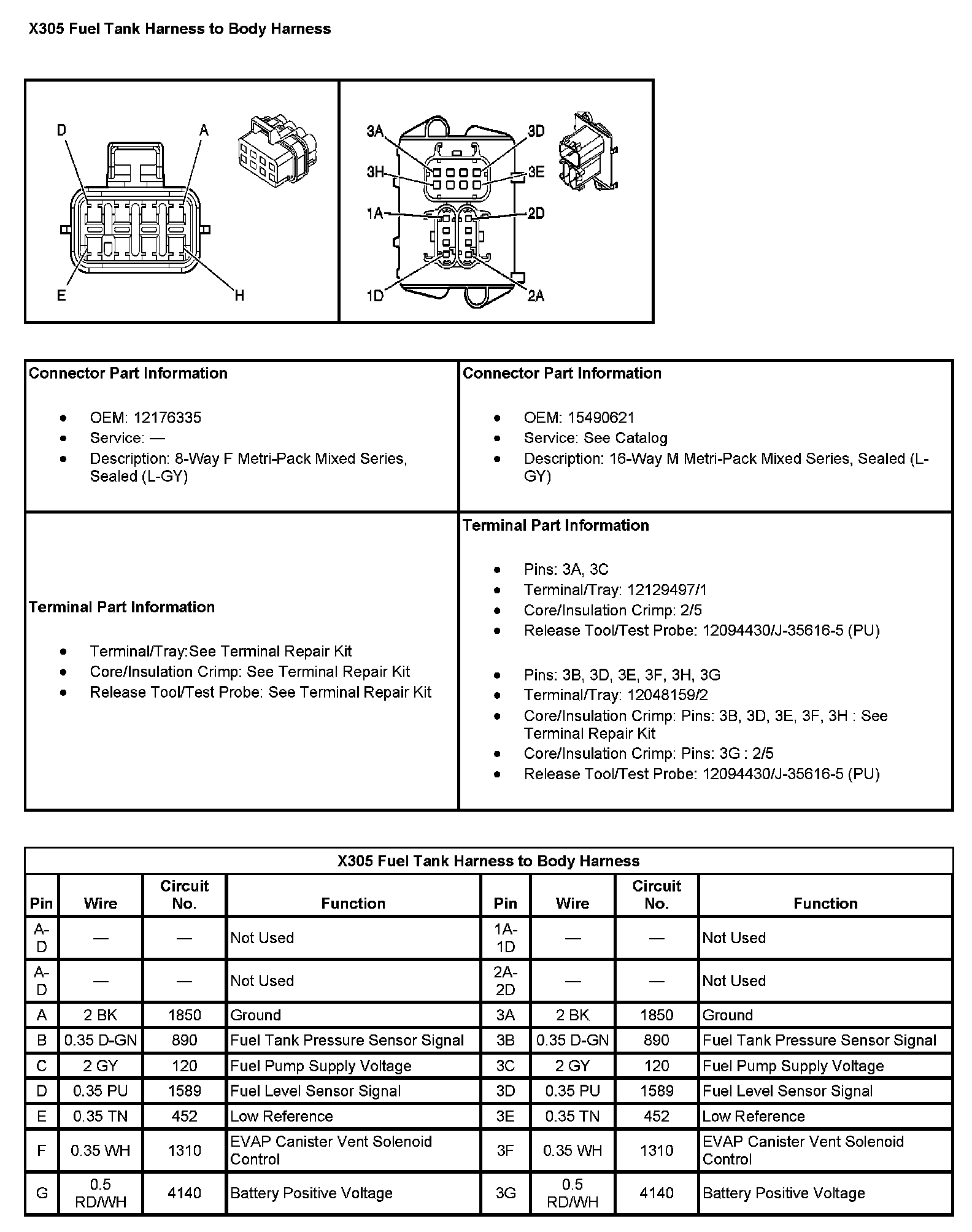

X305 Fuel Tank Harness To Body Harness (Pin A To G):
X305 Fuel Tank Harness To Body Harness (Pin H):
