Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> X200 - X299 >> X240

X240

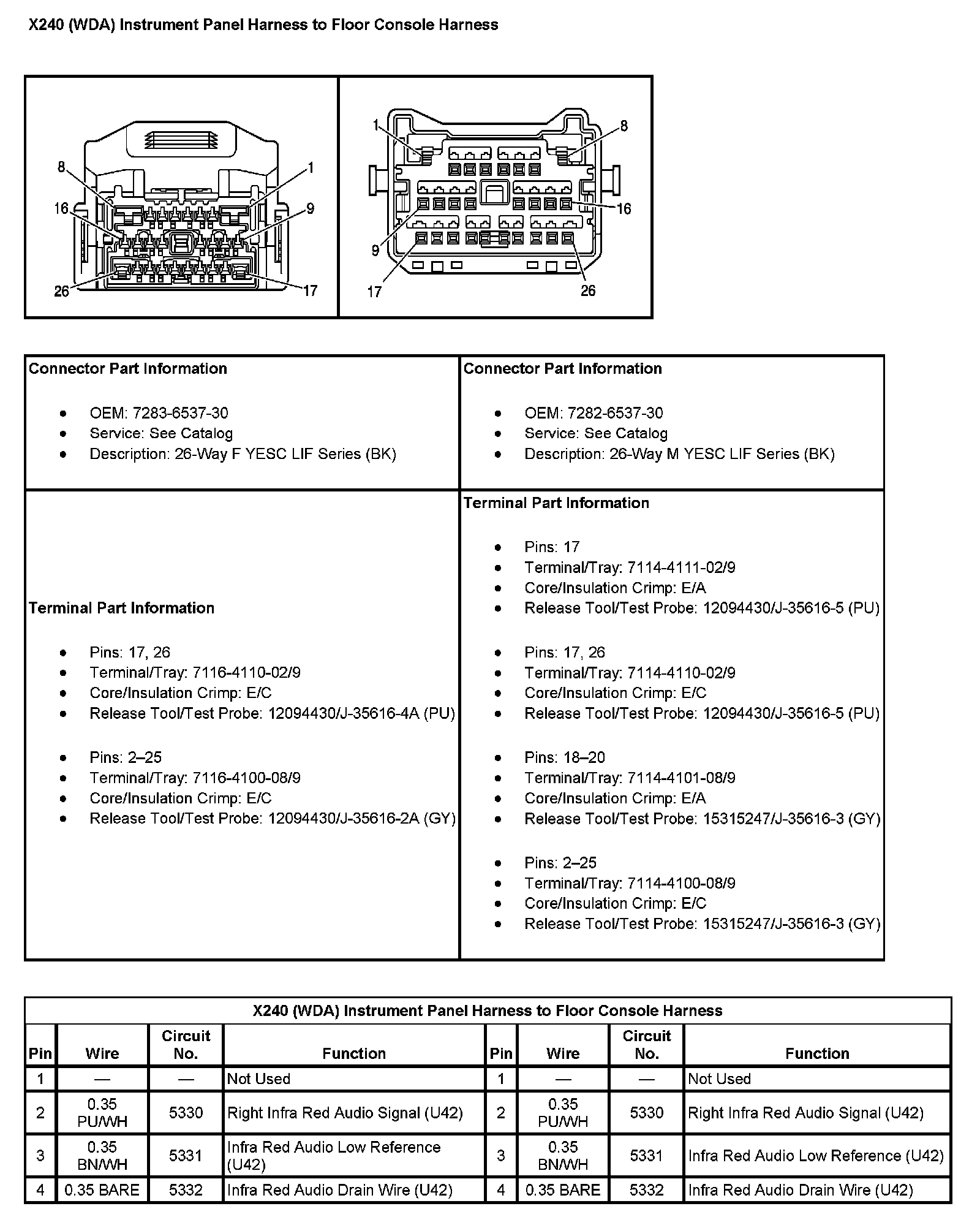

X240 (With RPO Code WDA) Instrument Panel Harness To Floor Console Harness (Pin 1 To 4):

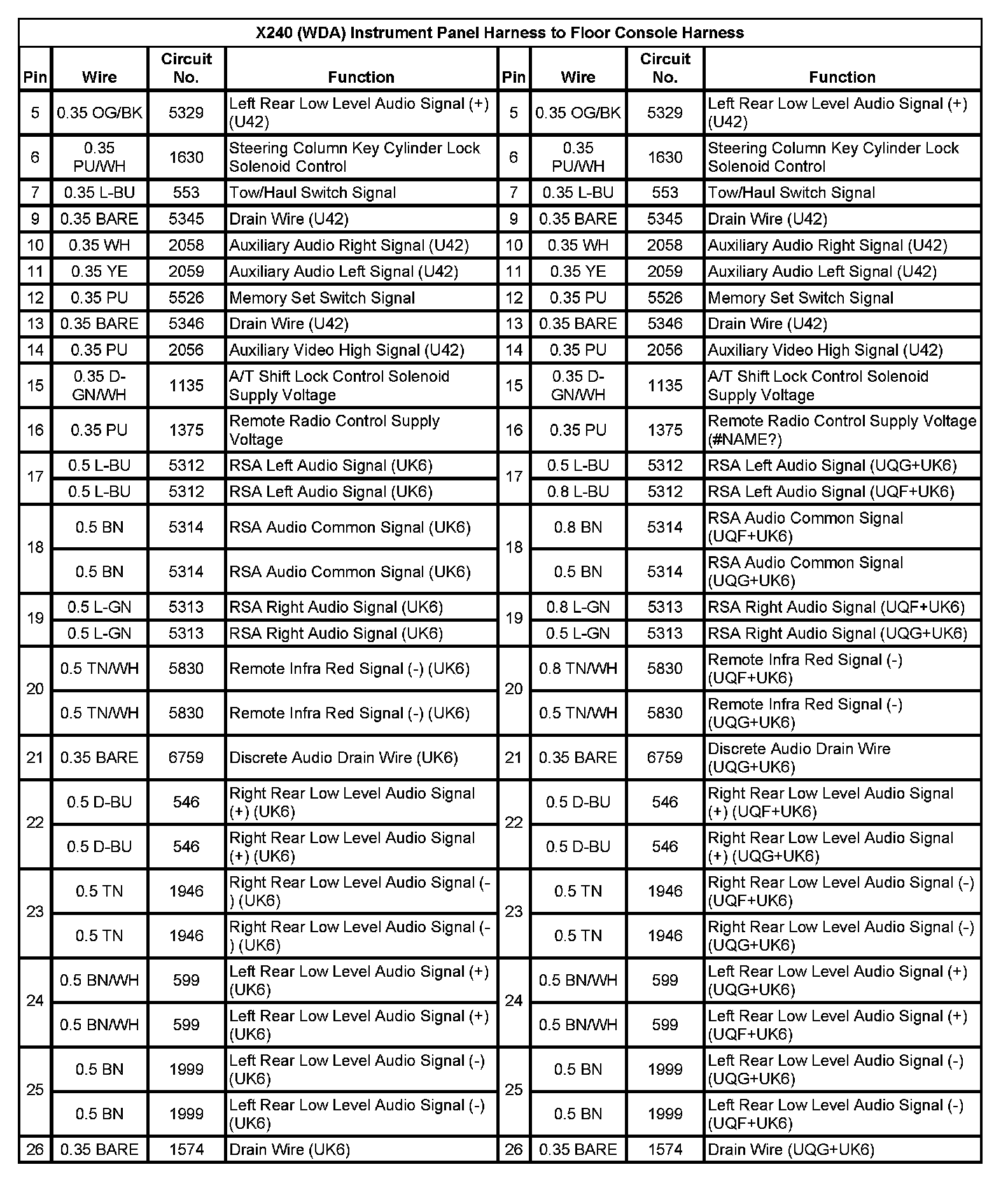

X240 (With RPO Code WDA) Instrument Panel Harness To Floor Console Harness (Pin 5 To 26):

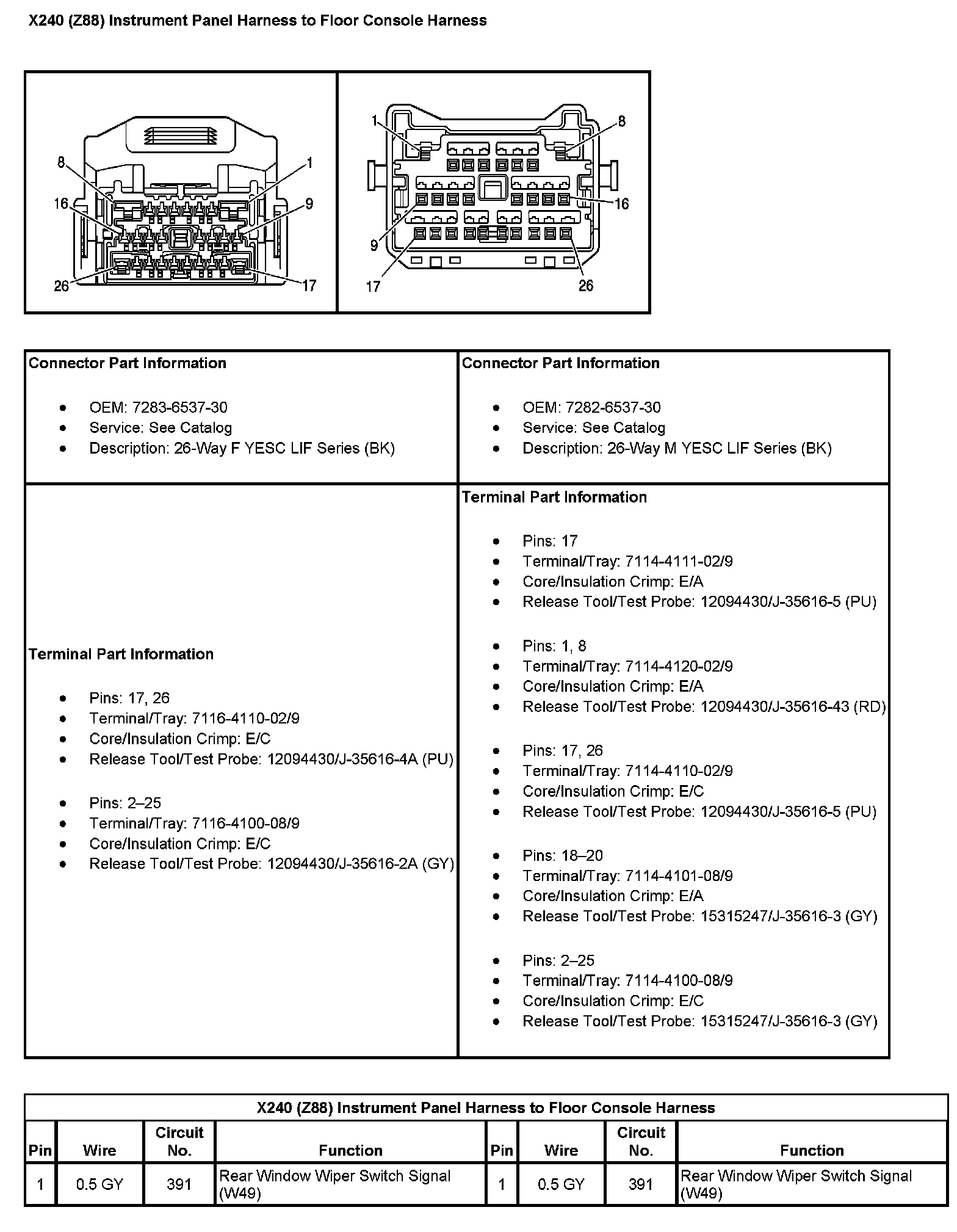

X240 (With RPO Code Z88) Instrument Panel Harness To Floor Console Harness (Pin 1):

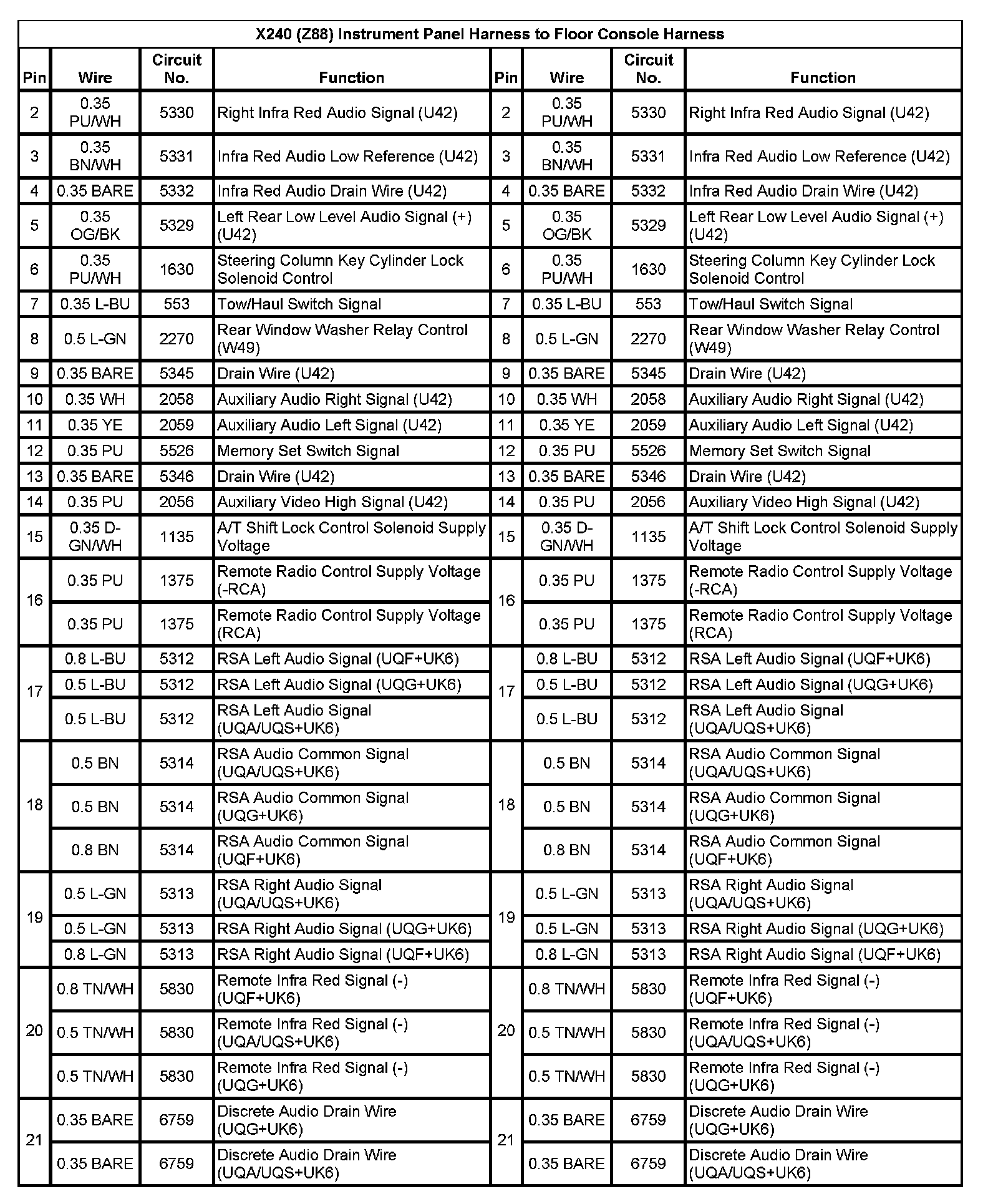

X240 (With RPO Code Z88) Instrument Panel Harness To Floor Console Harness (Pin 2 To 21):

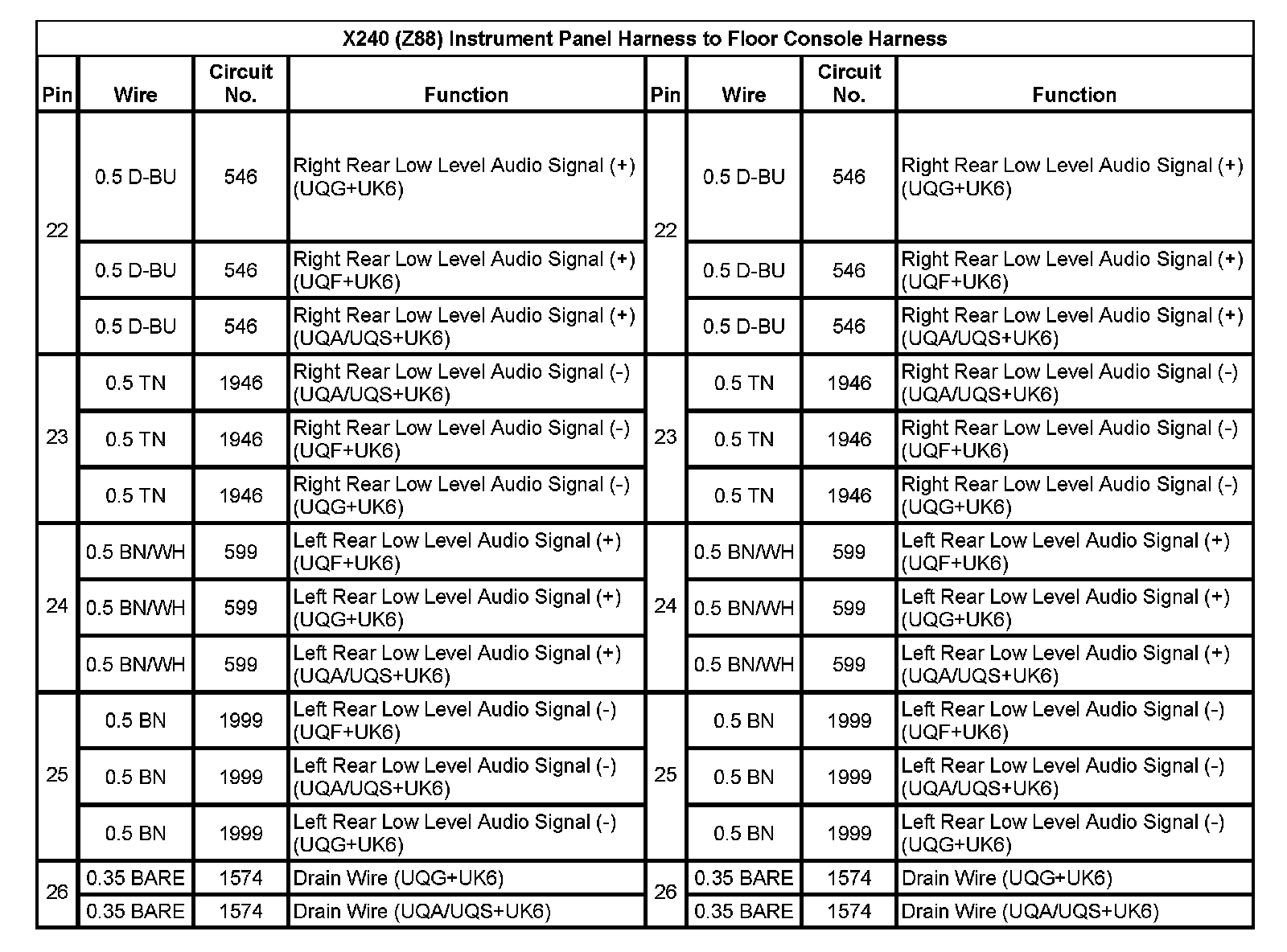

X240 (With RPO Code Z88) Instrument Panel Harness To Floor Console Harness (Pin 22 To 26):
