X216

X216 (With RPO Code WDA+U42) Instrument Panel Harness To Headliner Harness (Pin 1 To 13):



X216 (With RPO Code WDA+U42) Instrument Panel Harness To Headliner Harness (Pin 14 To 20):

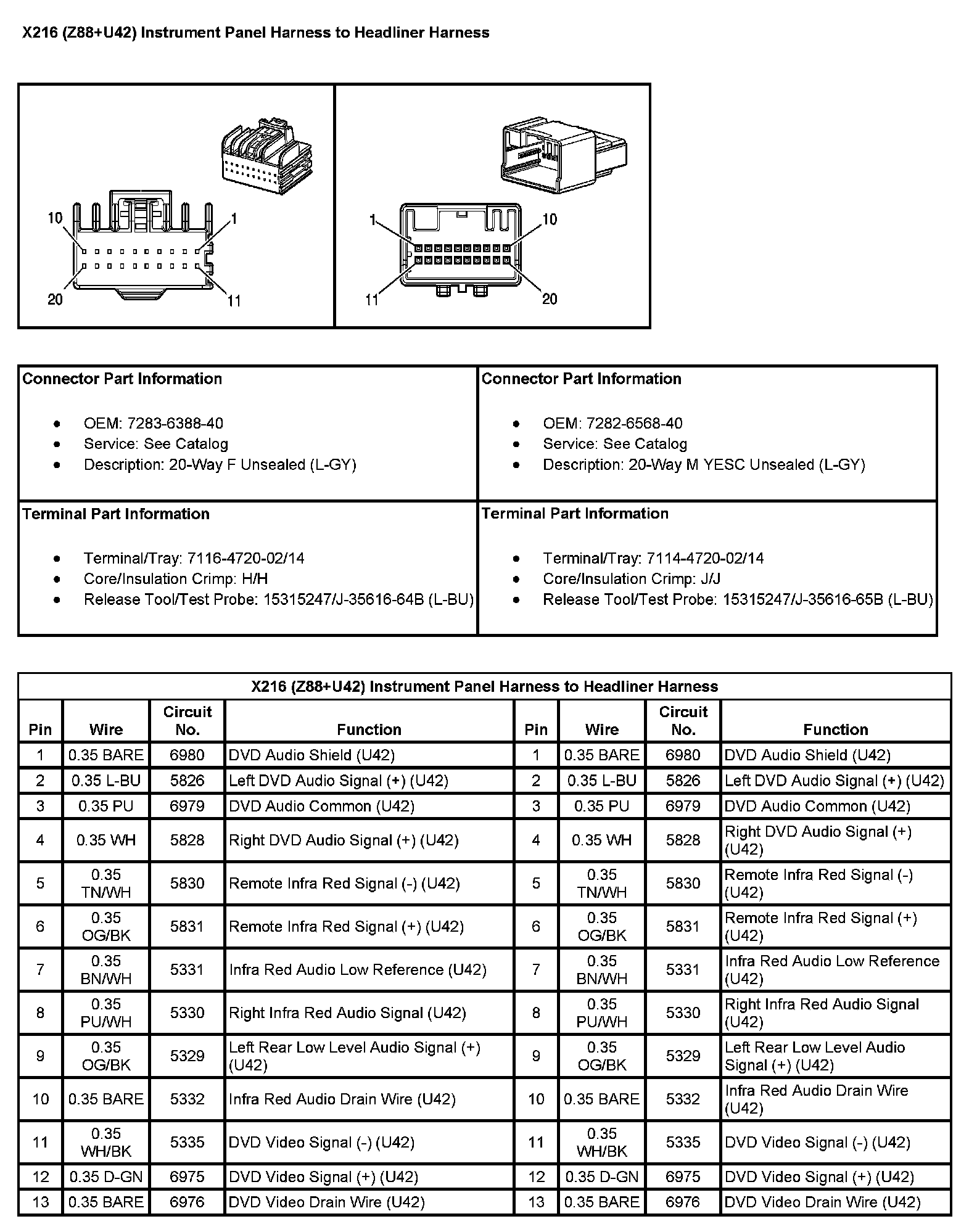

X216 (With RPO Code Z88+U42) Instrument Panel Harness To Headliner Harness (Pin 1 To 13):

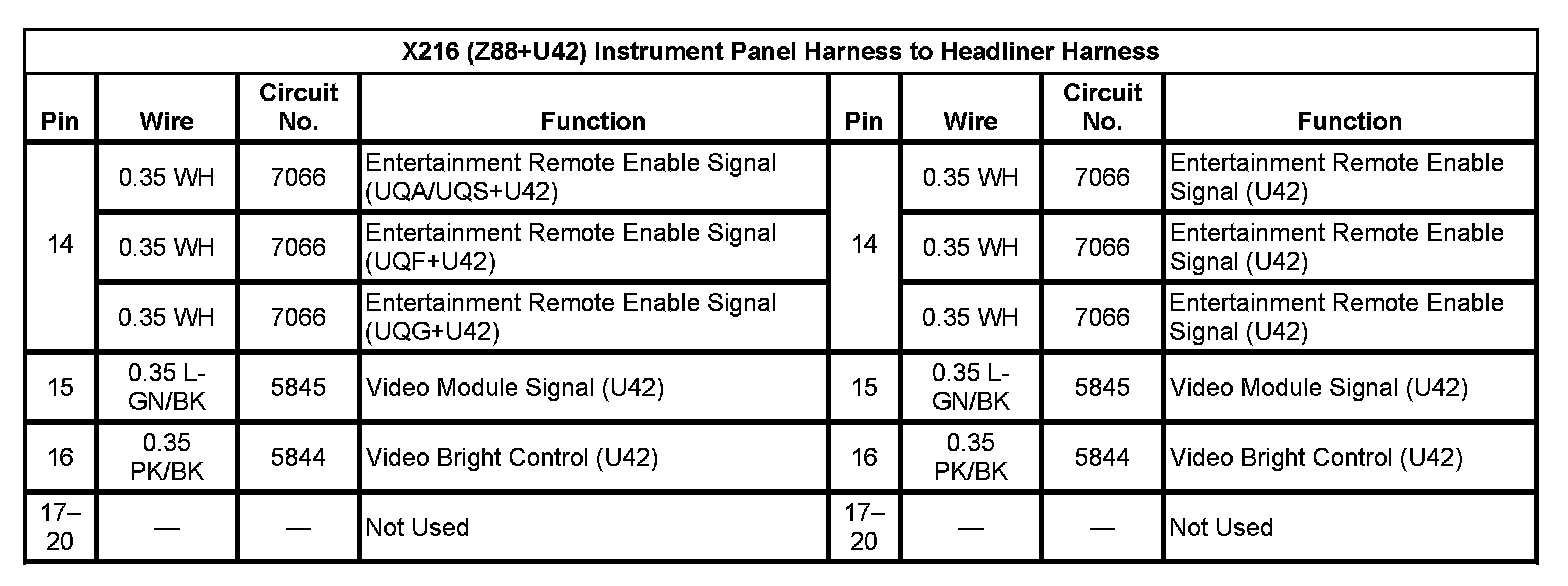

X216 (With RPO Code Z88+U42) Instrument Panel Harness To Headliner Harness (Pin 14 To 20):
