Camshaft Position (CMP) Sensor - Intake Bank 2 (With RPO Code LY7)
Camshaft Position (CMP) Sensor - Intake Bank 2 (With RPO Code LY7)

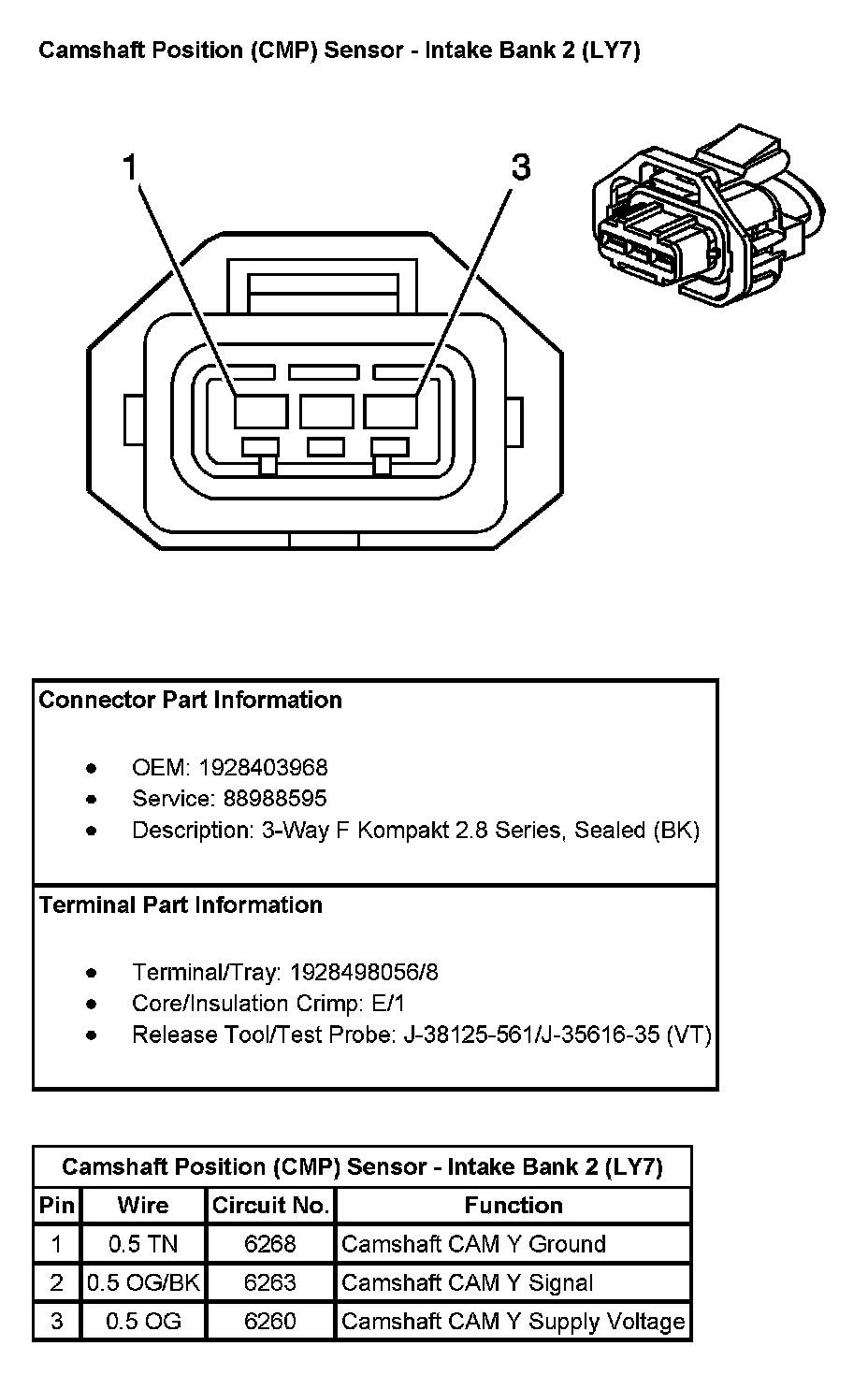

Camshaft Position (CMP) Sensor - Intake Bank 2 (With RPO Code LY7):
