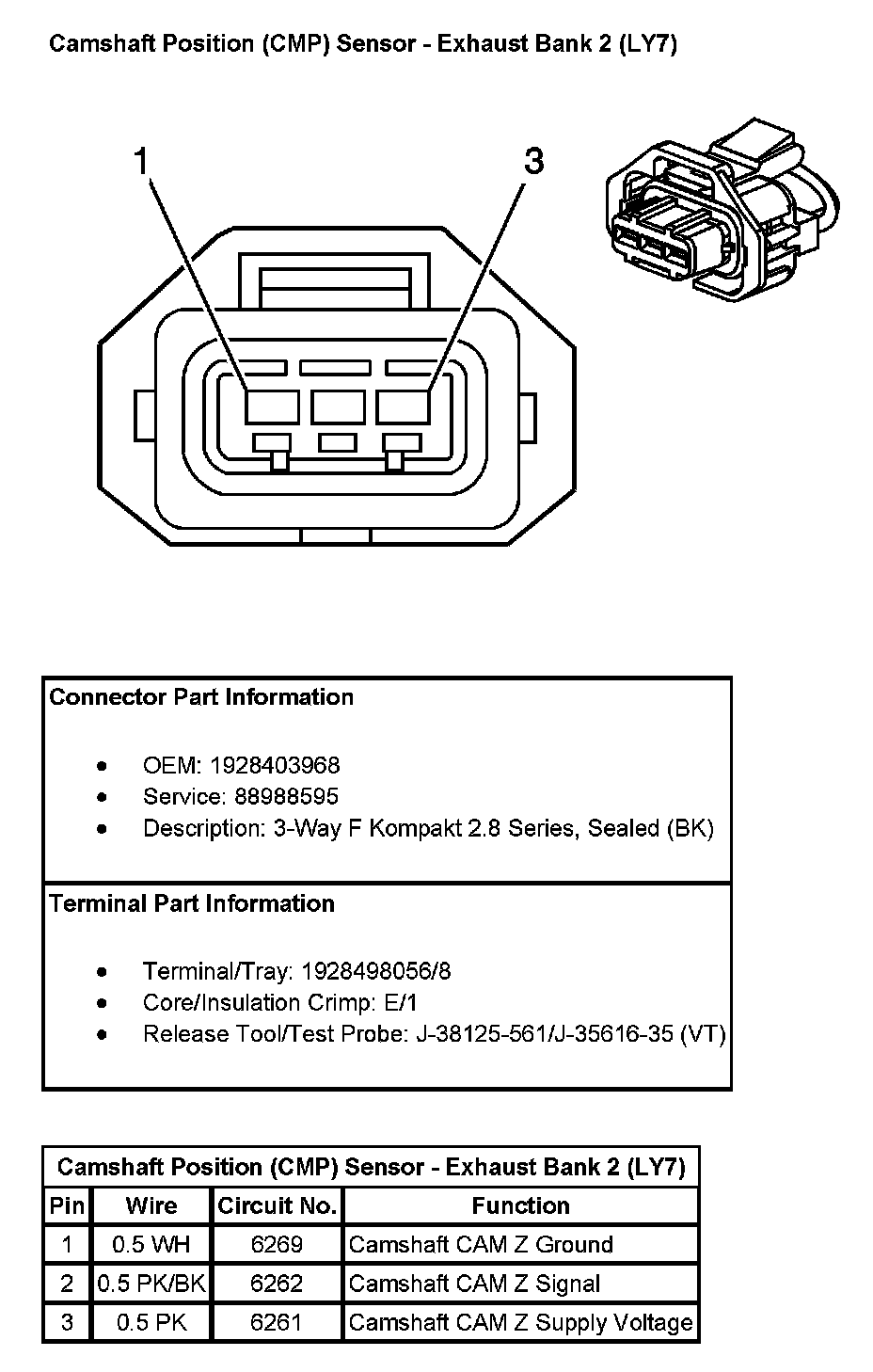

Camshaft Position (CMP) Sensor - Exhaust Bank 2 (With RPO Code LY7)
Camshaft Position (CMP) Sensor - Exhaust Bank 2 (With RPO Code LY7)
Camshaft Position (CMP) Sensor - Exhaust Bank 2 (With RPO Code LY7):
