Radio/Stereo



Entertainment/Communication Connector End Views

Digital Radio Receiver (WDA+U2K)














Digital Radio Receiver (Z88+U2K)

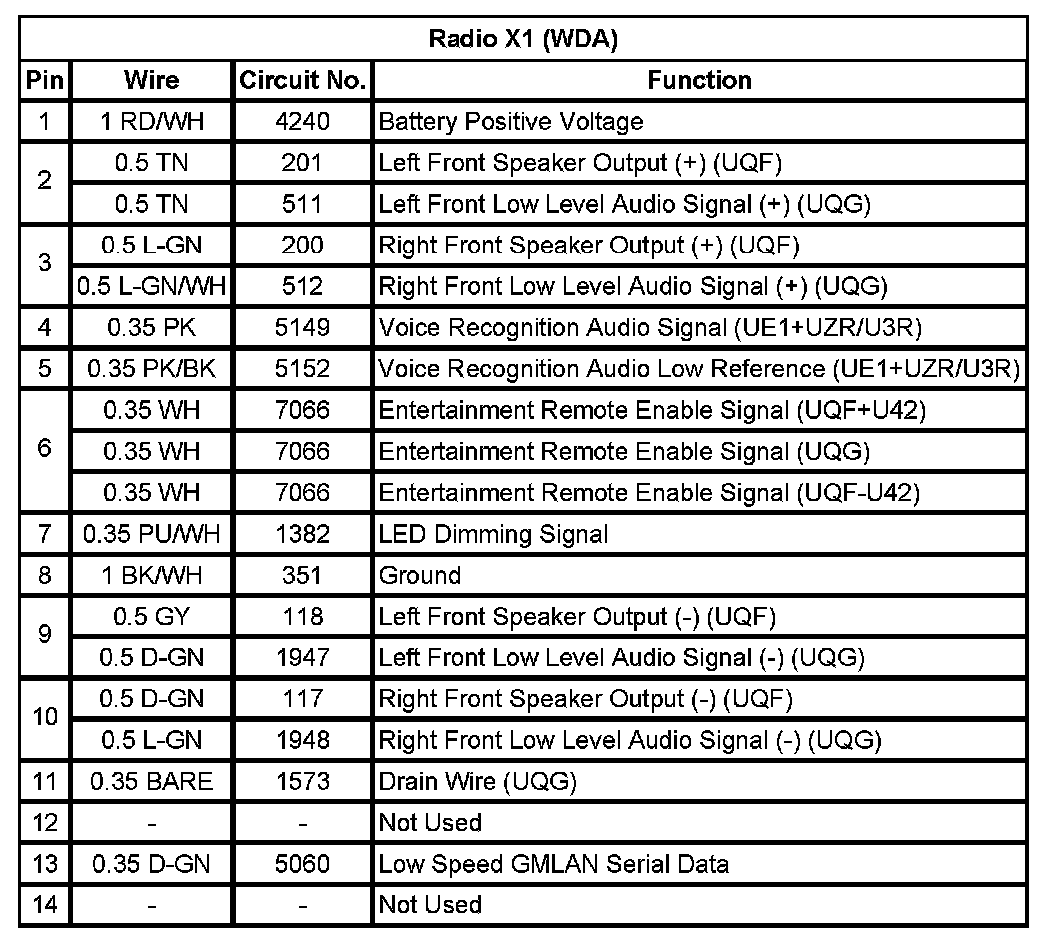

Radio X1 (WDA)

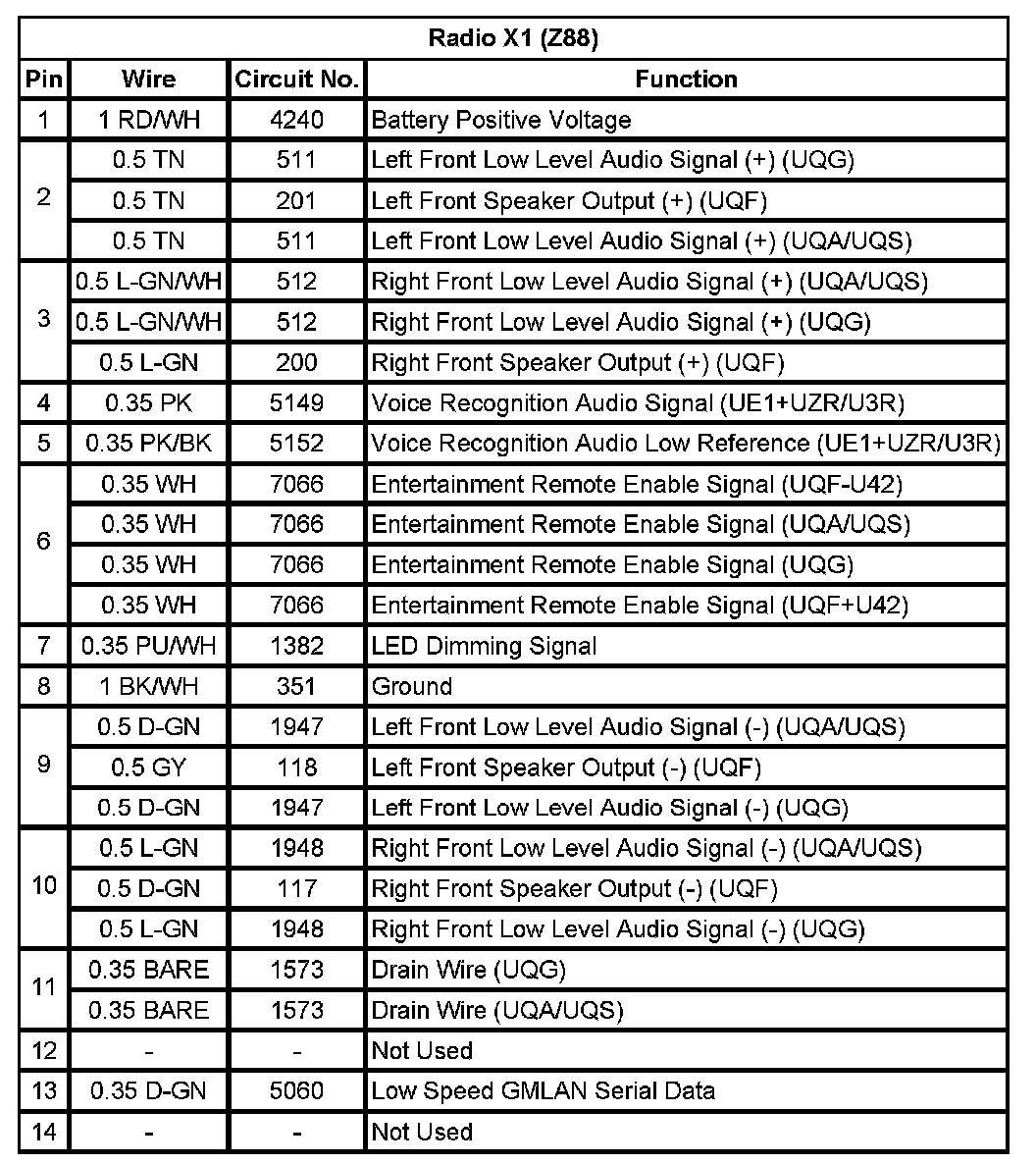

Radio X1 (Z88)

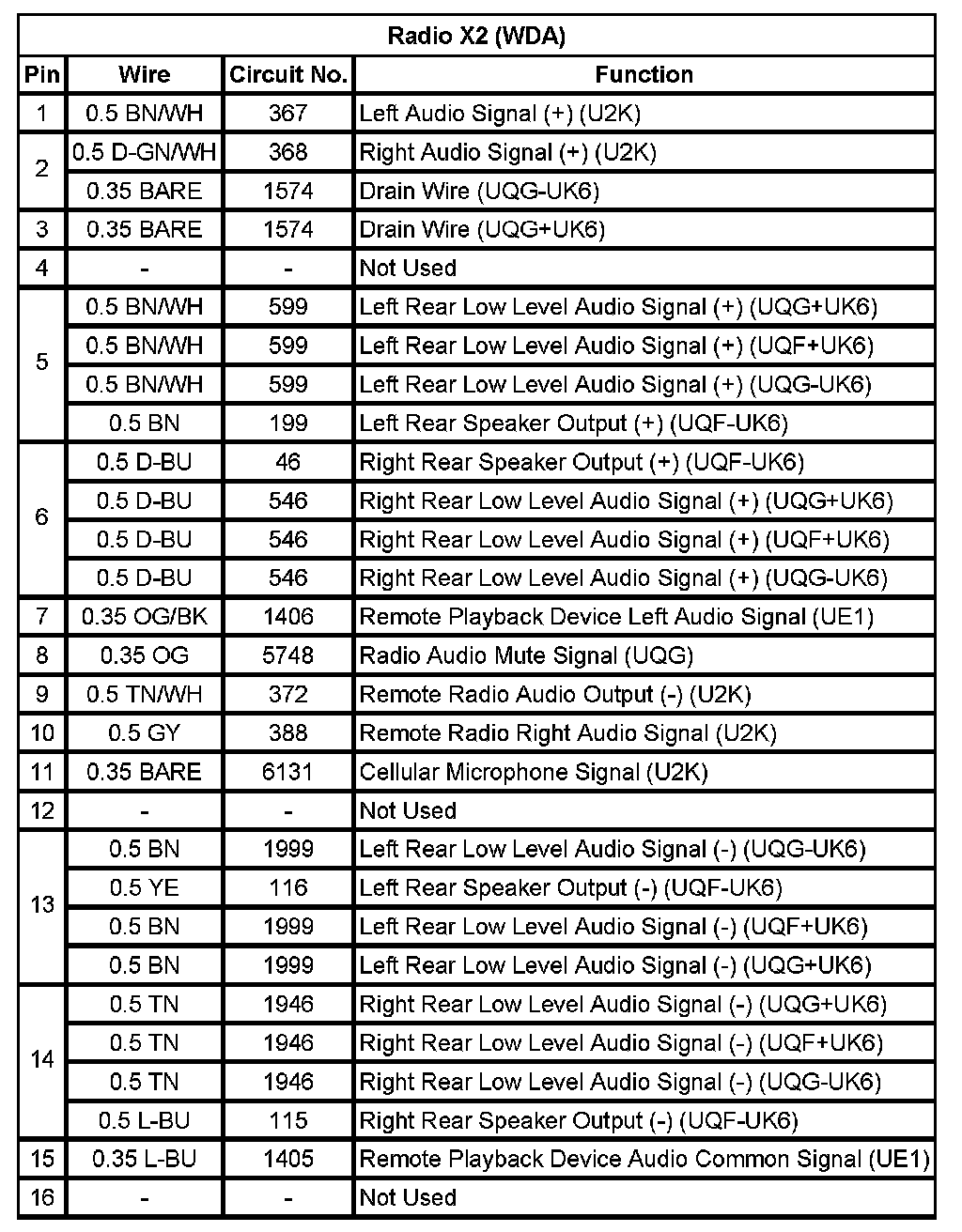

Radio X2 (WDA)

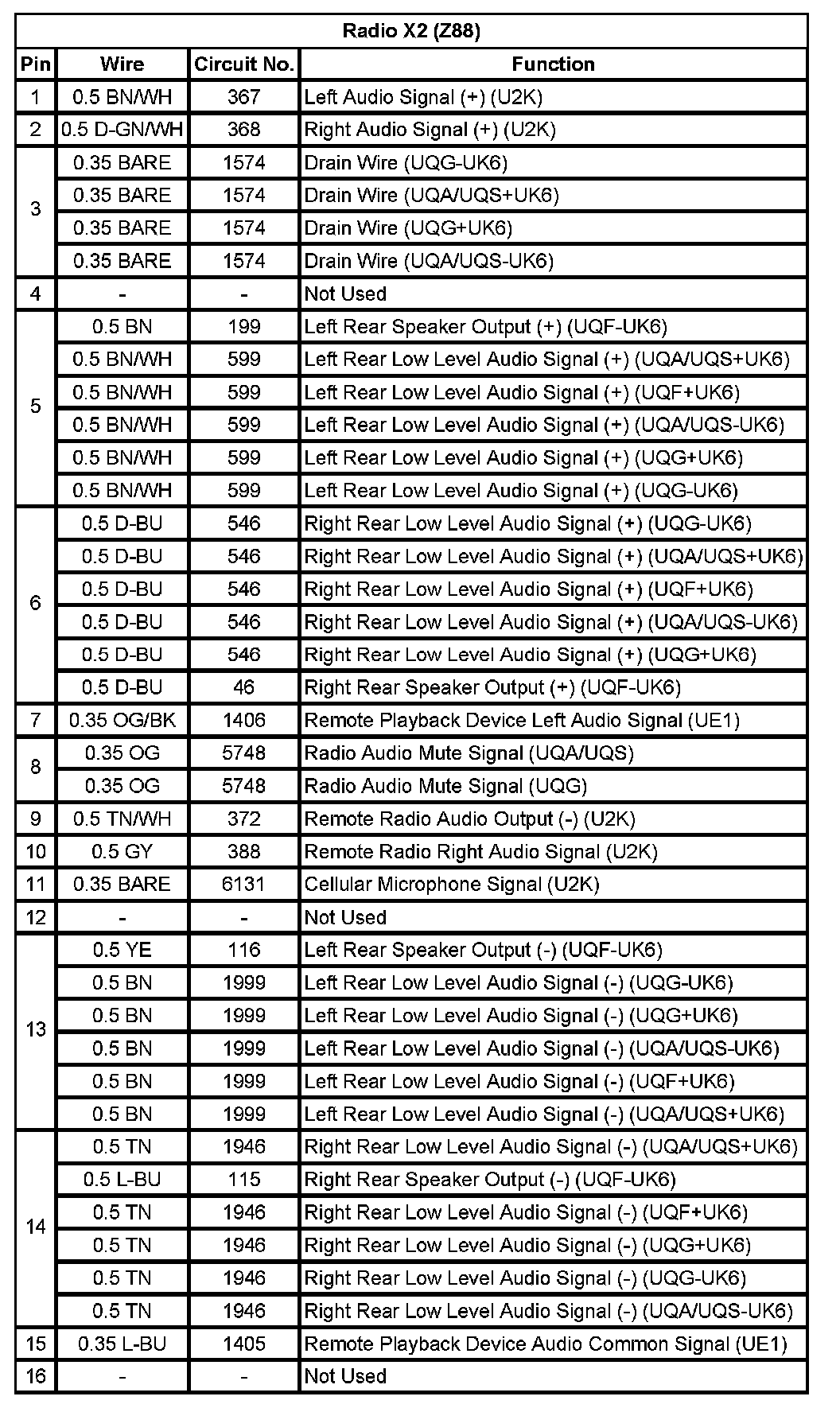

Radio X2 (Z88)

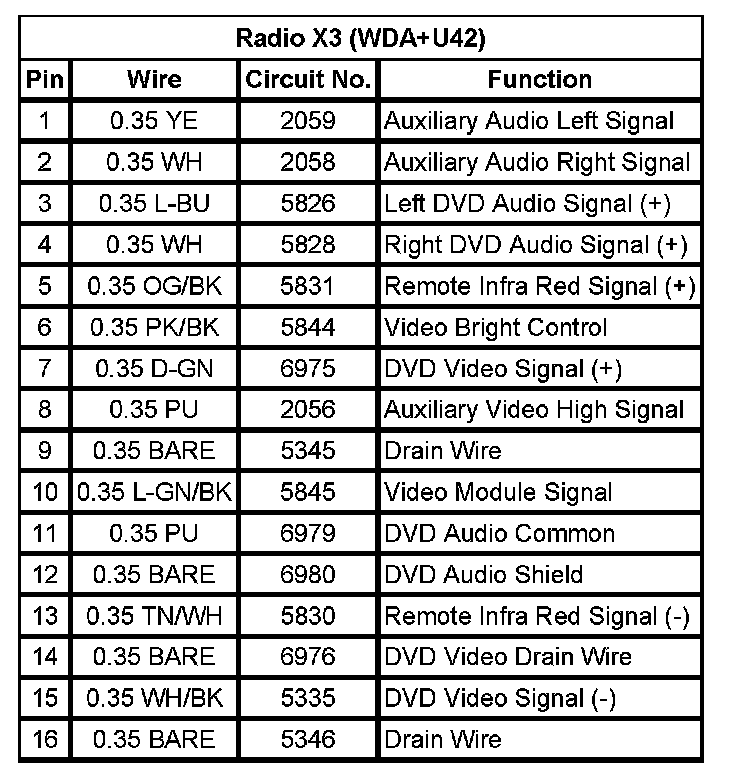

Radio X3 (WDA+U42)

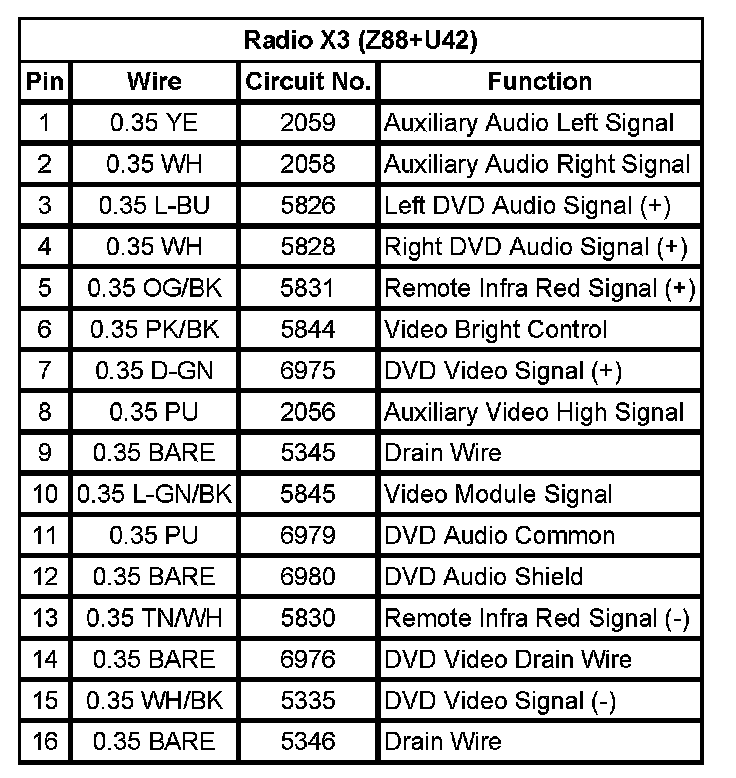

Radio X3 (Z88+U42)














Radio X4 (WDA+U3R/UZR)














Radio X4 (Z88+U3R/UZR)
