Pedal Positioning Sensor

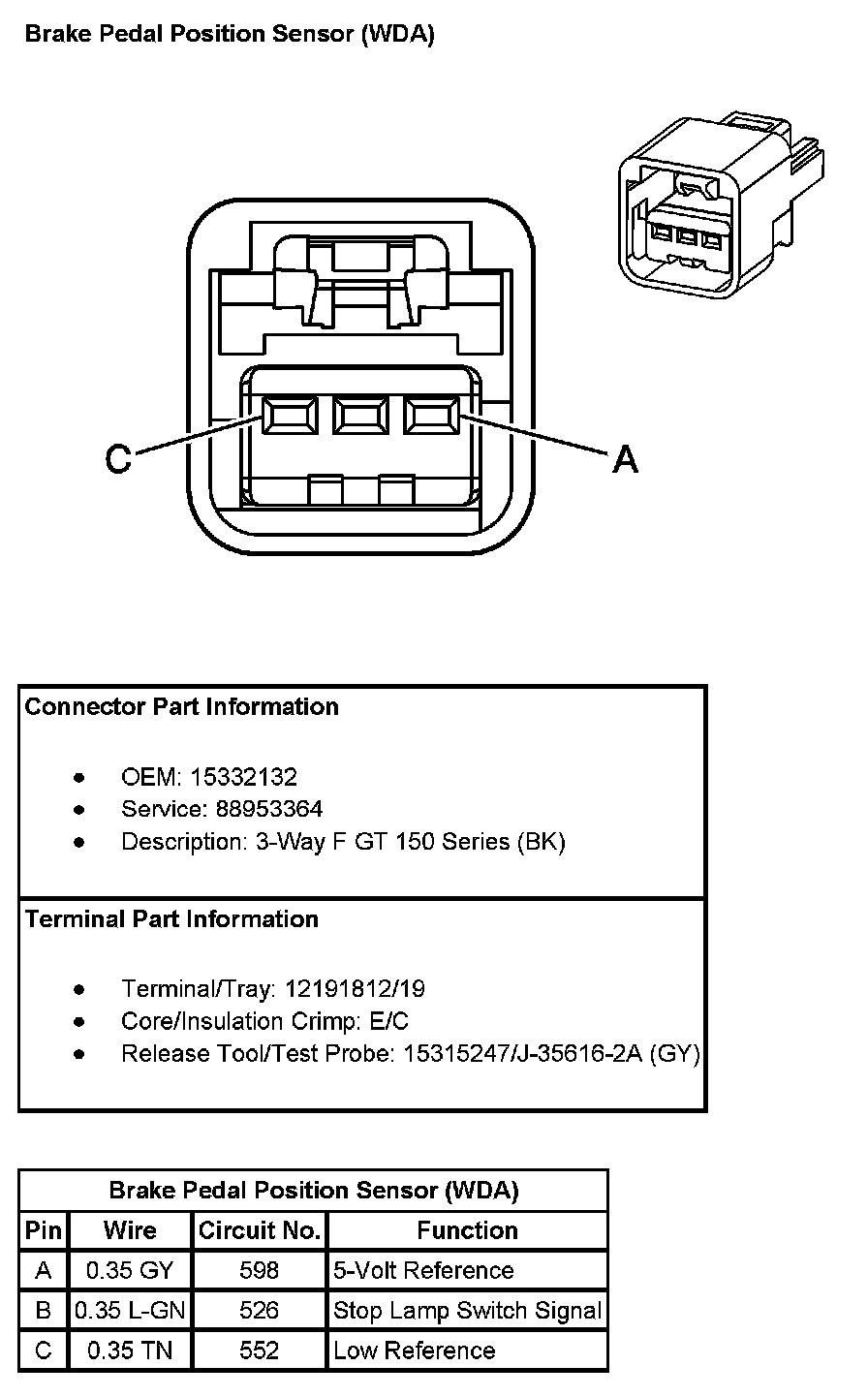

Brake Pedal Position Sensor (With RPO Code WDA):

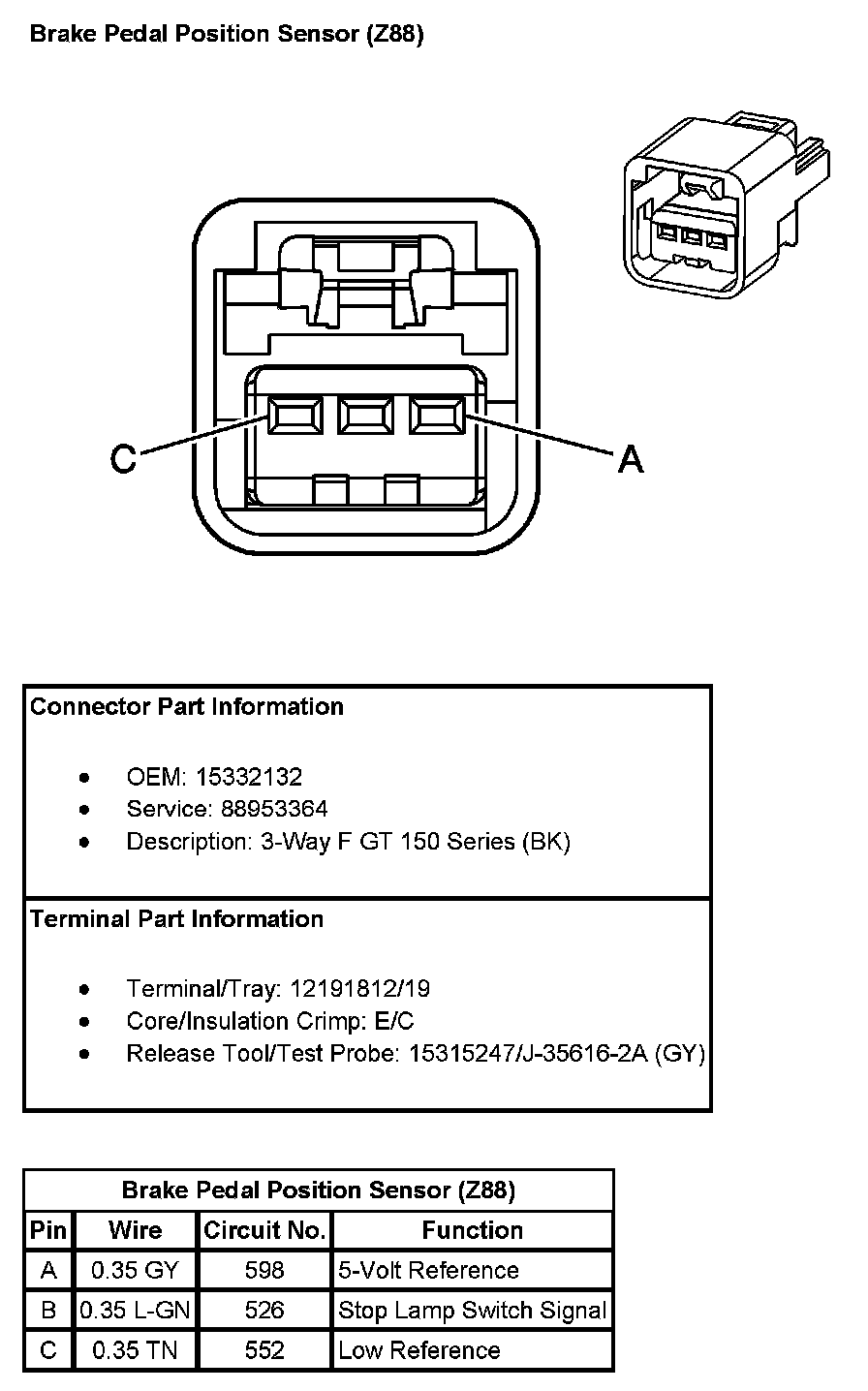

Brake Pedal Position Sensor (With RPO Code Z88):
