Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Amplifier >> Diagrams

Amplifier: Diagrams



Entertainment/Communication Connector End Views

Audio Amplifier X1 (Z88+UQA/UQS)














Audio Amplifier X1 (WDA+UQG)














Audio Amplifier X1 (Z88+UQG)














Audio Amplifier X2 (UQA/UQG/UQS)














Audio Amplifier X2 (Z88+UQA/UQS)














Audio Amplifier X2 (Z88+UQG)

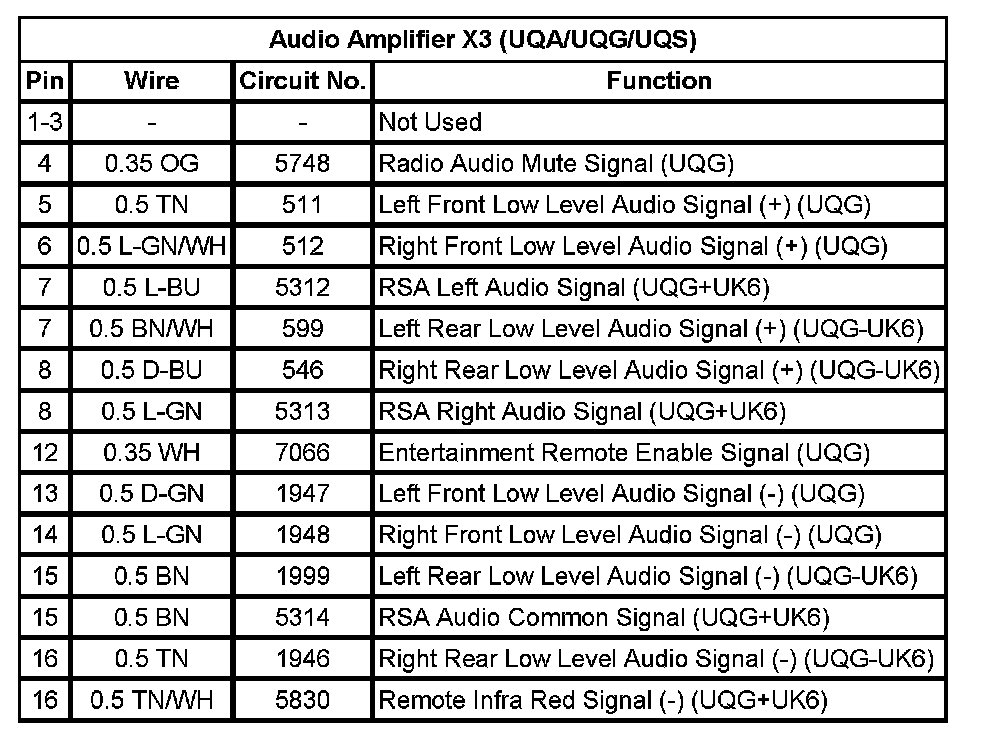

Audio Amplifier X3 (UQA/UQG/UQS)

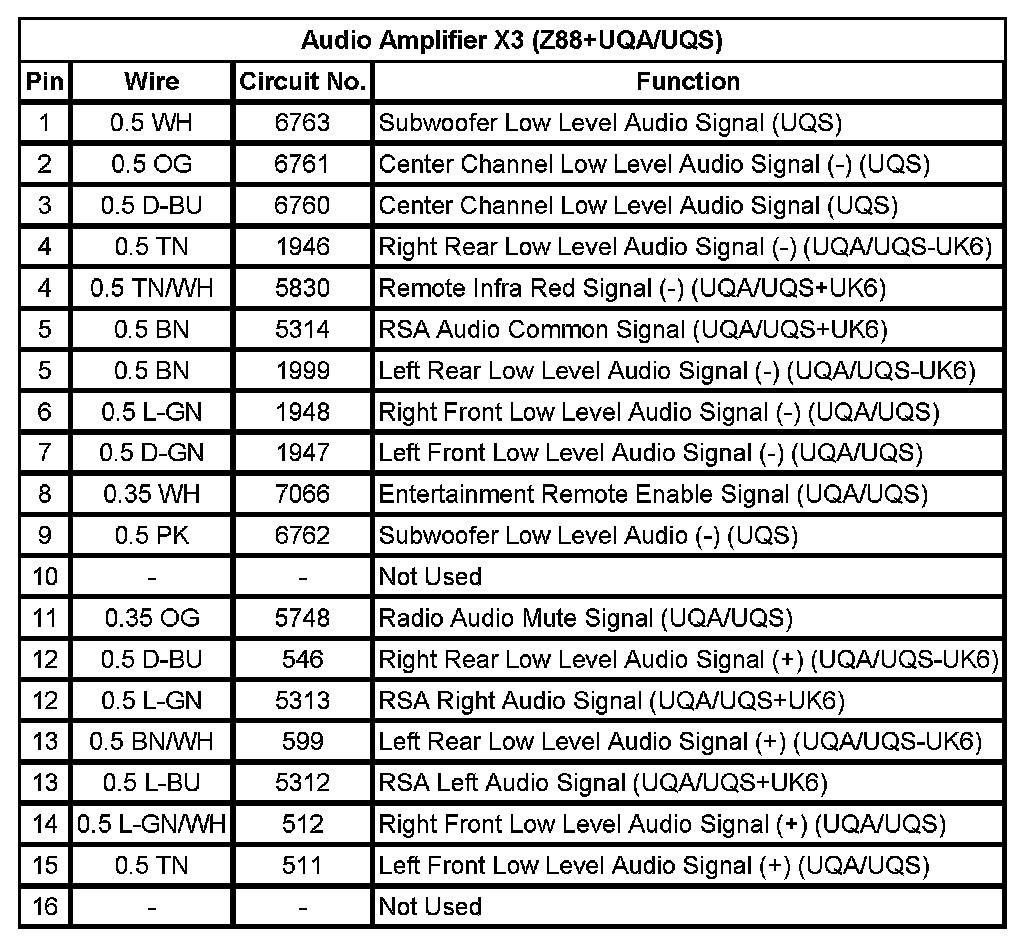

Audio Amplifier X3 (Z88+UQA/UQS)

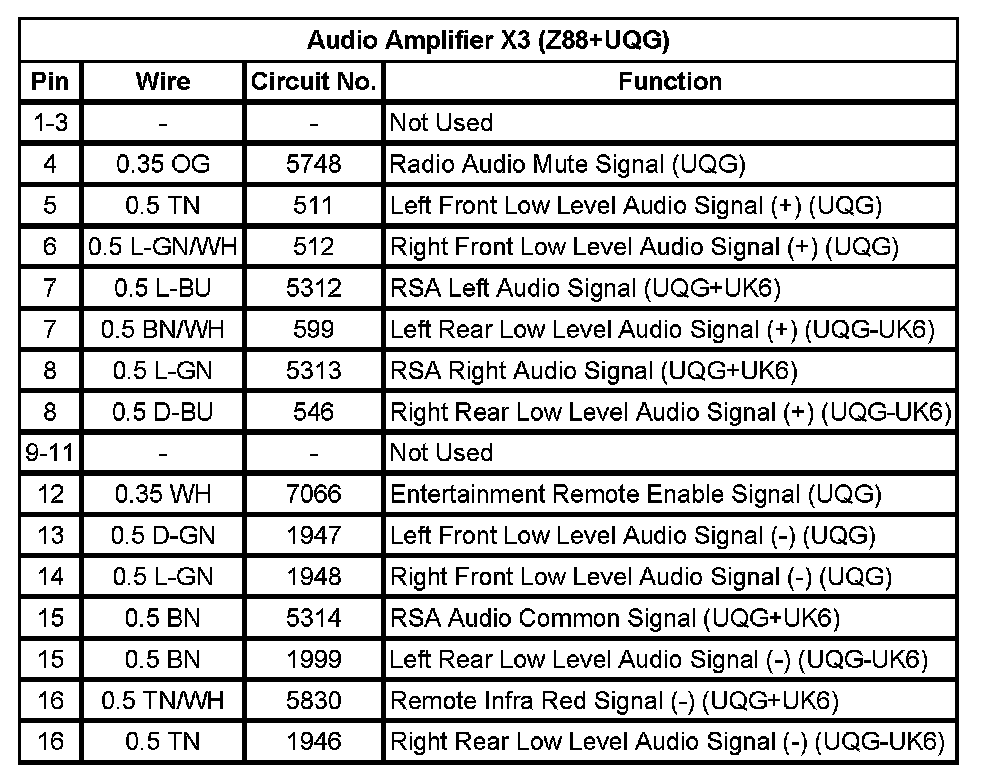

Audio Amplifier X3 (Z88+UQG)
