Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

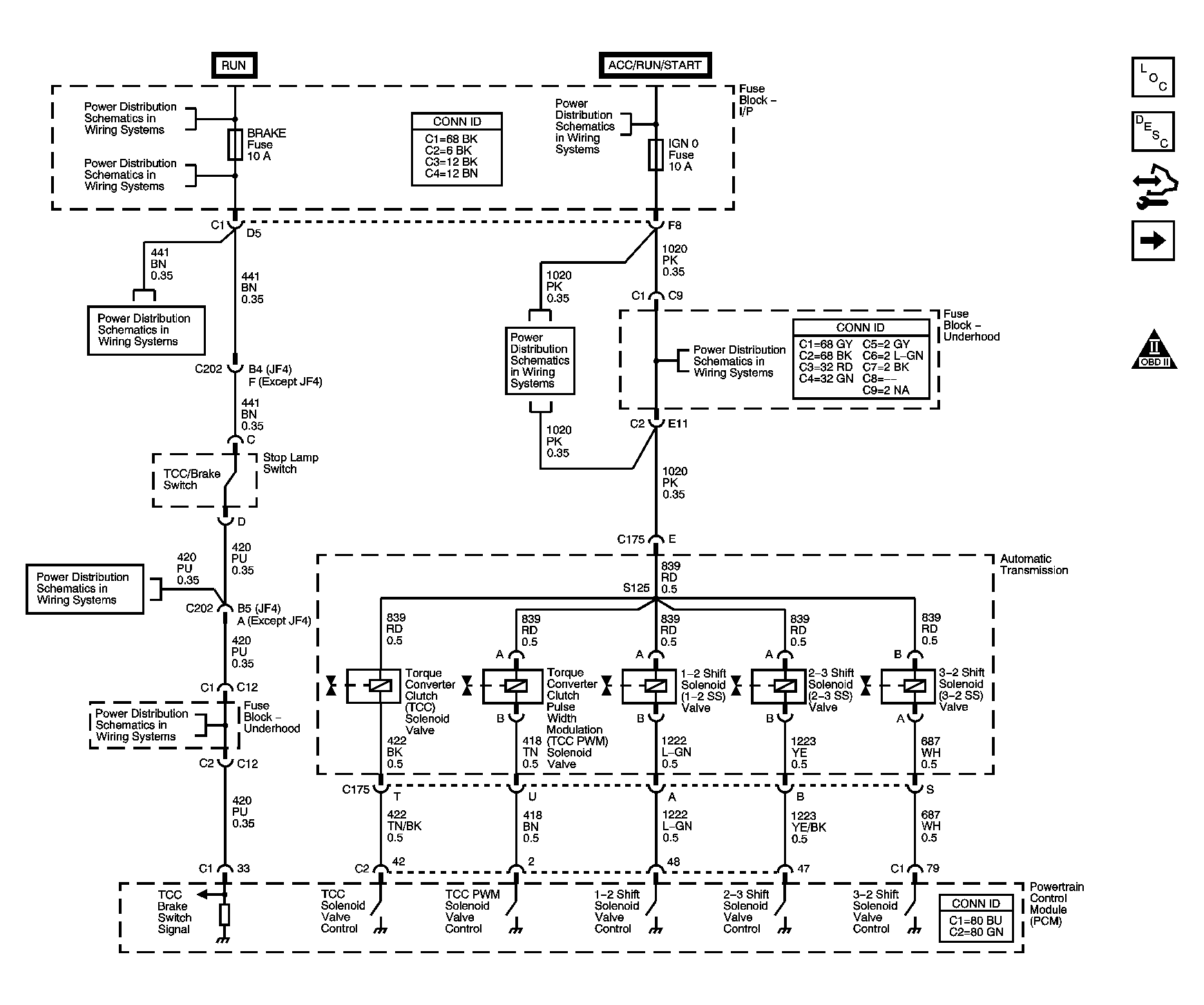

Fig 1: Shift Controls and Stop Lamp Switch
GM1575749Courtesy of GENERAL MOTORS CORP.
Fig 2: Pressure Controls, Temperature, and VSS
GM1575750Courtesy of GENERAL MOTORS CORP.
Fig 3: PNP Switch, 4WD Signal, Tow/Haul, Serial Data, and Indicator
GM1575751Courtesy of GENERAL MOTORS CORP.
