Power Steering System Schematics

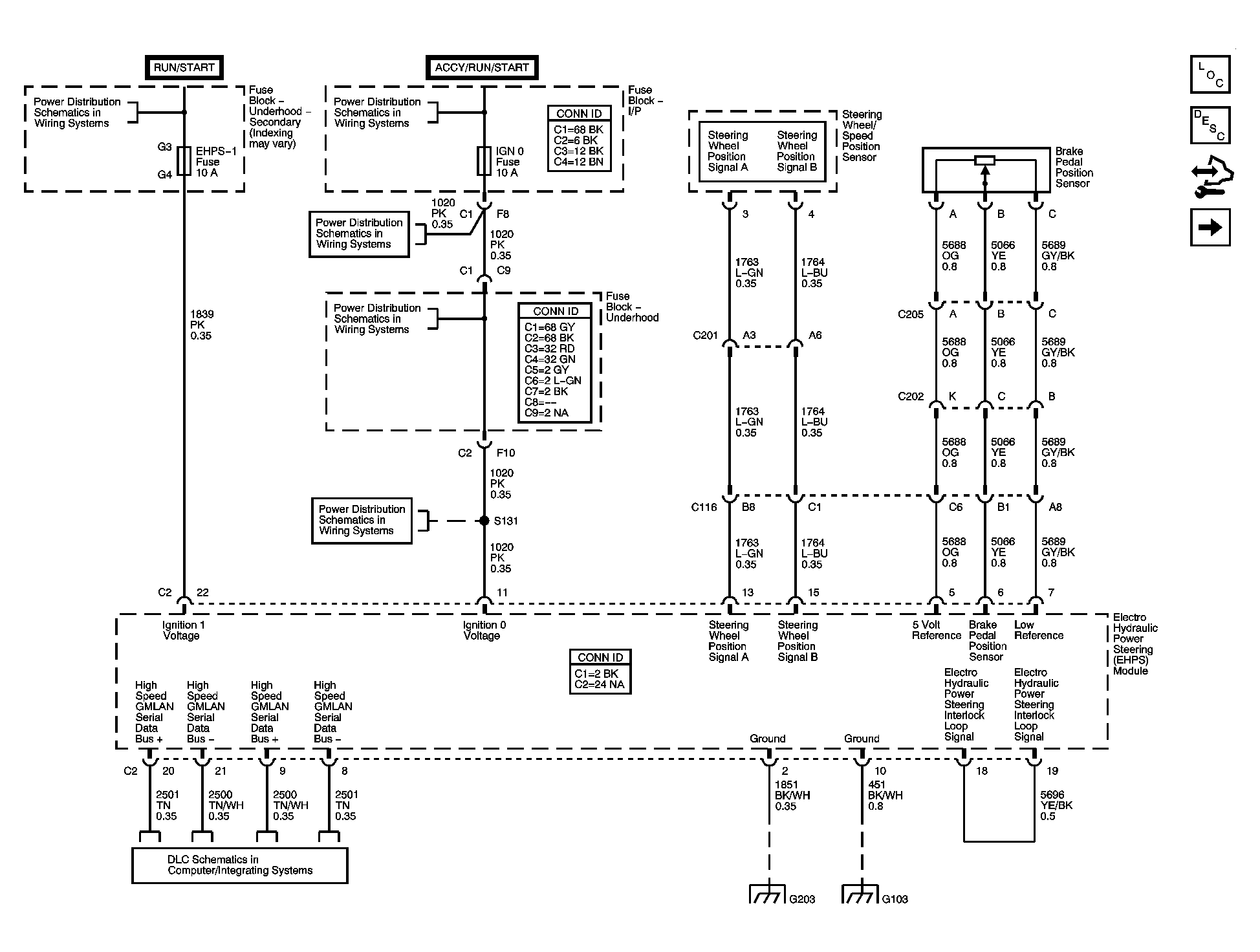

Fig 1: Power, Ground, Serial Data, Steering Wheel/Speed and Brake Pedal Position Sensor
GM1570418Courtesy of GENERAL MOTORS CORP.

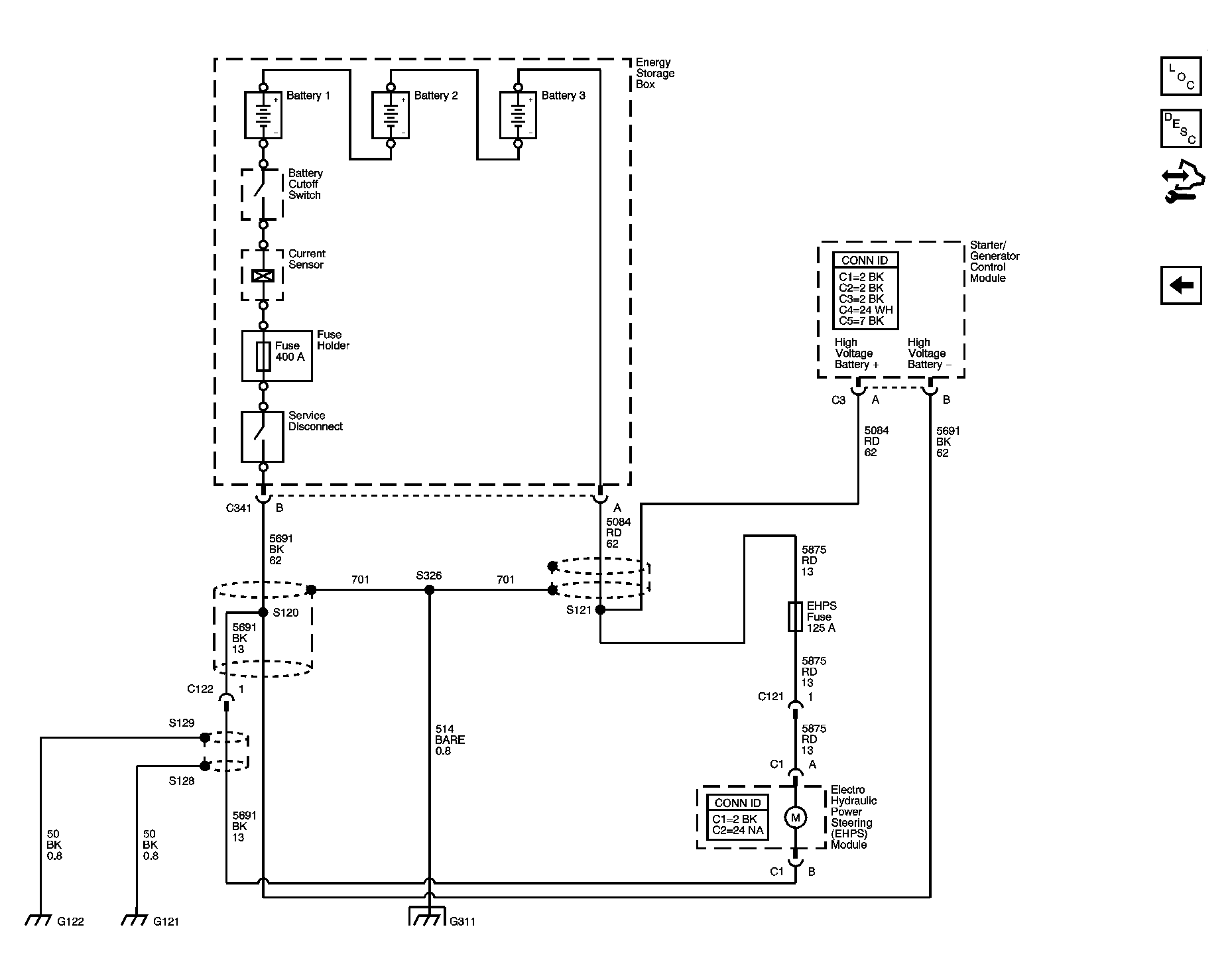

Fig 2: Hydraulic Motor Power and Ground
GM1570419Courtesy of GENERAL MOTORS CORP.
