SIR Schematics

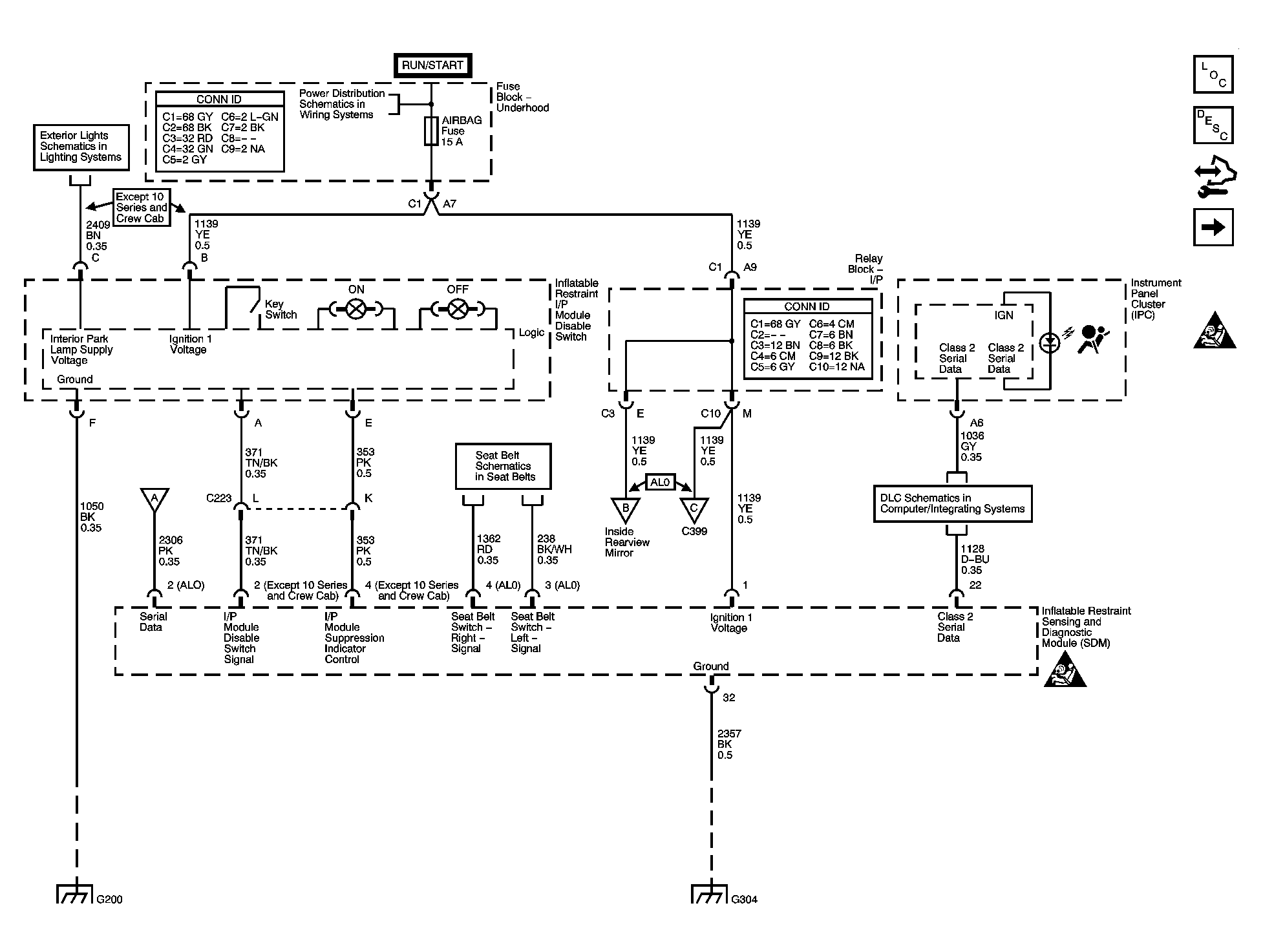

Fig 1: Power, Ground, Serial Data, and Disable Switch
GM1570573Courtesy of GENERAL MOTORS CORP.

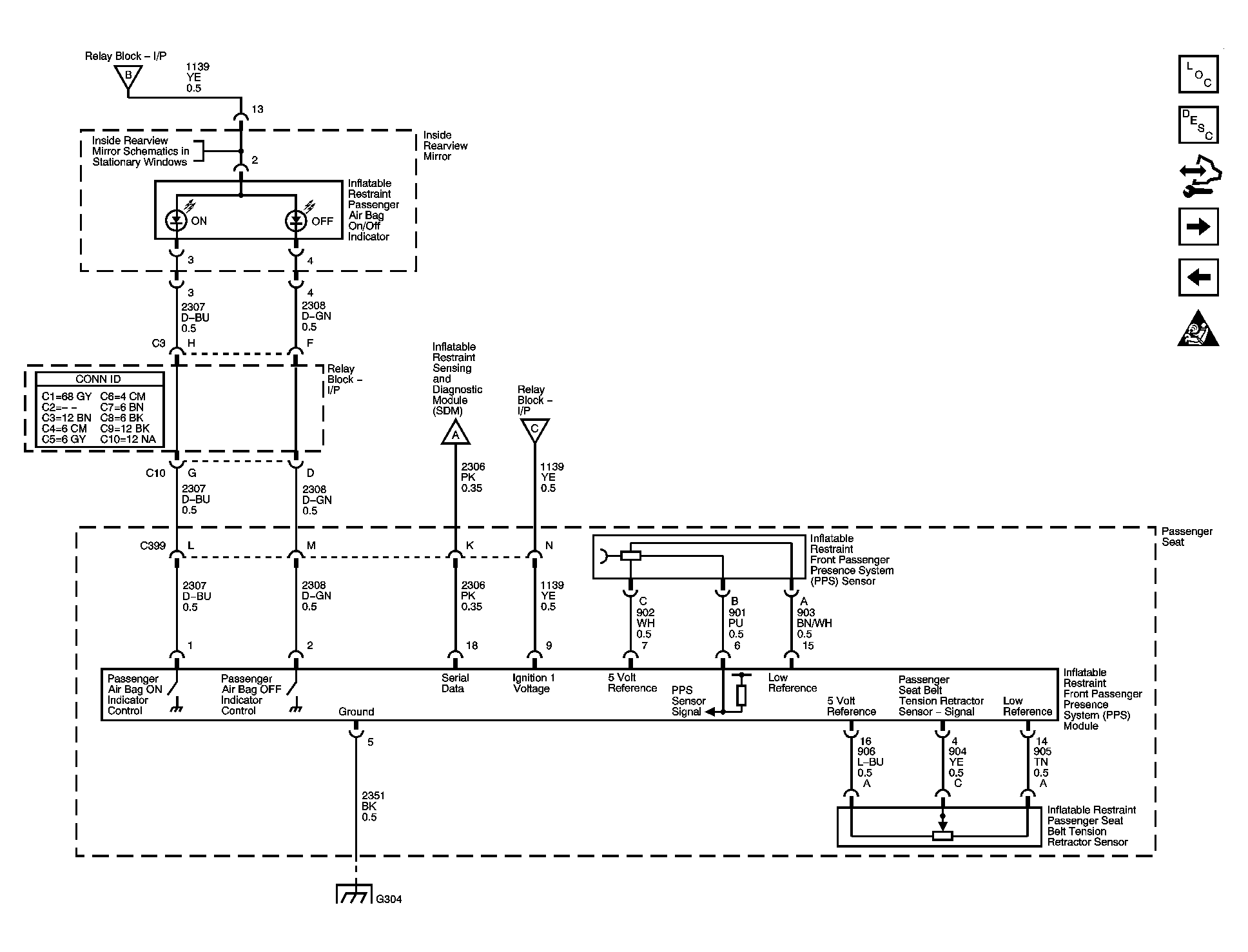

Fig 2: Passenger Present Schematics
GM1570575Courtesy of GENERAL MOTORS CORP.

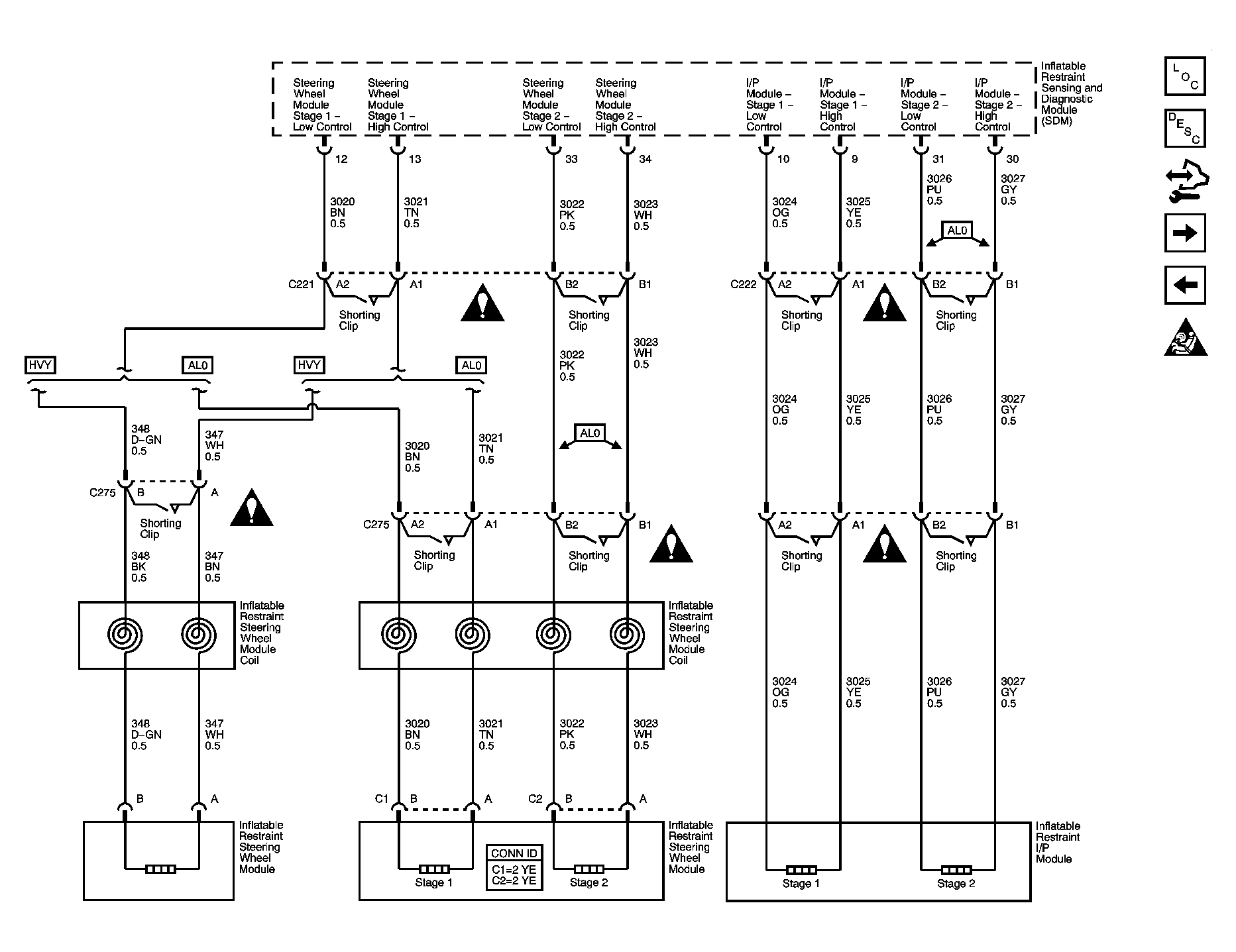

Fig 3: Driver and Passenger Air Bags
GM1570577Courtesy of GENERAL MOTORS CORP.

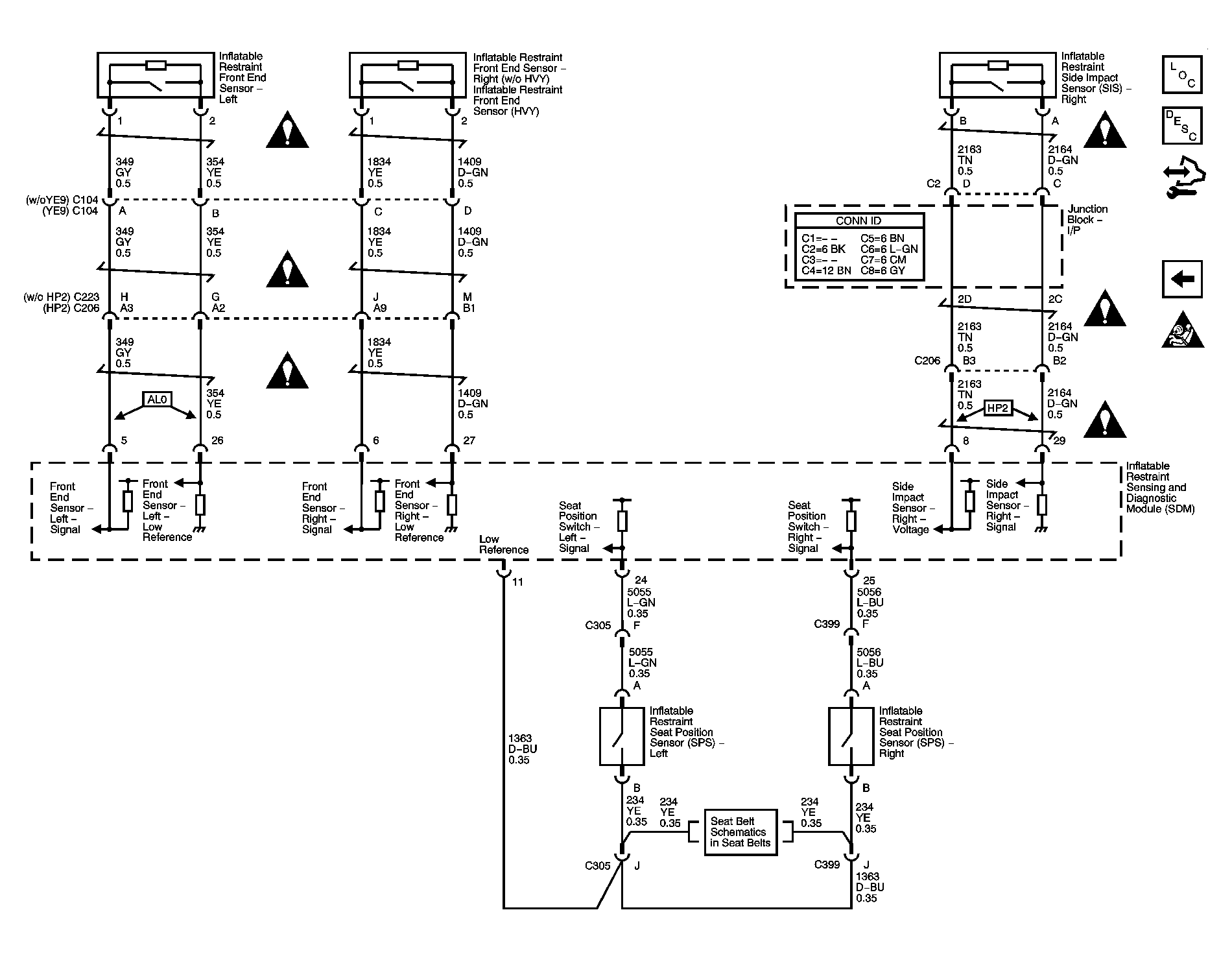

Fig 4: Front End and Side Impact Sensors and Seat Position Switches
GM1570580Courtesy of GENERAL MOTORS CORP.
