Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

Fig 1: Module Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Data Sensors - 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - Pressure, Temperature, MAF, and VSS

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 5: Ignition Controls

Courtesy of GENERAL MOTORS CORP.

Fig 6: Fuel Pump Controls and Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

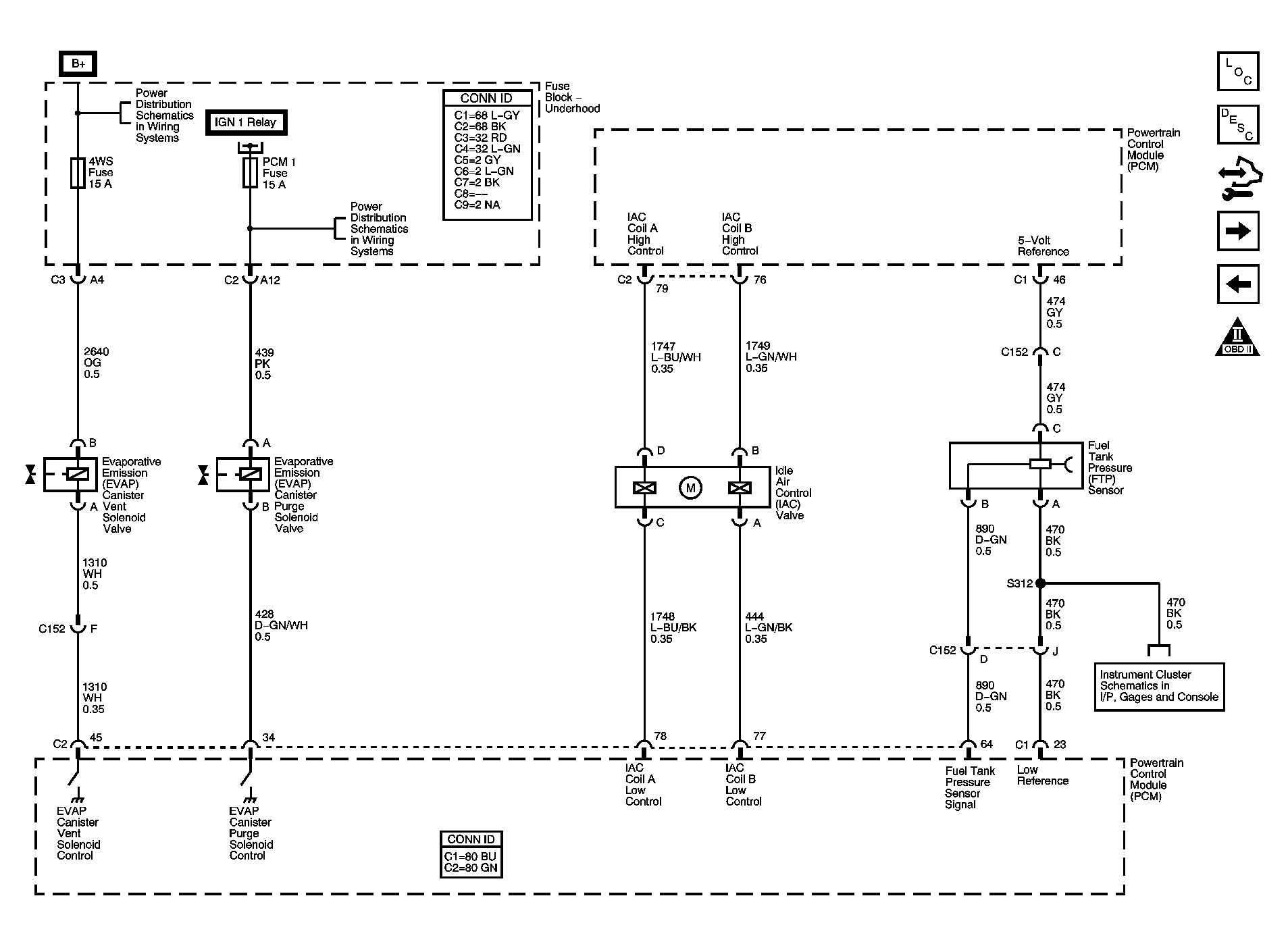

Fig 7: Fuel Controls - EVAP and Device Controls

Courtesy of GENERAL MOTORS CORP.

Fig 8: Transmission and Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
