Fuel Meter Assembly
WARNING: This page is about a different variant/trim than selected.

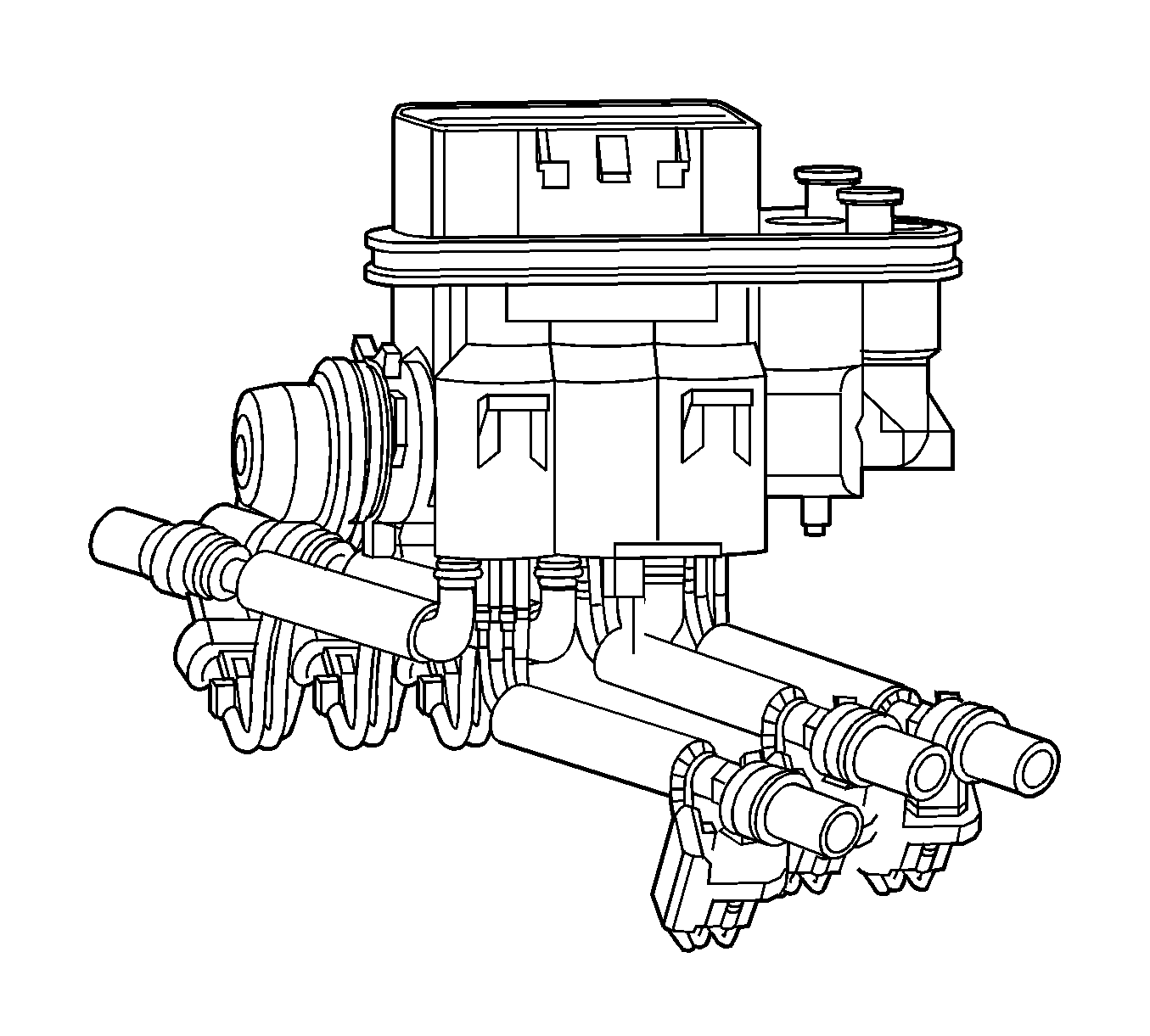

The fuel meter assembly attaches to the engine intake manifold. The fuel rail assembly performs the following functions:
- Distributes fuel evenly to the injectors
- Integrates the fuel dampener into the fuel metering system
Courtesy of GENERAL MOTORS CORP.
