Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

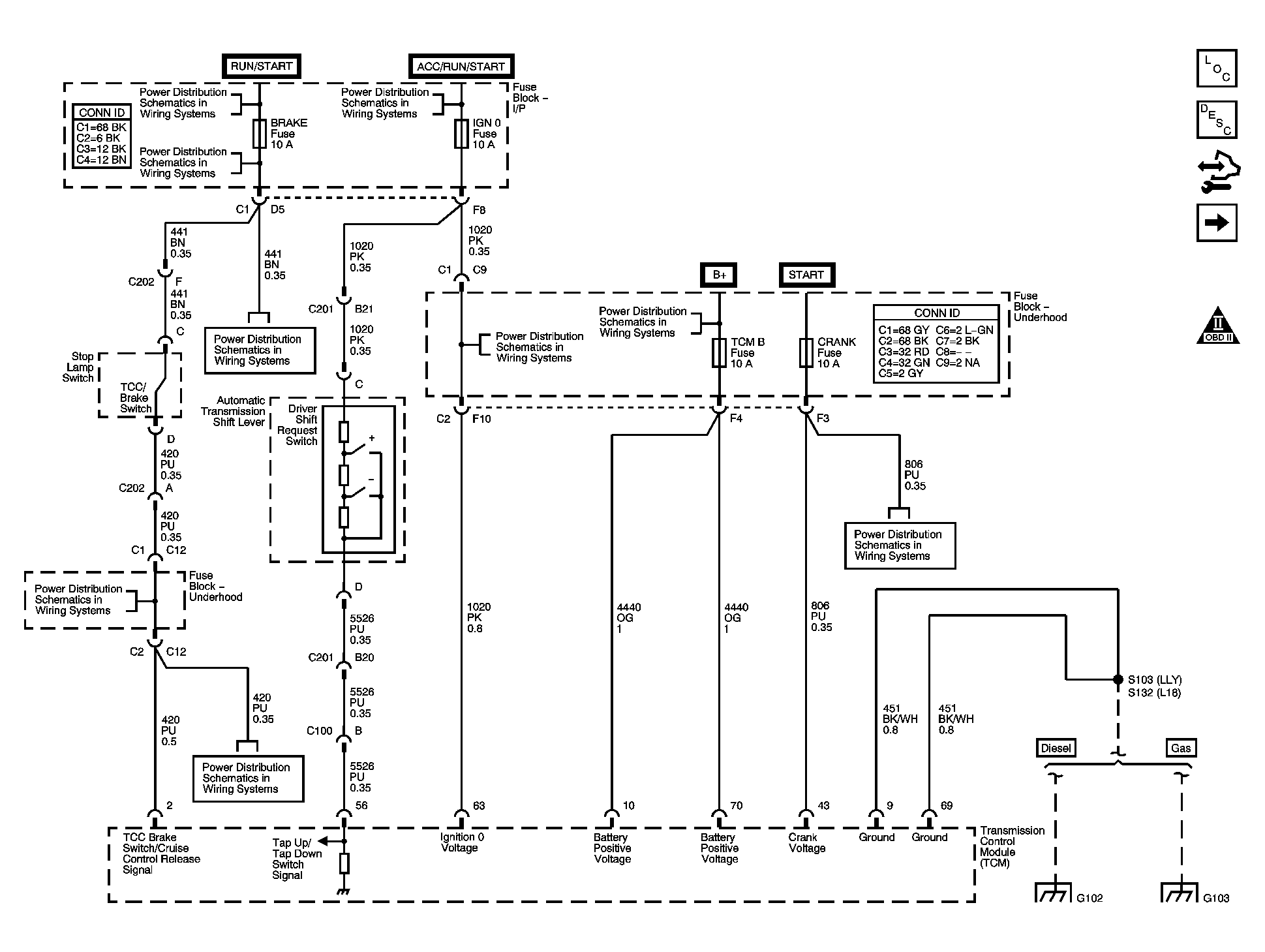

Fig 1: Power, Ground, Stop Lamp Switch, and Driver Shift Request Switch

Courtesy of GENERAL MOTORS CORP.

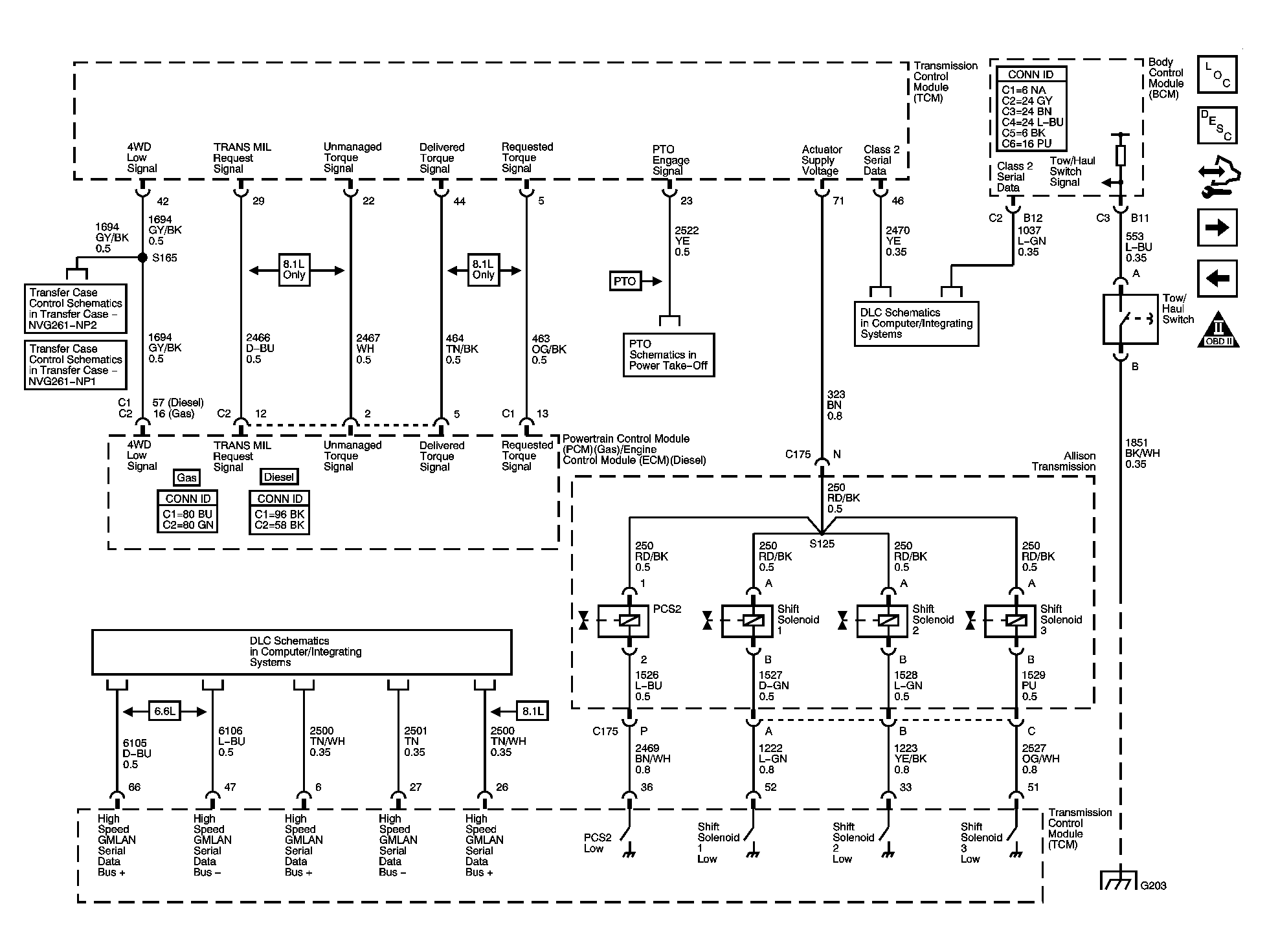

Fig 2: MIL Control, Serial Data, Shift Solenoids, PCS2, Torque Signals, and Tow/Haul Switch

Courtesy of GENERAL MOTORS CORP.

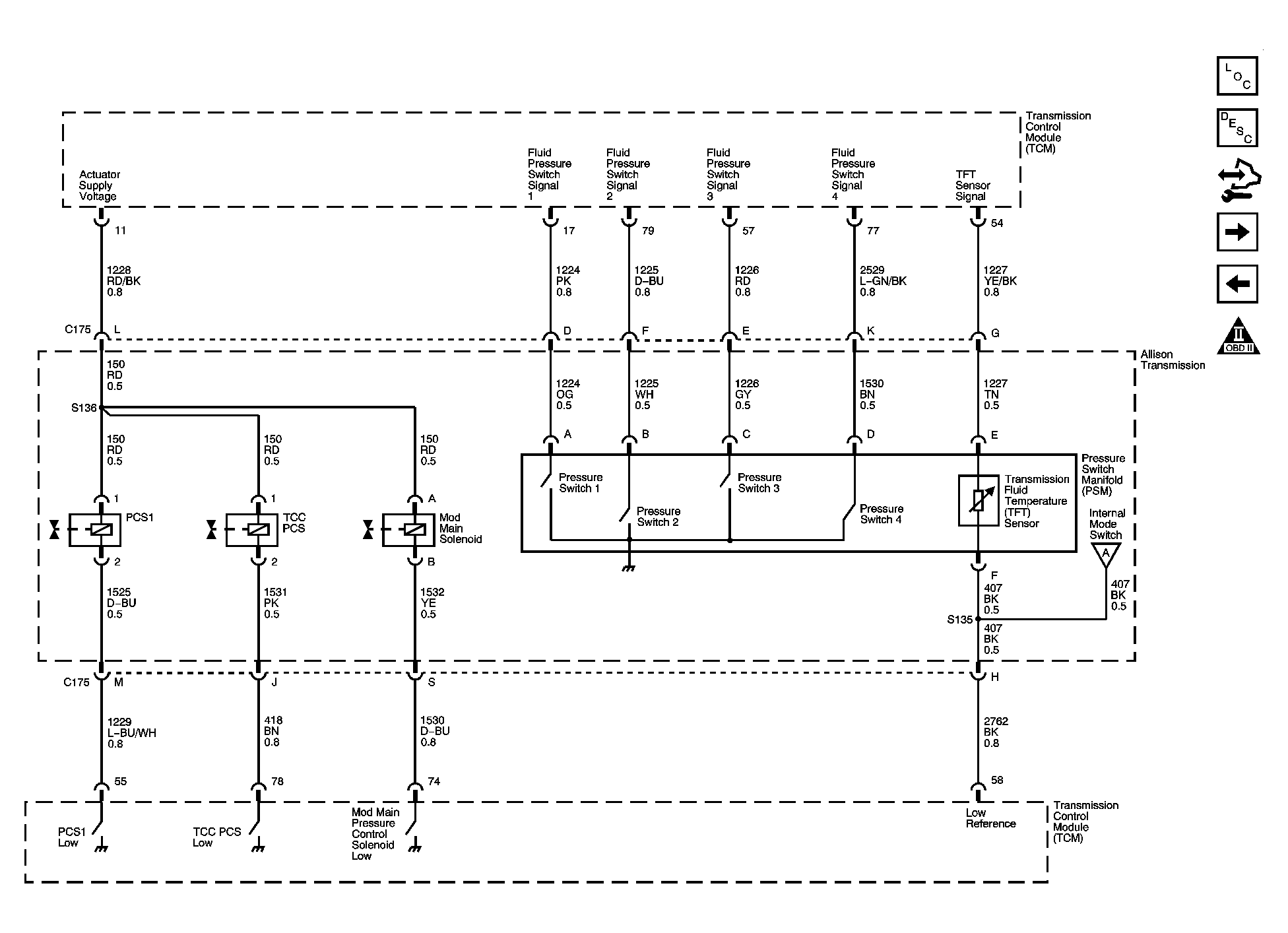

Fig 3: Fluid Pressure Switches, PCS1, TCC PCS, Mod Main Solenoid, and TFT Sensor

Courtesy of GENERAL MOTORS CORP.

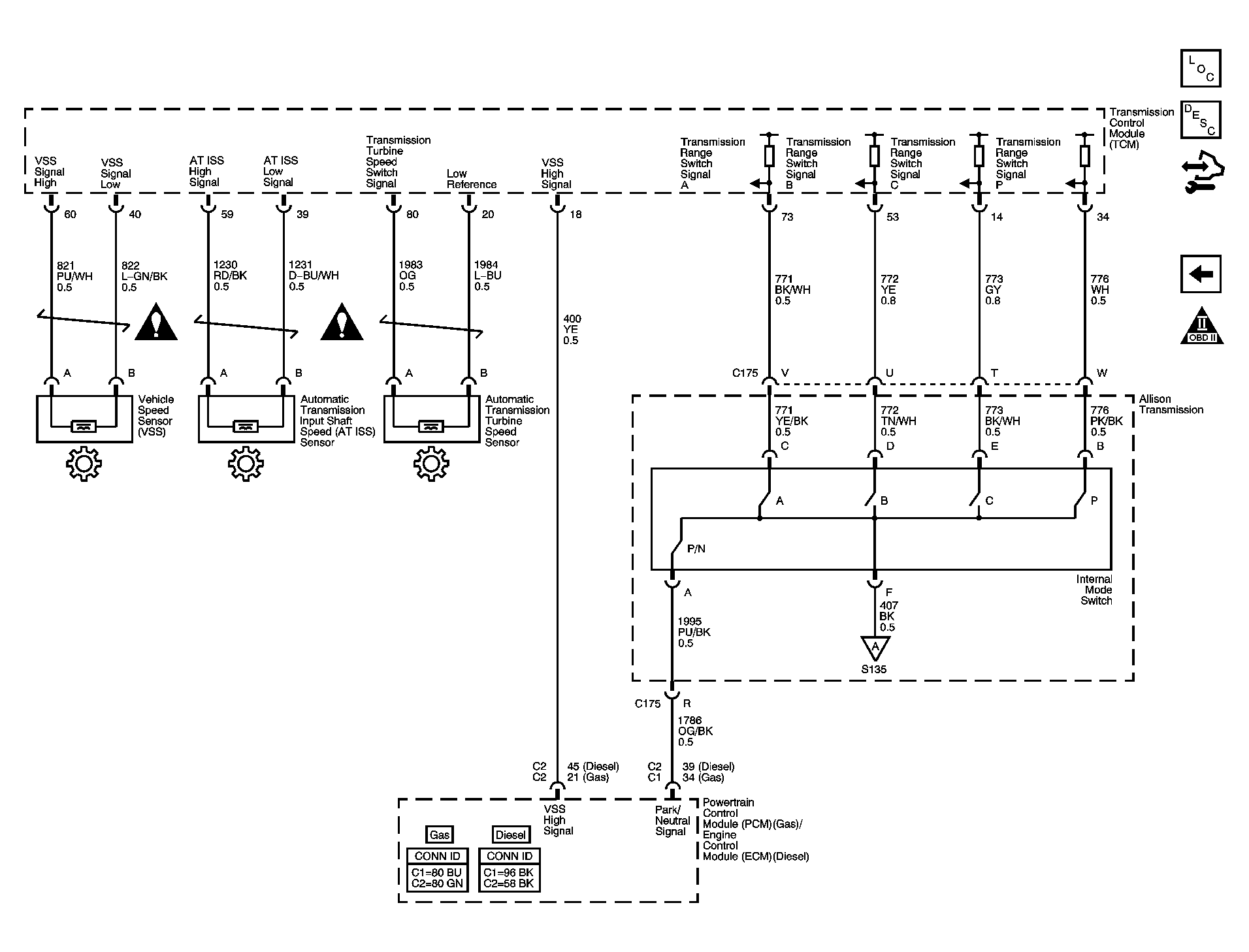

Fig 4: Internal Mode Switch (IMS) and Speed Sensors

Courtesy of GENERAL MOTORS CORP.
