Disassembled Views

WARNING: This page is about a different variant/trim than selected.

Fig 1: Case and Associated Parts - 1 of 4

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Torque Converter Shipping Bracket Bolt
2	Torque Converter Shipping Bracket Bolt
3	Torque Converter Shipping Bracket
4	Torque Converter Shipping Bracket Nut
5	Torque Converter
6	Torque Converter Seal
20	Torque Converter Housing/Oil Pump Cover Assembly
50	Transmission Case
81	Low and Reverse Clutch Housing
81	Low and Reverse Clutch Housing
82	Output Nut
84	Rear Seal
85	Propeller Shaft Yoke
86	Propeller Shaft Yoke Bolt Seal
87	Propeller Shaft Yoke Bolt
90	Vehicle Speed Sensor Bolt
91	Output Speed Sensor
92	Vehicle Speed Sensor O-Ring
93	Sensor Shipping Cover

Fig 2: Case and Associated Parts - 2 of 4

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
20	Torque Converter Housing/Oil Pump Cover Assembly
21	Torque Converter Housing Bolt
22	Oil Pump Bolt Seal
30	Vehicle Speed Sensor Bolt
31	Input Speed Sensor
32	Vehicle Speed Sensor O-Ring
33	Sensor Shipping Cover
35	Torque Converter Housing Access Hole Cover
40	Transmission Oil Cooler Pipe Connector
41	Line Pressure Test Hole Plug O-Ring
42	Line Pressure Test Hole Plug
43	Transmission External Oil Filter Adapter
44	Transmission External Oil Filter Magnet
45	Transmission External Oil Filter
50	Transmission Case
81	Low and Reverse Clutch Housing

Fig 3: Case and Associated Parts - 3 of 4

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
20	Torque Converter Housing/Oil Pump Cover Assembly
22	Internal Mode Switch (IMS)
23	IMS Retainer Bolt
50	Transmission Case
51	Turbine Speed Sensor Bolt
52	Turbine Speed Sensor
53	Turbine Speed Sensor O-Ring
54	Sensor Shipping Cover
55	Power Take-Off (PTO) Cover Gasket
55	Power Take-Off (PTO) Cover Gasket
56	PTO Cover
56	PTO Cover
57	PTO Cover Bolt
57	PTO Cover Bolt
60	Manual Shift Shaft Pin
61	Manual Shift Shaft
62	Manual Shift Shaft Seal
65	Park Pawl Apply Rod
81	Low and Reverse Clutch Housing

Fig 4: Case and Associated Parts - 4 of 4

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
20	Torque Converter Housing/Oil Pump Cover Assembly
50	Transmission Case
70	Transmission Fill Tube Plug
71	Transmission Fill Tube Seal
72	Transmission Internal Oil Filter Seal
73	Transmission Internal Oil Filter
74	Transmission Oil Pan Gasket
75	Transmission Oil Pan Magnet
76	Transmission Oil Pan
77	Transmission Oil Pan Drain Plug O-Ring
78	Transmission Oil Pan Drain Plug
79	Transmission Oil Pan Bolt
81	Low and Reverse Clutch Housing

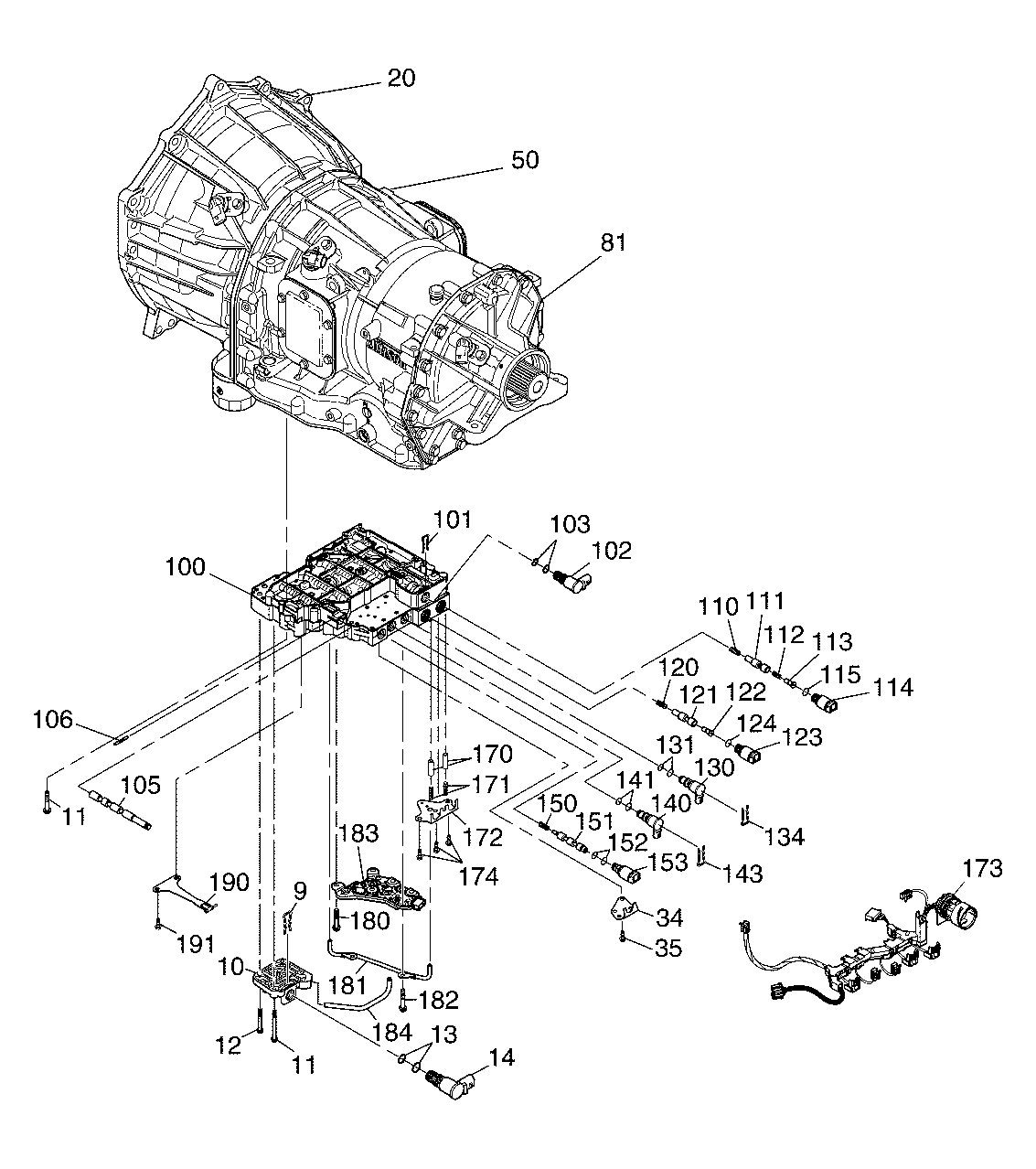

Fig 5: Control Valve Body Assembly

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
9	Retaining Clip
10	Modulated Main Valve Body
11	Bolt
11	Bolt
12	Bolt
13	O-Rings
14	Modulated Main Pressure Solenoid
20	Torque Converter Housing/Oil Pump Cover Assembly
34	Torque Converter Clutch Pressure Control Solenoid (TCC PCS) Retaining Bracket
35	TCC PCS Retaining Bracket Bolts
50	Transmission Case
81	Low and Reverse Clutch Housing
100	Control Valve Body Assembly
101	Shift Solenoid 1 (SS1) Retainer
102	SS1
103	Shift Solenoid O-Ring
105	Manual Valve
106	Manual Valve Pin
110	Pressure Control Solenoid 1 (PCS1) Spring
111	PCS1 Valve
112	Pressure Control (PC) Gain Valve Spring
113	PC Gain Valve
114	PCS1
115	PCS1 O-Ring
120	Pressure Control Solenoid 2 (PCS2) Spring
121	PCS2 Valve
122	PC Gain Valve
123	PCS2
124	PCS2 O-Ring
130	Shift Solenoid 3 (SS3)
131	Shift Solenoid O-Ring
134	Shift Solenoid Retainer
140	Shift Solenoid 2 (SS2)
141	Shift Solenoid O-Ring
143	Shift Solenoid Retainer
150	TCC PCS Spring
151	TCC PCS Valve
152	TCC PCS O-Ring
153	TCC PCS
170	Accumulator Plug
171	Accumulator Spring
172	PCS Retaining Bracket
173	Transmission Wiring Harness Assembly
174	PCS Retaining Bracket Bolts
180	Transmission Fluid Pressure (TFP) Switch Bolt
181	Reverse Signal Pipe
182	Reverse Signal Pipe Bolt
183	TFP Switch
184	6-Speed Pipe
190	Manual Shift Shaft Detent Spring
191	Manual Shift Shaft Detent Spring Bolt
