Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

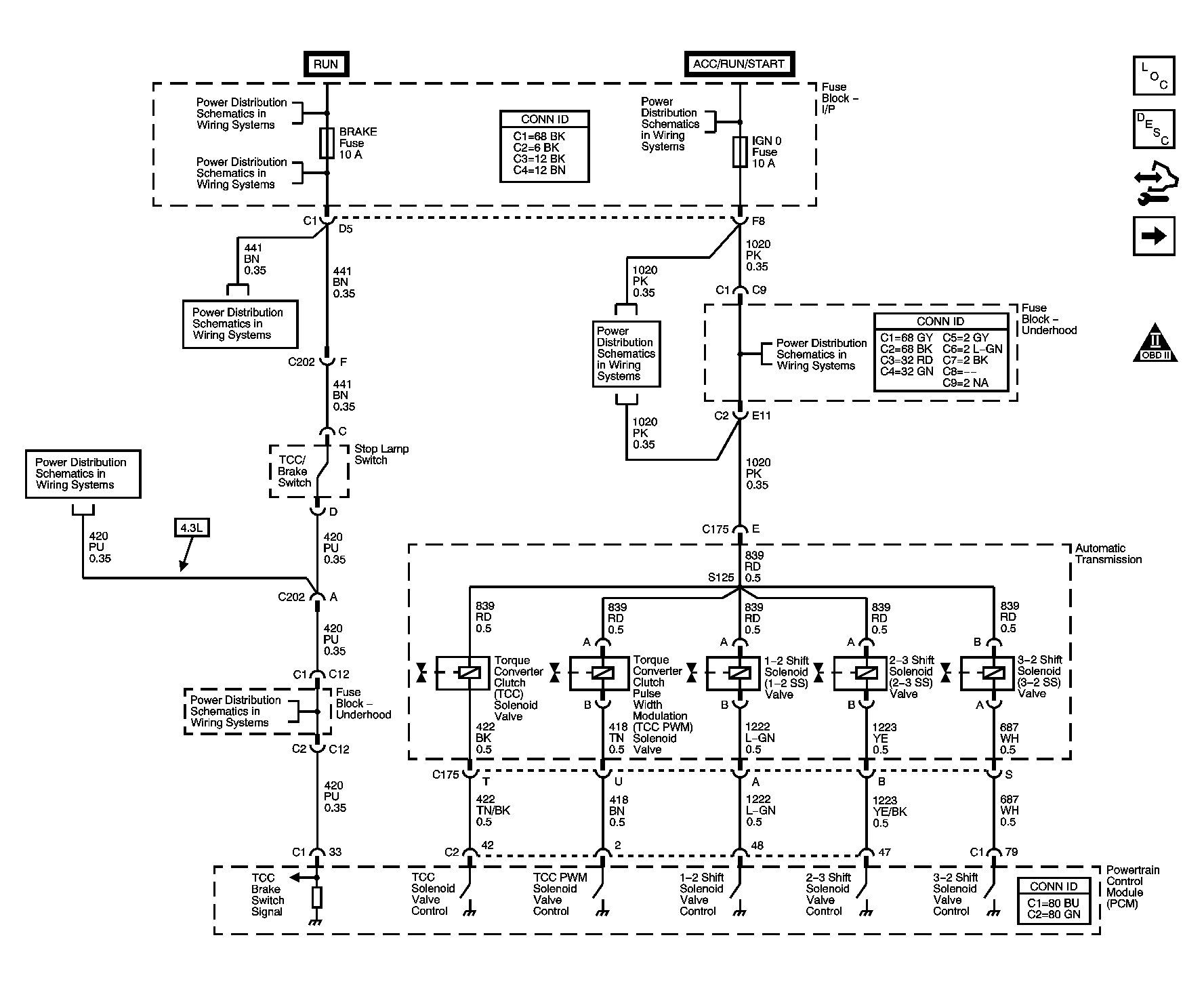

Fig 1: Shift Controls and Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

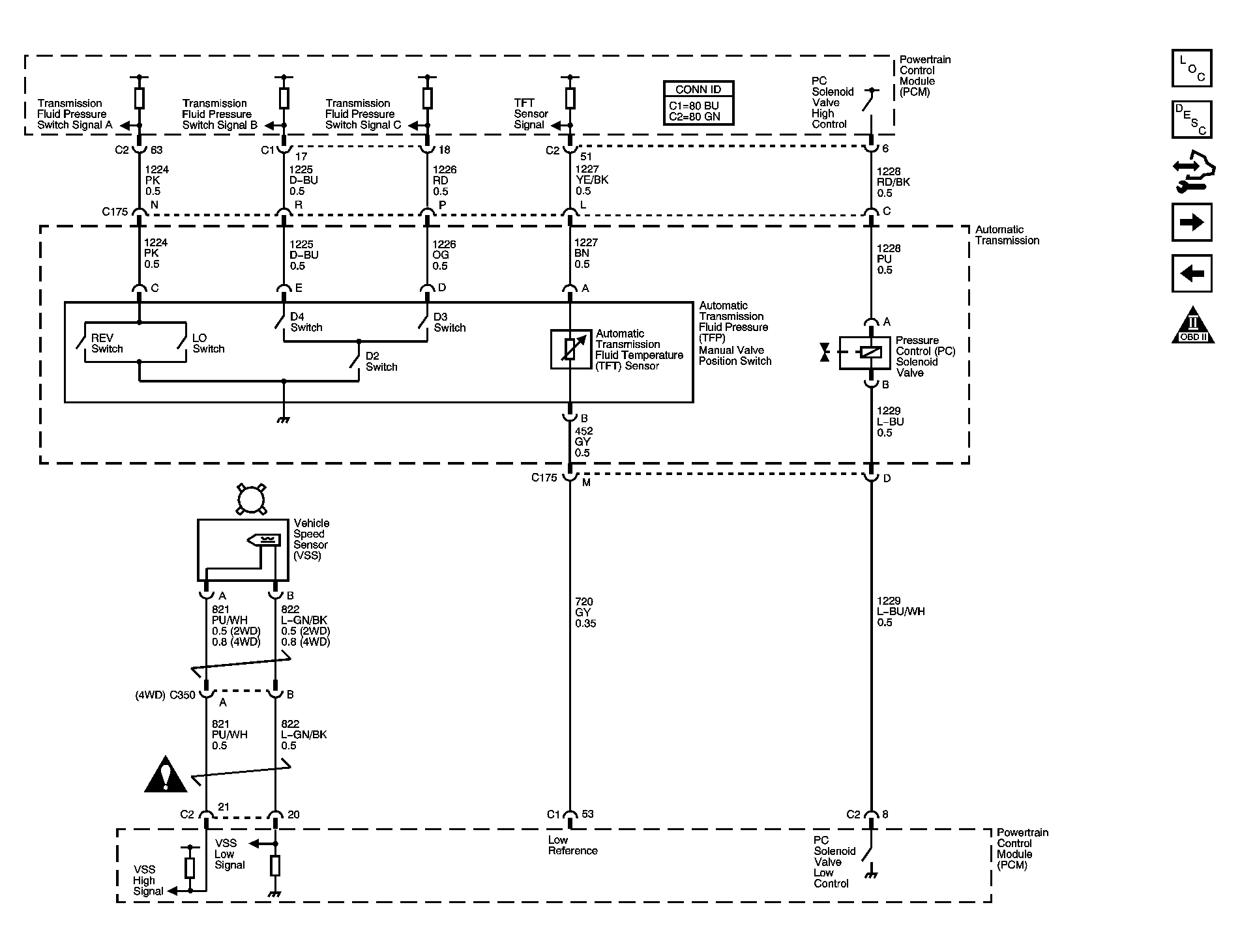

Fig 2: Pressure Controls, Temperature, and VSS

Courtesy of GENERAL MOTORS CORP.

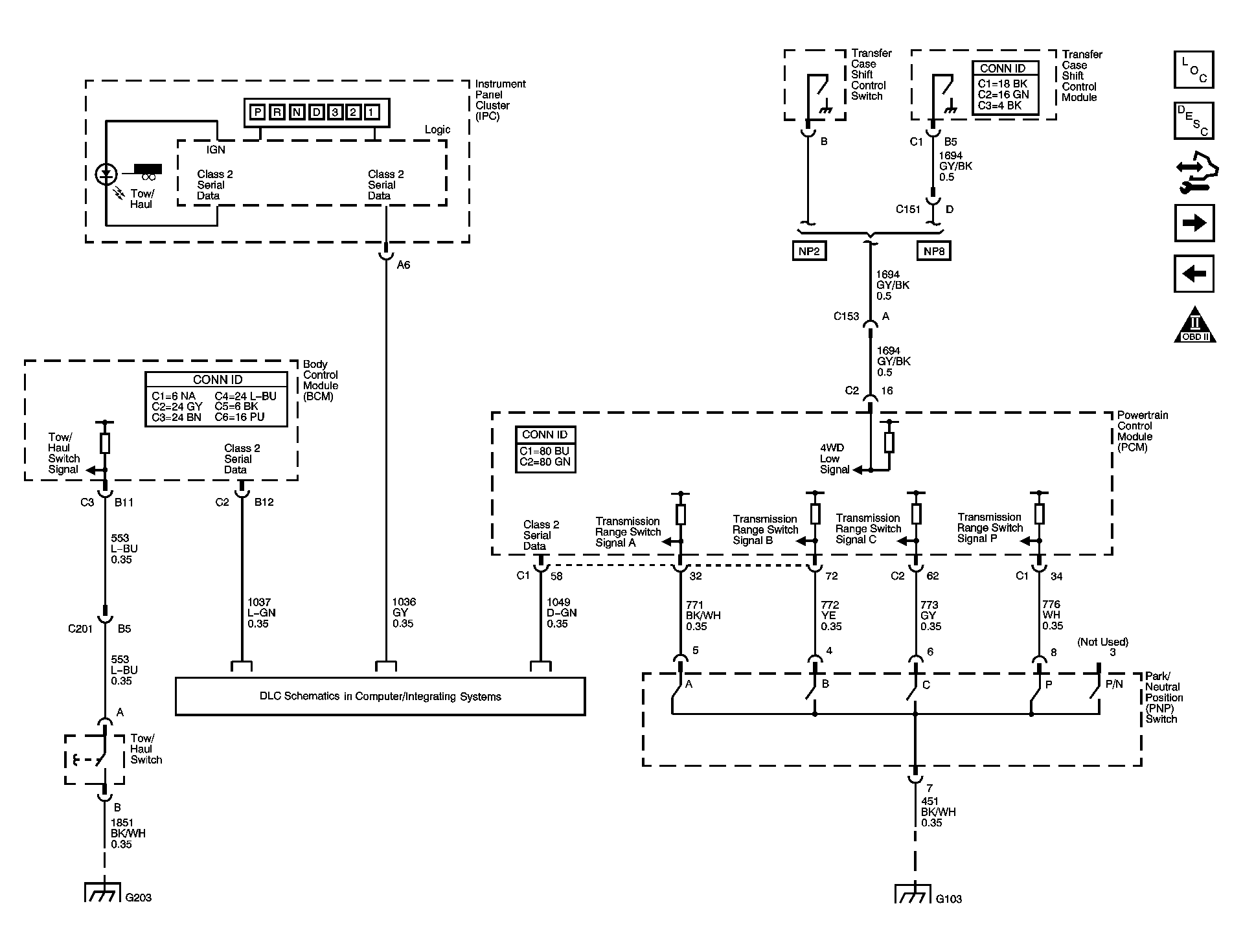

Fig 3: PNP Switch, 4WD Signal, Tow/Haul, Serial Data, and Indicator

Courtesy of GENERAL MOTORS CORP.

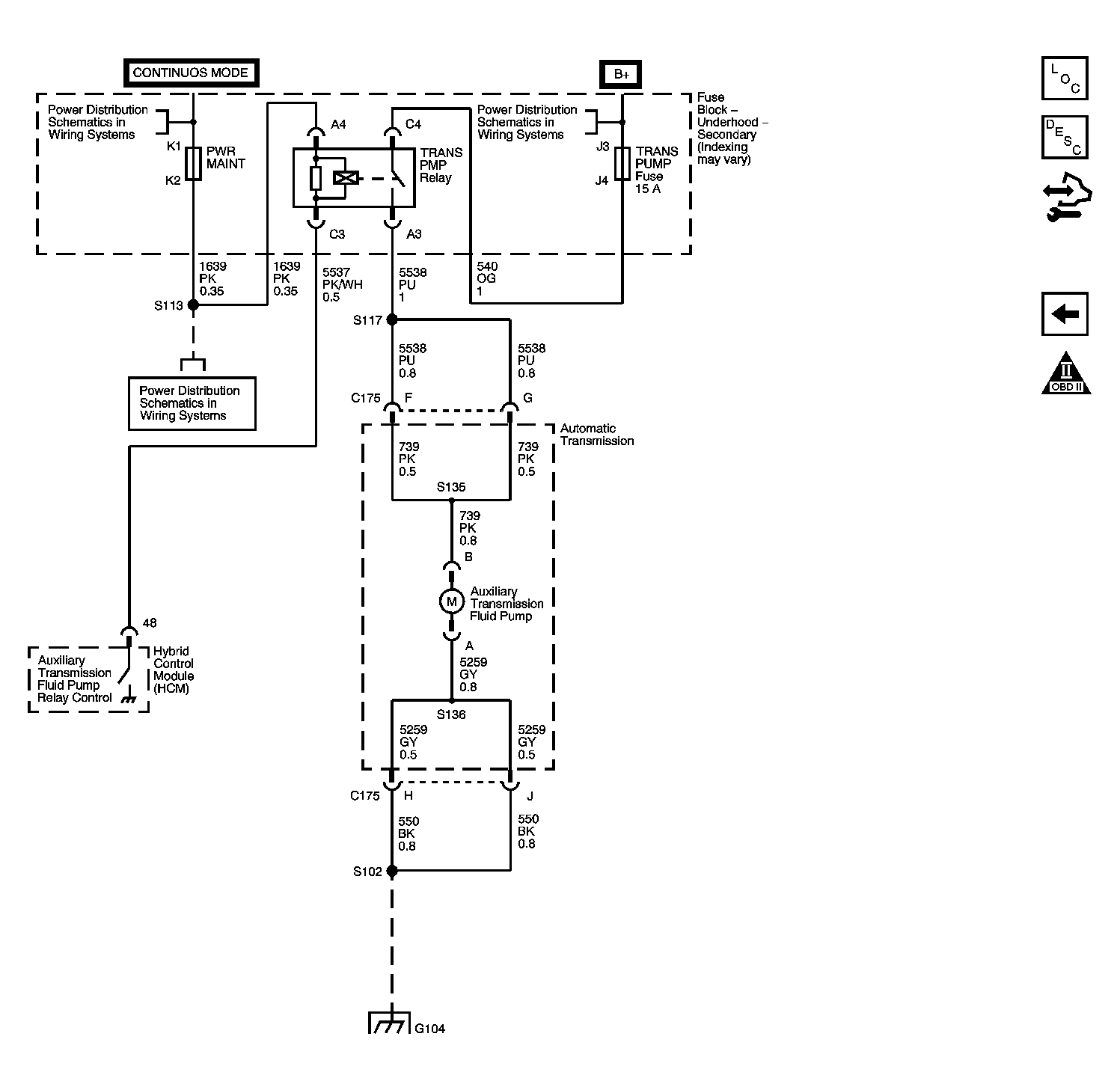

Fig 4: Auxiliary Pump Controls (HP2)

Courtesy of GENERAL MOTORS CORP.
