Trailer Connector/Provision Schematics

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

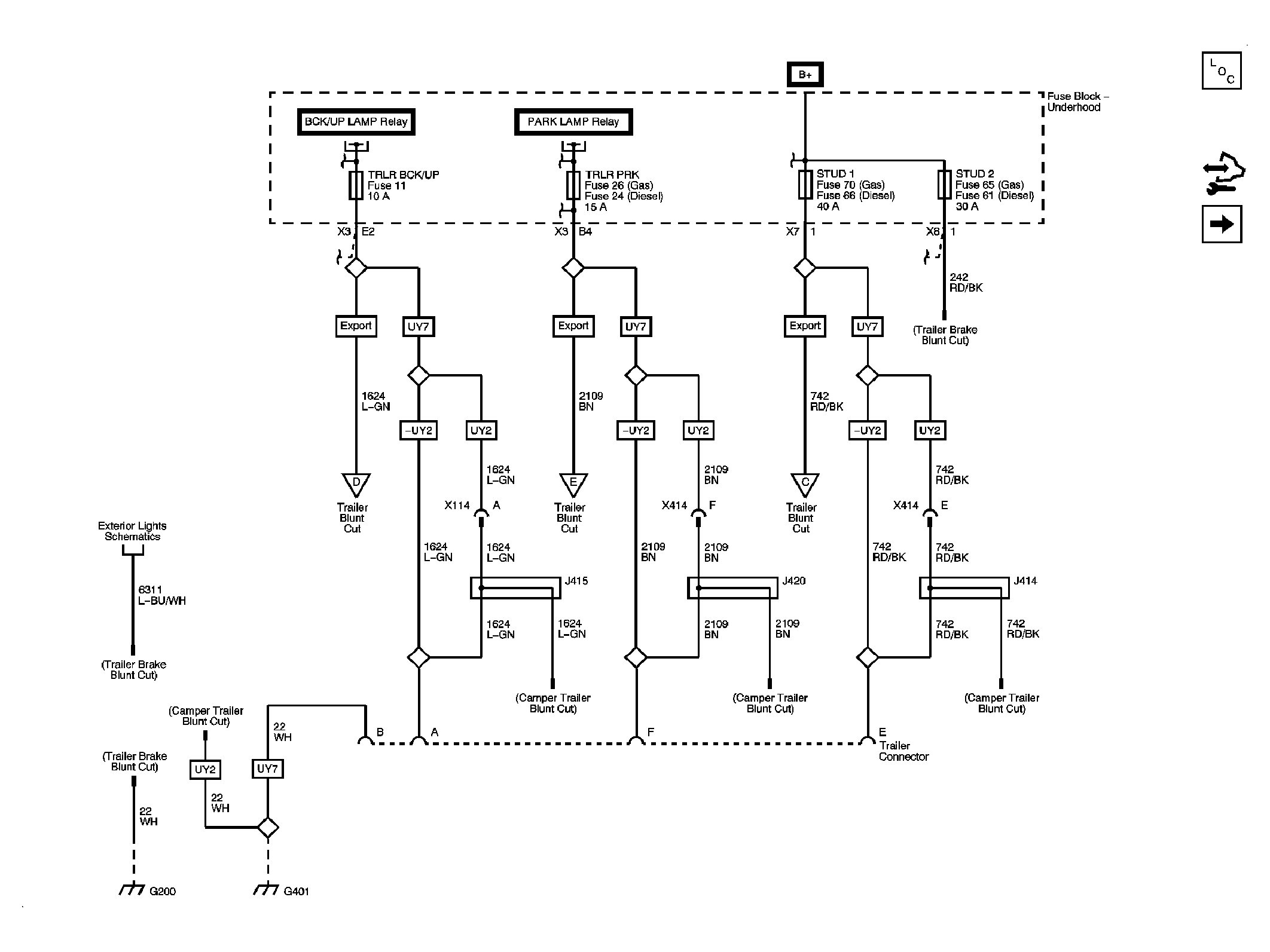

Fig 1: Trailer Connector 1 of 2
GM1916687Courtesy of GENERAL MOTORS CORP.
Fig 2: Trailer Connector 2 of 2
GM1916694Courtesy of GENERAL MOTORS CORP.
Fig 3: Export
GM1920650Courtesy of GENERAL MOTORS CORP.
