Pickup Box Endgate Cable Bolt Replacement

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

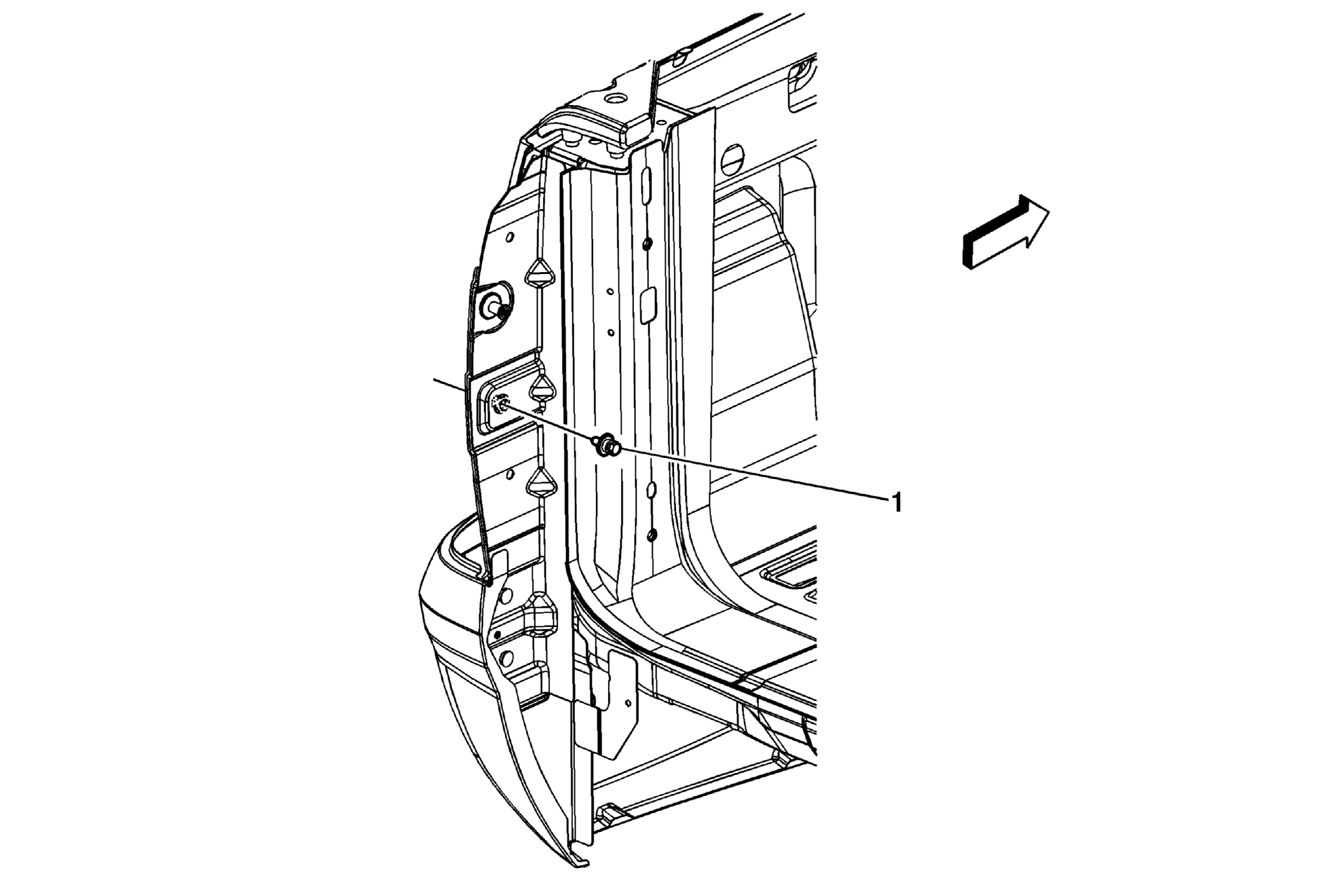

Fig 1: View Of Pickup Box Endgate Cable Bolt

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Pickup Box Endgate Cable Bolt NOTE: Refer to Fastener Notice . Tip: Disconnect the endgate cable. Refer to Endgate Cable Replacement . Tighten: 20 N.m (15 lb ft)
