Hood Primary Latch Release Cable Replacement

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

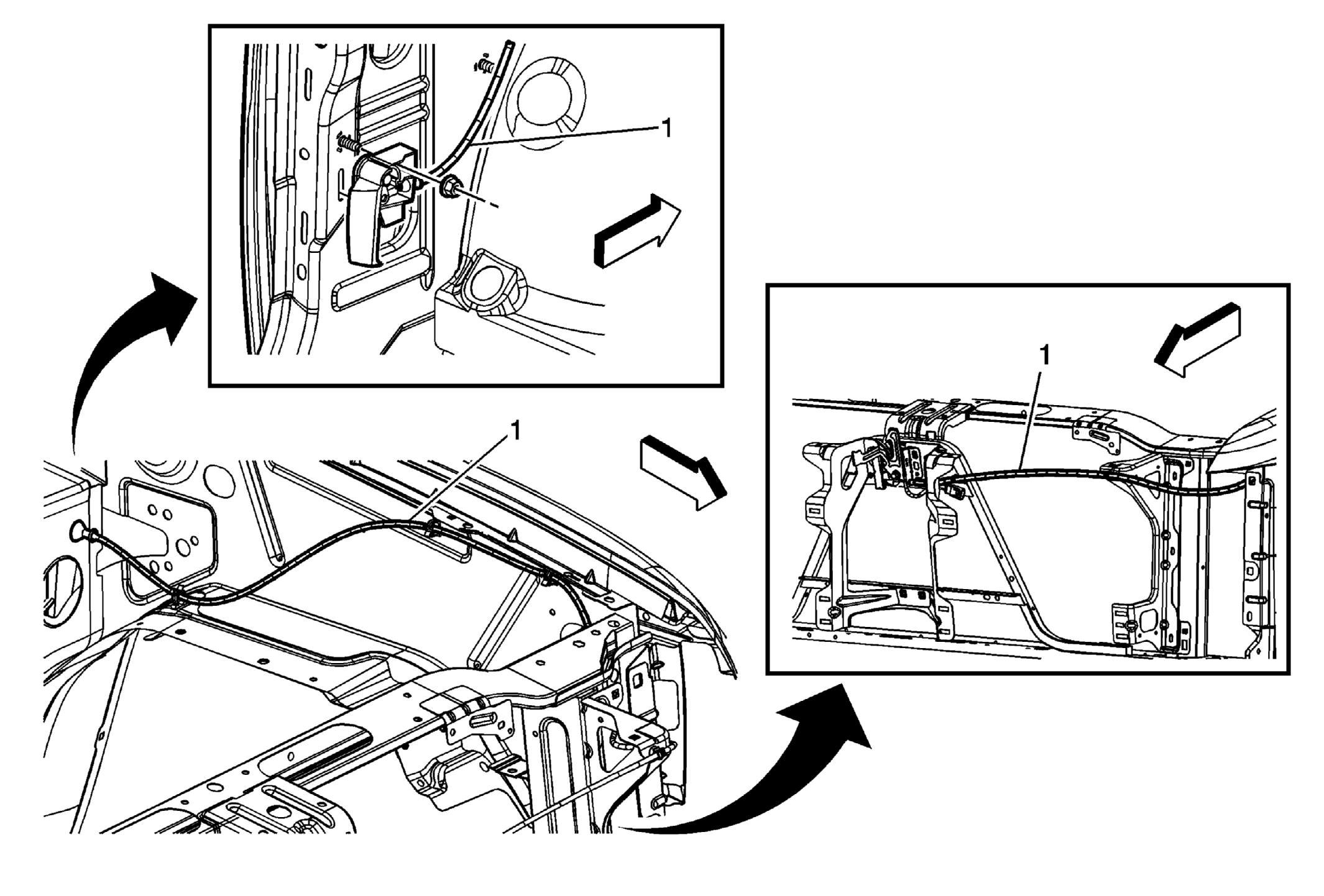

Fig 1: View Of Hood Latch Release Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the hood latch release handle. Refer to Hood Primary Latch Release Cable Handle Replacement . Remove the left headlamp. Refer to Headlamp Replacement (GMC HD) or Headlamp Replacement (Chevrolet) . Remove the hood latch. Refer to Hood Primary and Secondary Latch Replacement .
1	Hood Latch Release Cable Tip: Attach mechanics wire to the existing cable to ease the installation of the new cable. Use a trim panel removal tool to help disengage the cable from the retaining points along the body.

Callout

Component Name

Preliminary Procedures

Remove the hood latch release handle. Refer to Hood Primary Latch Release Cable Handle Replacement .
Remove the left headlamp. Refer to Headlamp Replacement (GMC HD) or Headlamp Replacement (Chevrolet) .
Remove the hood latch. Refer to Hood Primary and Secondary Latch Replacement .

Hood Latch Release Cable
Tip:

Attach mechanics wire to the existing cable to ease the installation of the new cable.
Use a trim panel removal tool to help disengage the cable from the retaining points along the body.
