Front Fender Replacement - Right Side

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

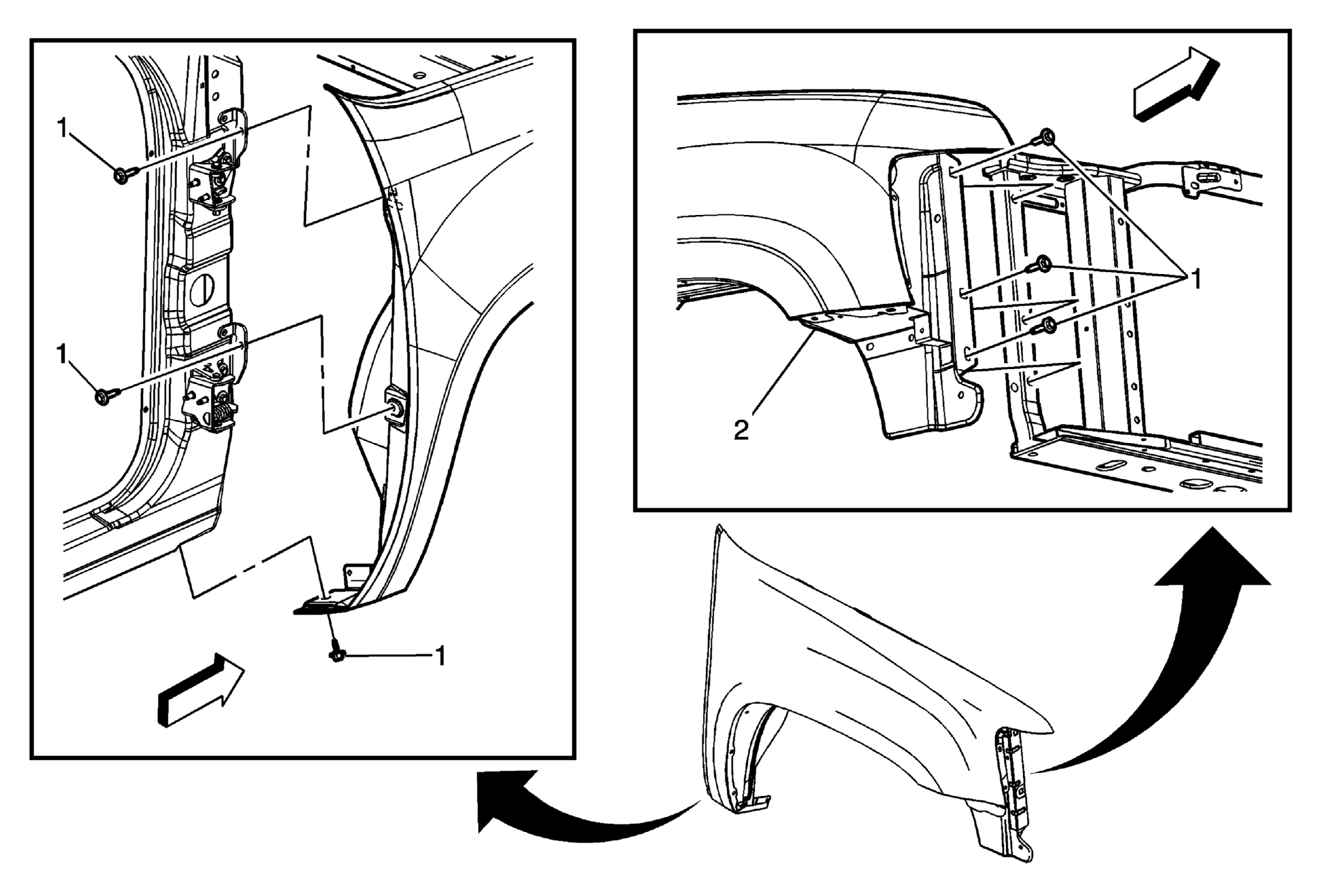

Fig 1: View Of Right Fender & Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the headlamp. Refer to Headlamp Replacement (GMC HD) or Headlamp Replacement (Chevrolet) . Remove the front fender rear upper brace. Refer to Front Fender Rear Upper Brace Replacement . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Remove the air cleaner box tray. Remove the coolant reservoir bottle from the right fender and set it aside. Do not open the cooling system. Refer to Radiator Surge Tank Replacement (Non-HP2) . Remove the battery tray. Refer to Battery Tray Replacement . Remove the right hood hinge. Refer to Hood Hinge Replacement . Remove the right hood link. Refer to Hood Link Replacement . Remove the right wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Right Side (GMC) or Front Wheelhouse Liner Replacement - Right Side (Chevrolet) .
1	Right Fender Mounting Bolts (Qty: 6) NOTE: Refer to Fastener Notice . Tighten: 30 N.m (22 lb ft) Procedure: Apply threadlock compound to the bolts.
2	Right Fender Assembly Tip: Transfer any necessary additional parts as needed.

Callout

Component Name

Preliminary Procedures

Remove the headlamp. Refer to Headlamp Replacement (GMC HD) or Headlamp Replacement (Chevrolet) .
Remove the front fender rear upper brace. Refer to Front Fender Rear Upper Brace Replacement .
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Remove the air cleaner box tray.
Remove the coolant reservoir bottle from the right fender and set it aside. Do not open the cooling system. Refer to Radiator Surge Tank Replacement (Non-HP2) .
Remove the battery tray. Refer to Battery Tray Replacement .
Remove the right hood hinge. Refer to Hood Hinge Replacement .
Remove the right hood link. Refer to Hood Link Replacement .
Remove the right wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Right Side (GMC) or Front Wheelhouse Liner Replacement - Right Side (Chevrolet) .

Right Fender Mounting Bolts (Qty: 6)

NOTE: Refer to Fastener Notice .

Tighten: 30 N.m (22 lb ft)

Procedure:
Apply threadlock compound to the bolts.

Right Fender Assembly
Tip: Transfer any necessary additional parts as needed.
