Endgate Replacement (Pickup Box)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

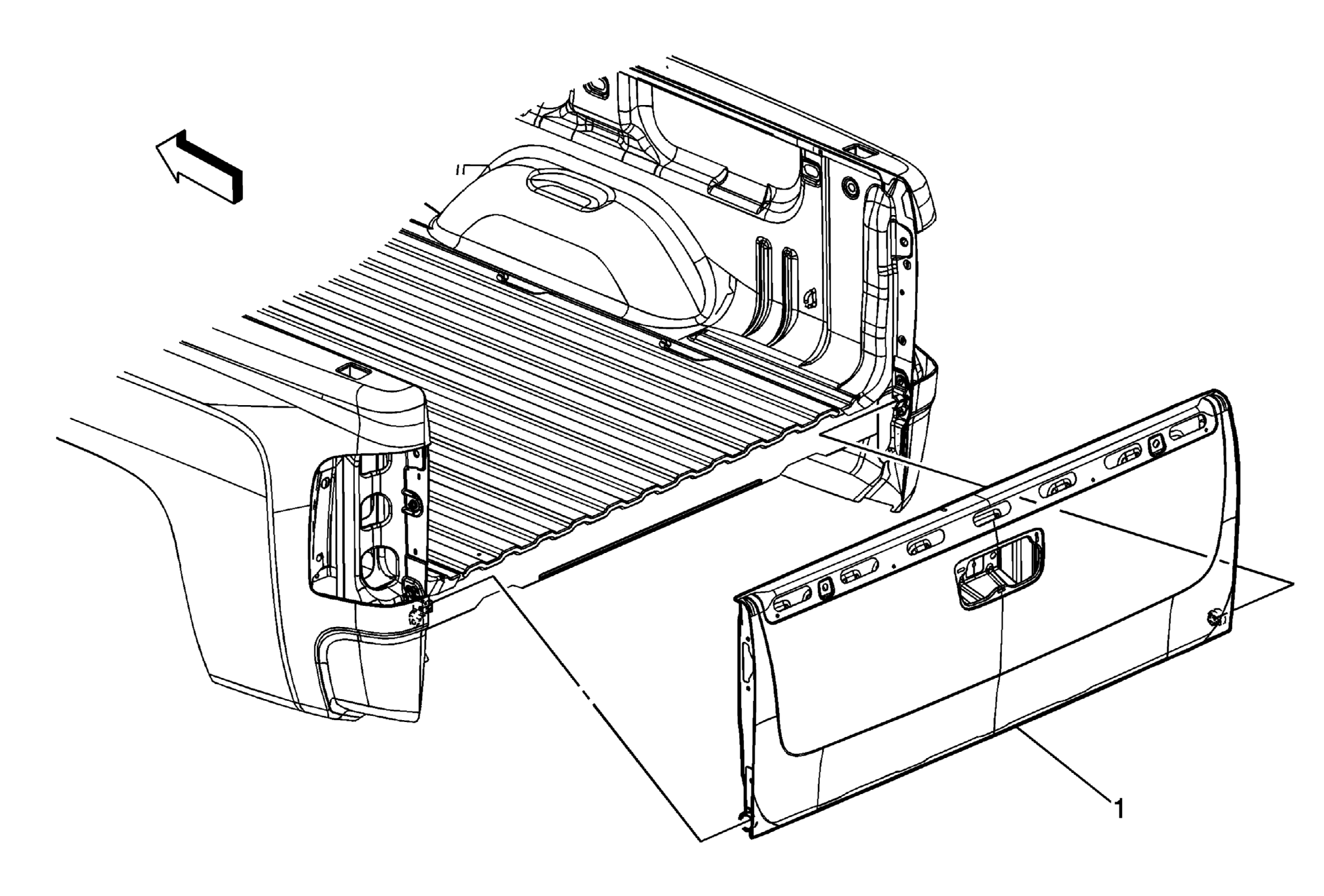

Fig 1: View Of Pickup Box Endgate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the endgate cable from the body side of the vehicle. Refer to Endgate Cable Replacement .
1	Pickup Box Endgate Tip: Use a partner to help support the pickup box endgate and hold at a forty-five degree angle while pulling to disengage from the body side endgate lower hinge.
