Door Lock/Indicator Schematics

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

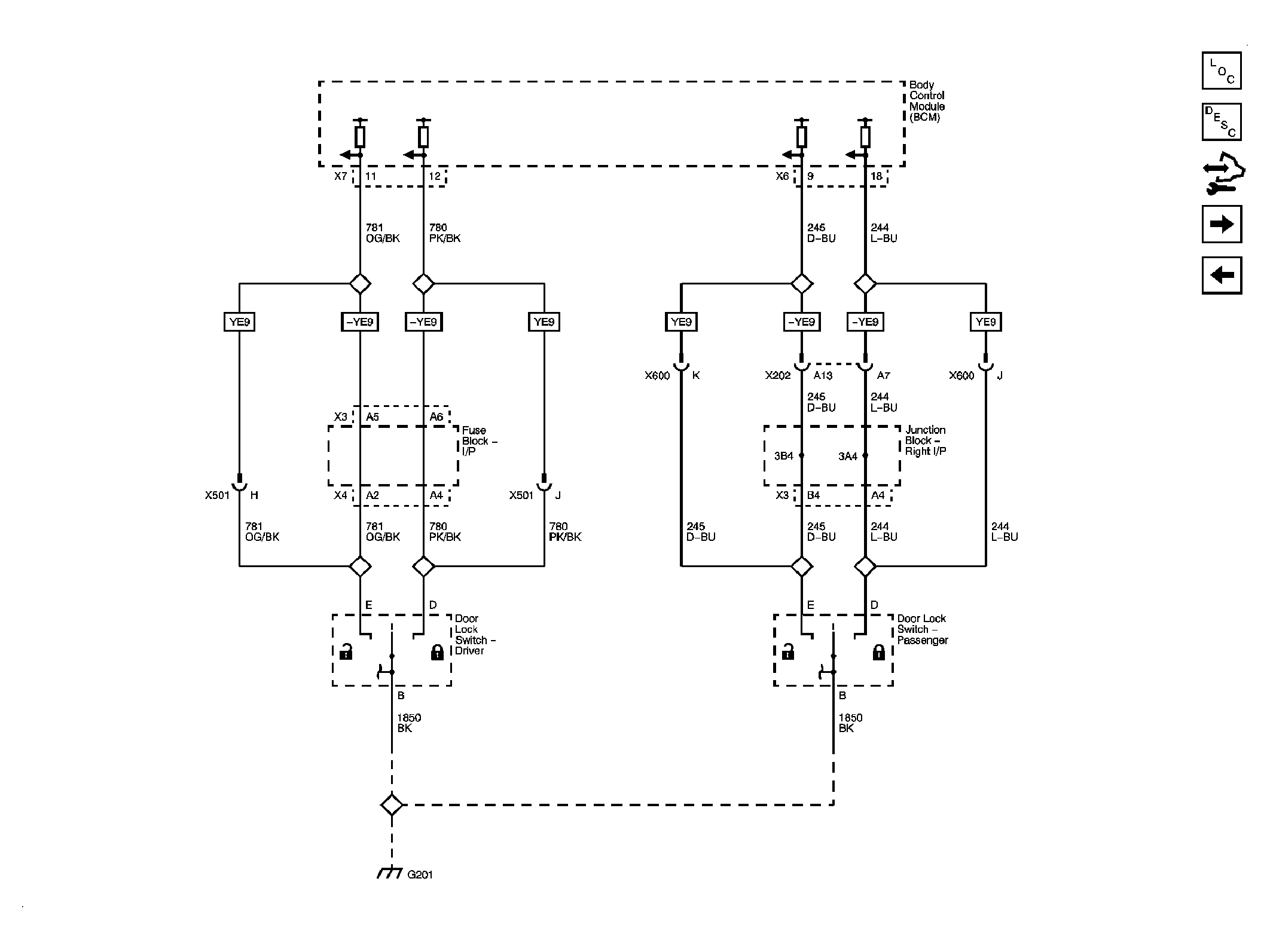

Fig 1: Door Lock Controls and Front Door Locks (AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Rear Door Locks (Crew Cab +AN3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Door Lock Controls (AU3 -AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Door Lock Motors (AU3 -AN3/DL3)

Courtesy of GENERAL MOTORS CORP.
