Pickup Box Endgate Striker Replacement (Pickup Box)
WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

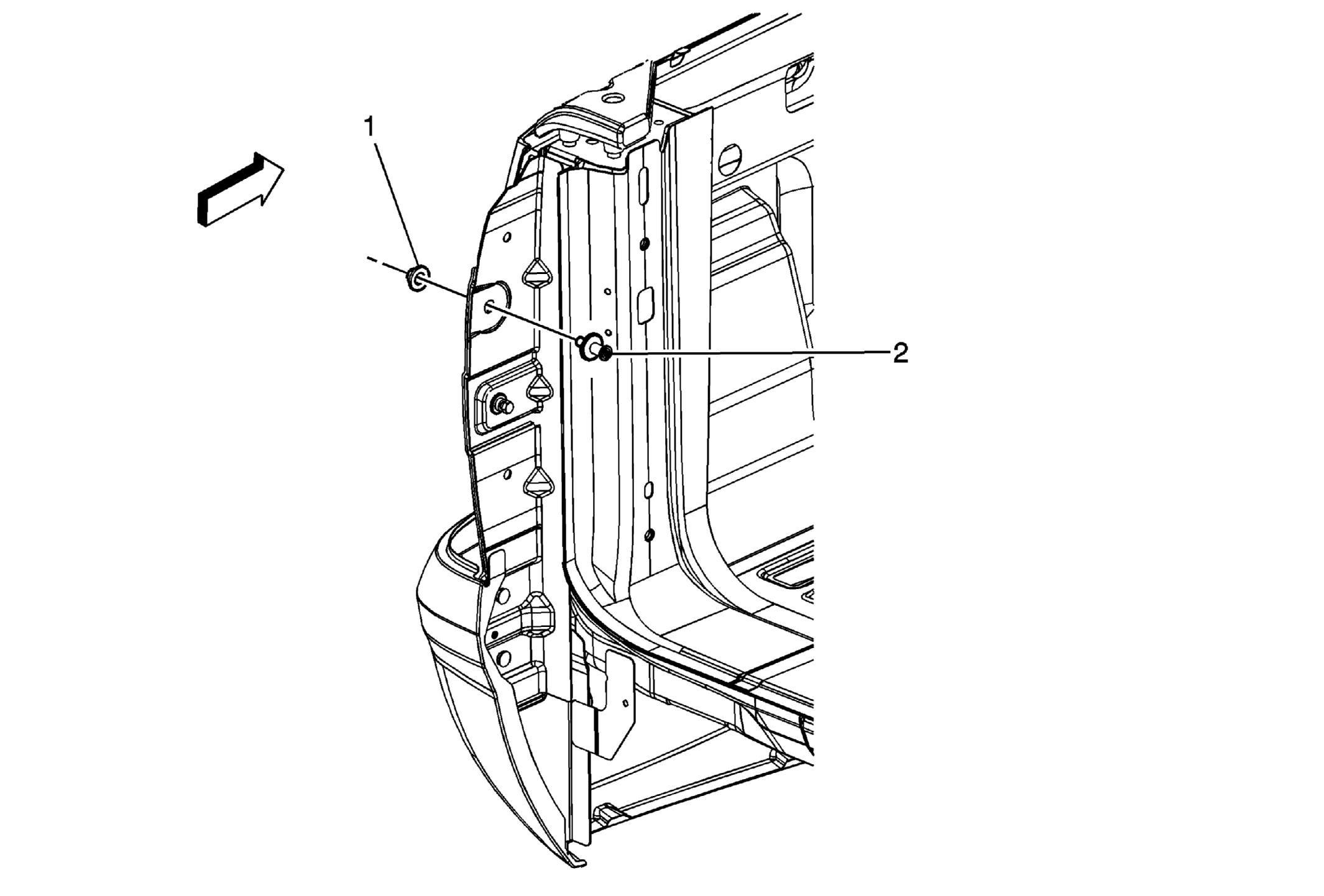

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the tail lamp. Refer to Tail Lamp Replacement (GMC) or Tail Lamp Replacement (Chevrolet) . |
|
| 1 | Pickup Box Endgate Striker Nut
NOTE:
Refer to Fastener Notice
.
Tighten: 35 N.m (26 lb ft) |
| 2 | Pickup Box Endgate Striker |
