Endgate Lock Cylinder Replacement

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

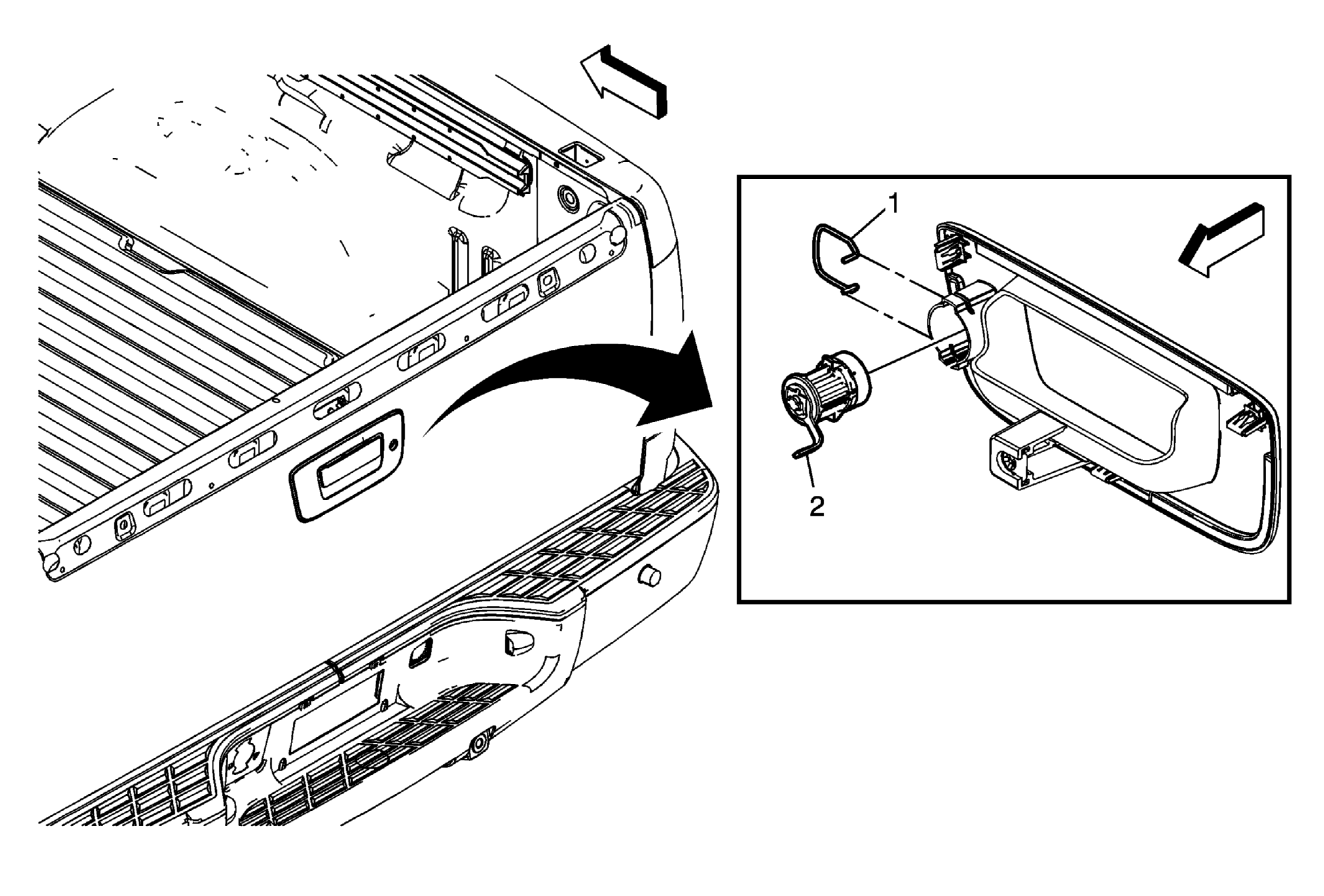

Fig 1: View Of Endgate Lock Cylinder & Retaining Clip

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the pickup box endgate latch handle bezel. Refer to Pickup Box Endgate Latch Handle Bezel Replacement (Utility) or Pickup Box Endgate Latch Handle Bezel Replacement (Pick Up) .
1	Endgate Lock Cylinder Retaining Clip
2	Endgate Lock Cylinder Tip: Code new cylinder as needed.
