Rear Side Access Door Trim Panel Replacement

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

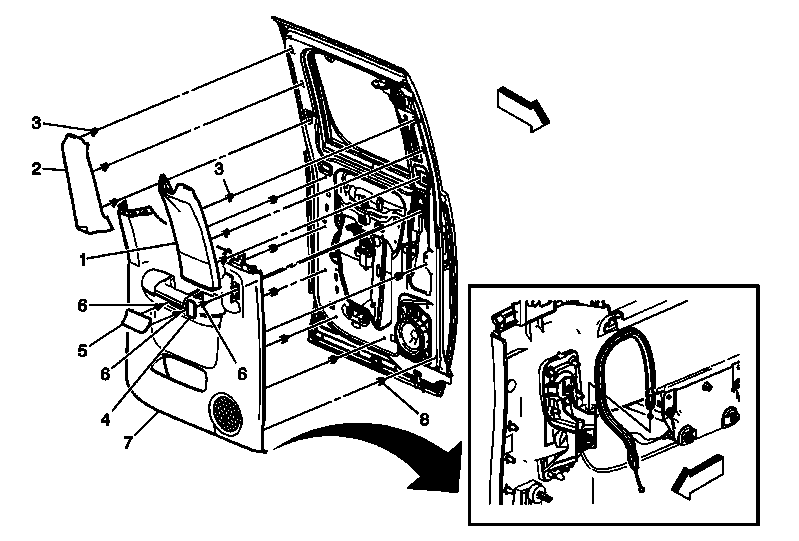

Fig 1: View Of Rear Side Access Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the window control switch, if equipped. Refer to Rear Side Door Window Switch Replacement (Crew Cab) or Rear Side Door Window Switch Replacement (Extended Cab) .
1	Rear Access Door Upper Trim Panel Assembly Tip: Start removing or installing at the bottom of the panel.
2	Rear Access Door Upper Rear Trim Panel Assembly Tip: Start removing or installing at the bottom of the panel.
3	Rear Access Door Upper Trim Panel Clip (Qty: 6)
4	Rear Access Door Release Handle Cover
5	Rear Access Door Armrest Opening Cover
6	Rear Access Door Trim Panel Bolt (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
7	Rear Access Door Trim Panel Assembly Tip: Disengage door lock cable. There are two hooks located on the lower portion of the door trim panel that are being used for manufacturing installation ONLY. If these hook are damaged during either removal or installation of the door trim panel, replacement of the panel is not required.
8	Rear Access Door Trim Panel Retainer (Qty: 7)
