Front Side Door Trim Panel Replacement (YE9)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

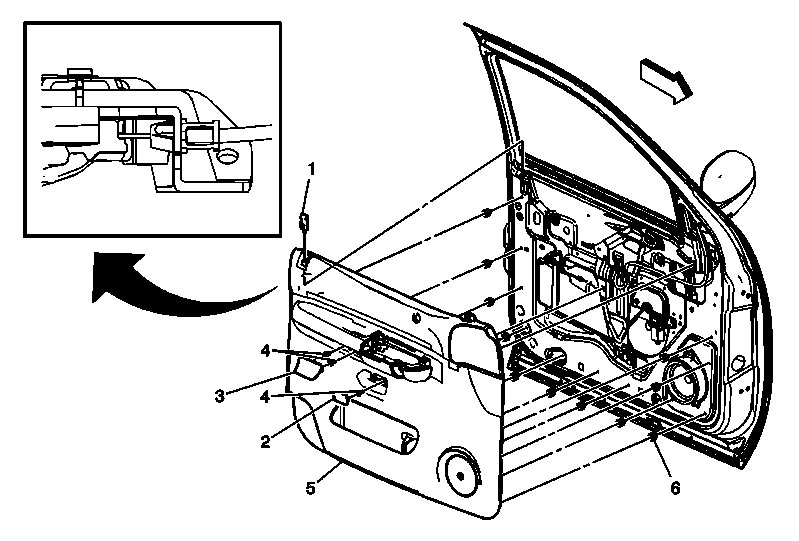

Fig 1: View Of Front Side Door Trim Panel (YE9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove upper extension trim panel. Refer to Upper Extension Trim Panel Replacement . Remove door pull handle. Refer to Front Side Door Pull Handle Replacement . Remove door lock and window control switch (if equipped). Refer to Door Lock and Side Window Switch Replacement - Driver Side and Door Lock and Side Window Switch Replacement - Passenger Side . Remove the door window regulator handle (if equipped). Refer to Door Window Regulator Handle Replacement .
1	Front Side Door Locking Rod Knob Assembly Tip: Lower window. Ensure locking rod is in the unlocked position. Use a flat-bladed tool to disengage detent tab and then remove knob by pulling upward. When re-installing, push knob down until detent tab touches locking rod opening cover. Push detent tab in to lock knob to locking rod.
2	Front Side Door Release Handle Cover
3	Front Side Door Armrest Opening Cover
4	Front Side Door Trim Panel Bolt (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
5	Front Side Door Trim Panel Assembly Tip: Disengage door lock cable. There are two hooks located on the lower portion of the door trim panel that are being used for manufacturing installation ONLY. If these hook are damaged during either removal or installation of the door trim panel, replacement of the panel is not required.
6	Front Side Door Trim Panel Retainer (Qty: 11)
