Front Floor Panel Carpet Replacement (Extended Cab)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

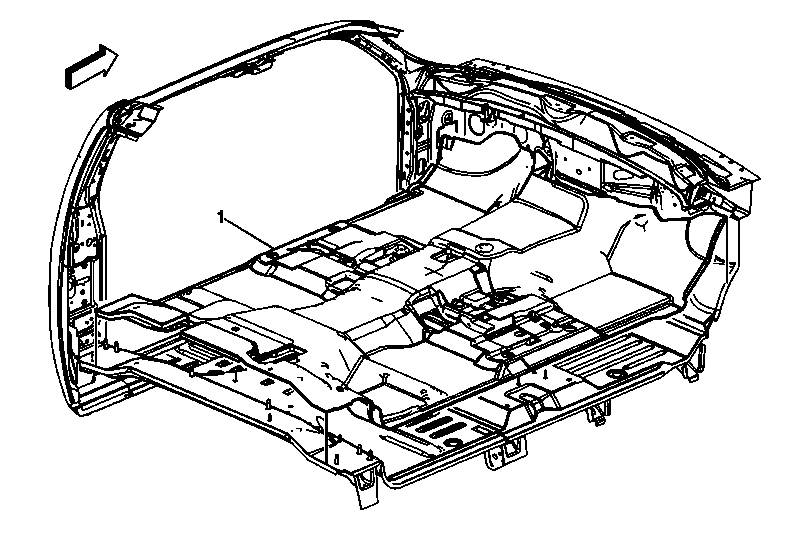

Fig 1: Front Floor Panel Carpet (Extended Cab)
GM1825495Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove front seats. Refer to Front Seat Replacement - Bucket .
  2. Remove center front seat, if equipped. Refer to Front Center Seat Replacement .
  3. Remove rear seats. Refer to Rear Seat Replacement (Crew Cab with A68) or Rear Seat Replacement (Extended Cab with A68) or Rear Seat Replacement (Extended Cab with AM7) .
  4. Remove floor console, if equipped. Refer to Front Floor Console Replacement (with RPO SLT) or Front Floor Console Replacement (without RPO SLT) .
  5. Remove front seat belt from the seat. Refer to Seat Belt Retractor Pretensioner Replacement - Front (Regular Cab) or Seat Belt Retractor Pretensioner Replacement - Front (Extended Cab) or Seat Belt Retractor Pretensioner Replacement - Front (Crew Cab) .
  6. Remove rear center seat belt buckles. Refer to Rear Seat Center Belt Buckle Replacement (Ext Cab w/A68) or Rear Seat Center Belt Buckle Replacement (Ext Cab w/AM7) or Rear Seat Center Belt Buckle Replacement (Crew Cab) .
  7. Remove front door sill plates. Refer to Front Side Door Sill Plate Replacement (Regular Cab/Crew Cab) or Front Side Door Sill Plate Replacement (Extended Cab) .
  8. Remove rear door sill plates. Refer to Rear Side Door Sill Plate Replacement (Extended Cab) or Rear Side Door Sill Plate Replacement (Crew Cab) .
  9. Remove jack stowage cover. Refer to Jack Stowage Cover Replacement .
  10. Remove body lock pillar trim panels. Refer to Body Lock Pillar Trim Replacement (Crew Cab) or Body Lock Pillar Trim Replacement (Regular Cab) or Body Lock Pillar Trim Replacement (Extended Cab) .
  11. Remove front hinge pillar trim panels. Refer to Body Hinge Pillar Trim Panel Replacement
1 Floor Panel Carpet Assembly

Procedure

  1. Pull the body harness fully forward in vehicle position to forward edge of carpet slit in order to clear console bracket.
  2. Lift the HVAC floor ducts to place the carpet underneath.
