Rear Bumper Impact Bar End Cap Replacement
WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

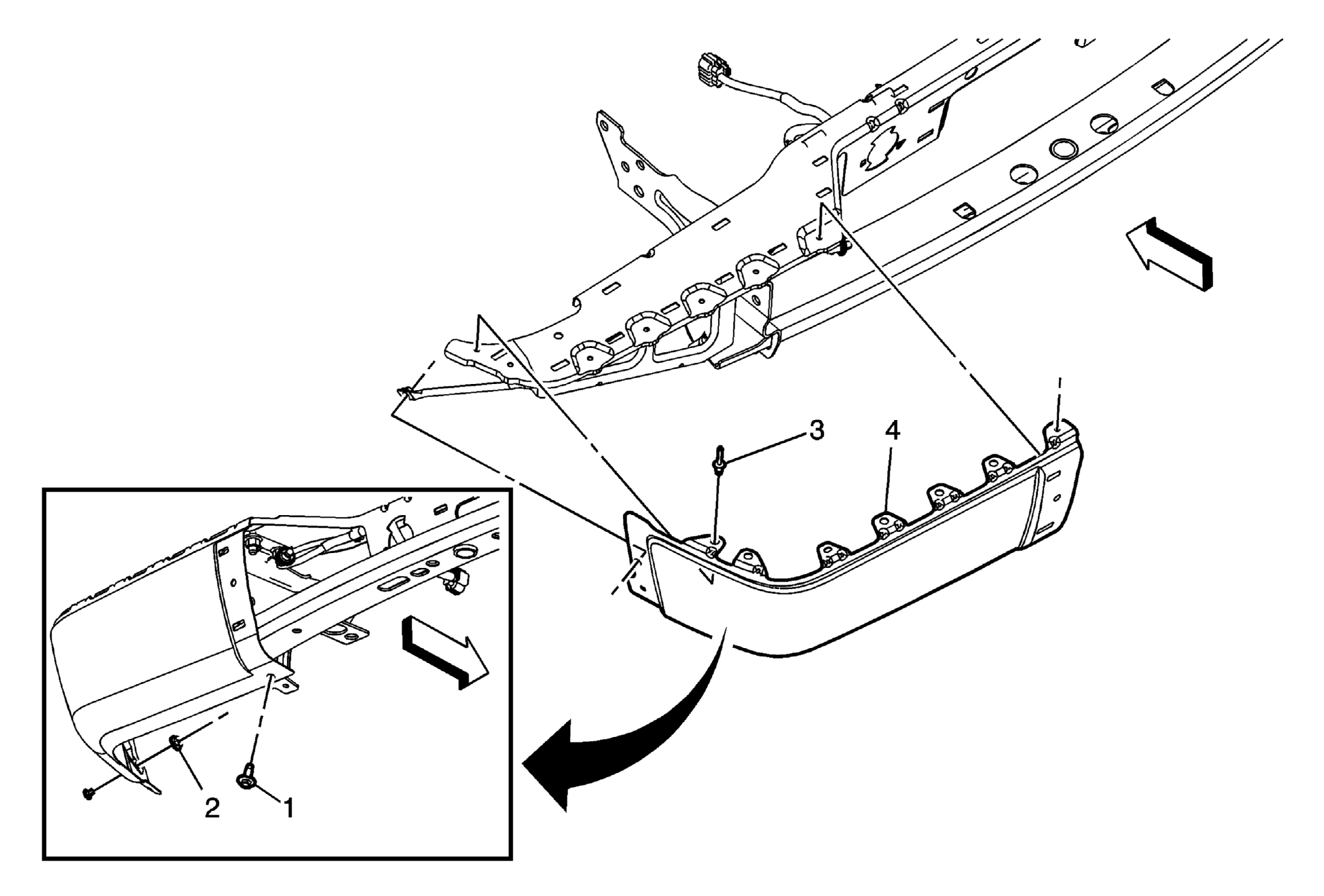

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the center rear bumper step pad. Refer to Rear Bumper Step Center Pad Replacement . |
|
| 1 | Rear Bumper Impact Bar End Cap Bolt
NOTE:
Refer to Fastener Notice
.
Tighten: 25 N.m (18 lb ft) |
| 2 | Rear Bumper Impact Bar End Cap Nut Tighten: 10 N.m (89 lb in) |
| 3 | Rear Bumper Impact Bar End Cap Rivets (Qty: 7) |
| 4 | Rear Bumper Impact Bar End Cap |
