Front Bumper Impact Bar Outer Bracket Replacement (Chevrolet)

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

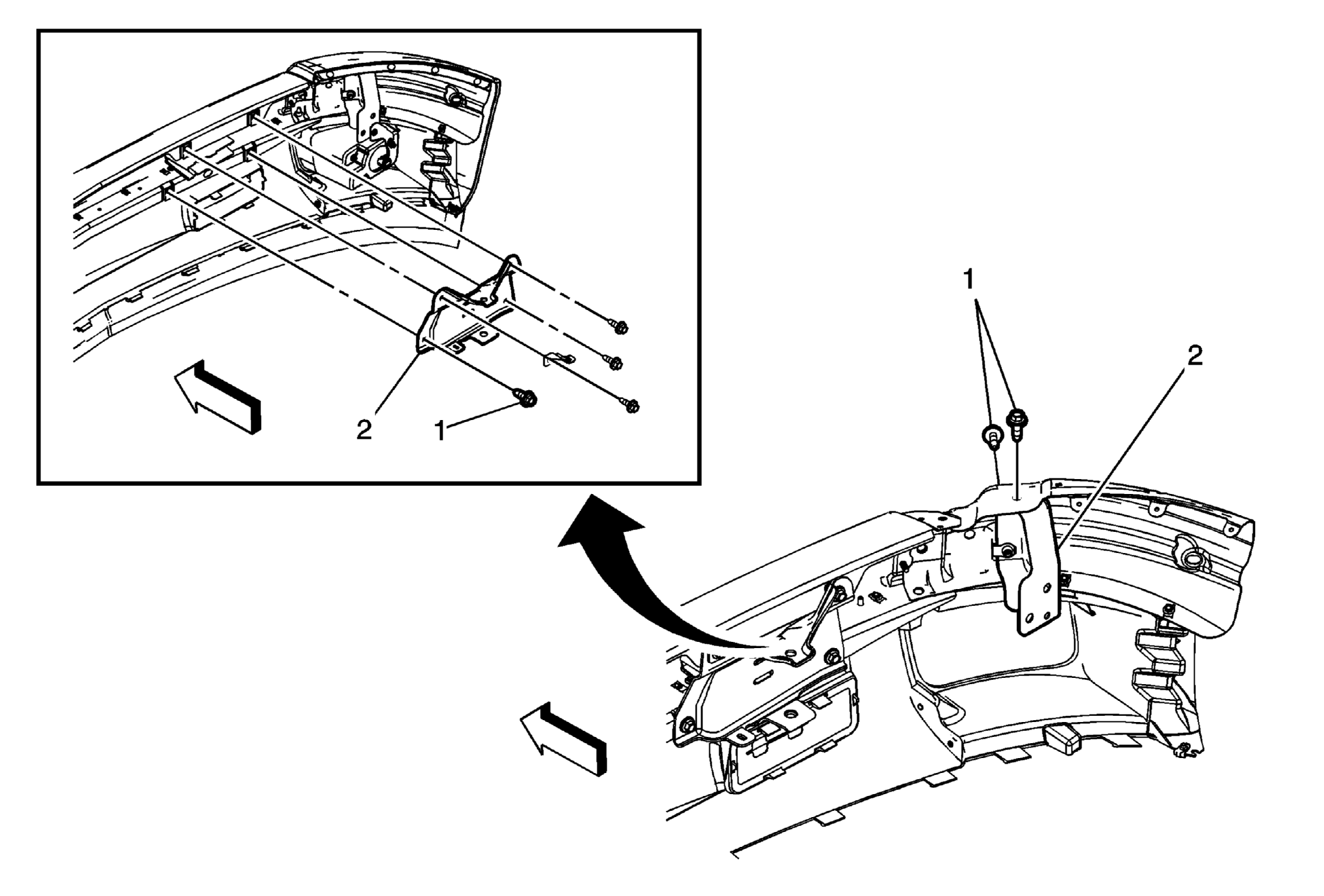

Fig 1: View Of Front Bumper Impact Bar Outer Bracket (Chevrolet)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement (GMC) or Front Bumper Impact Bar Replacement (Chevrolet) . Remove front bumper end cap replacement. Refer to Front Bumper End Cap Replacement (Chevrolet) .
1	Front Bumper Impact Bar Outer Bracket Bolt (Qty: 6) NOTE: Refer to Fastener Notice . Tighten: 50 N.m (37 lb ft)
2	Front Bumper Impact Bar Outer Bracket (Qty: 2) Tip: Remove the front bumper end cap if needed. Refer to Front Bumper End Cap Replacement (Chevrolet) .

Callout

Component Name

Preliminary Procedures

Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement (GMC) or Front Bumper Impact Bar Replacement (Chevrolet) .
Remove front bumper end cap replacement. Refer to Front Bumper End Cap Replacement (Chevrolet) .

Front Bumper Impact Bar Outer Bracket Bolt (Qty: 6)

NOTE: Refer to Fastener Notice .

Tighten: 50 N.m (37 lb ft)

Front Bumper Impact Bar Outer Bracket (Qty: 2)
Tip: Remove the front bumper end cap if needed. Refer to Front Bumper End Cap Replacement (Chevrolet) .
