Front Bumper Impact Bar Brace Replacement
WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

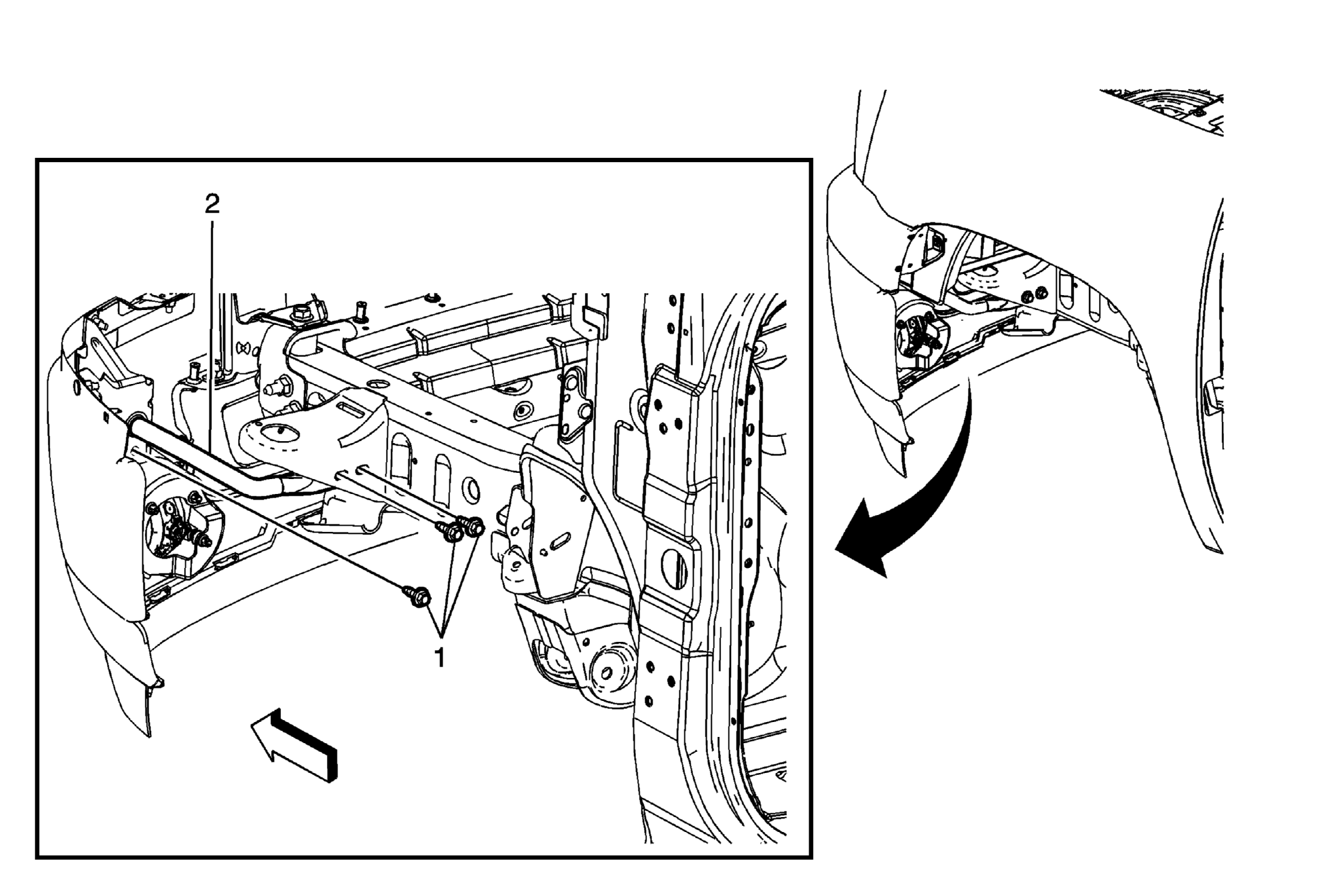

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Right Side (GMC) or Front Wheelhouse Liner Replacement - Right Side (Chevrolet) and Front Wheelhouse Liner Replacement - Left Side (Chevrolet) or Front Wheelhouse Liner Replacement - Left Side (GMC) |
|
| 1 | Front Bumper Impact Bar Brace Bolts (Qty: 3)
NOTE:
Refer to Fastener Notice
.
Tighten: 55 N.m (41 lb ft) |
| 2 | Front Bumper Impact Bar Brace |
