Front Air Deflector Replacement (GMC)
WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

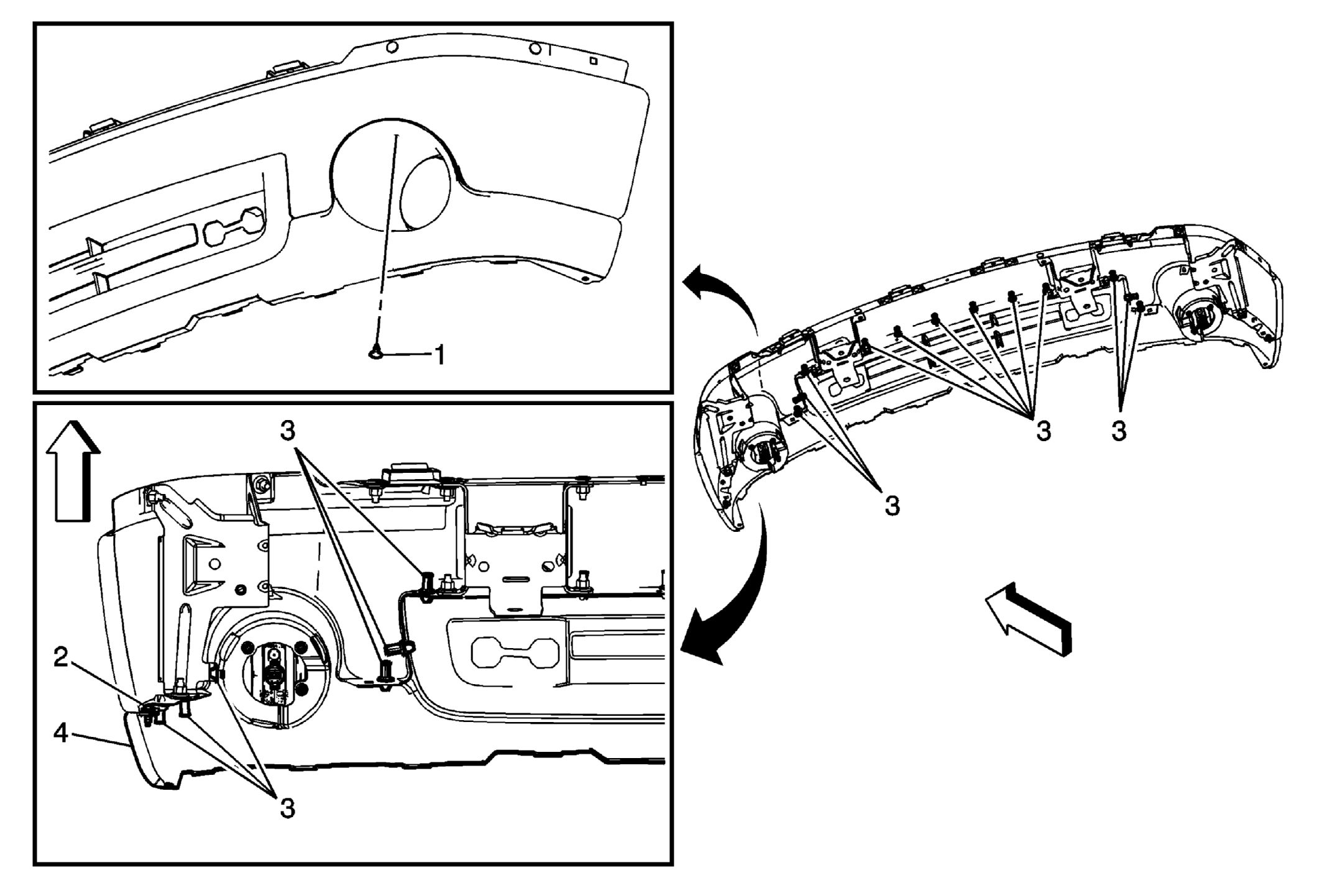

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement (GMC) or Front Bumper Impact Bar Replacement (Chevrolet) . |
|
| 1 | Front Fascia Air Deflector Plastic Retainers (Qty: 2) |
| 2 | Front Fascia Air Deflector Bolts (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 10 N.m (89 lb in) |
| 3 | Front Fascia Air Deflector Rivets (Qty: 18) |
| 4 | Front Fascia Air Deflector Tip: Transfer any parts as needed. |
