Engine Cooling Schematics

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

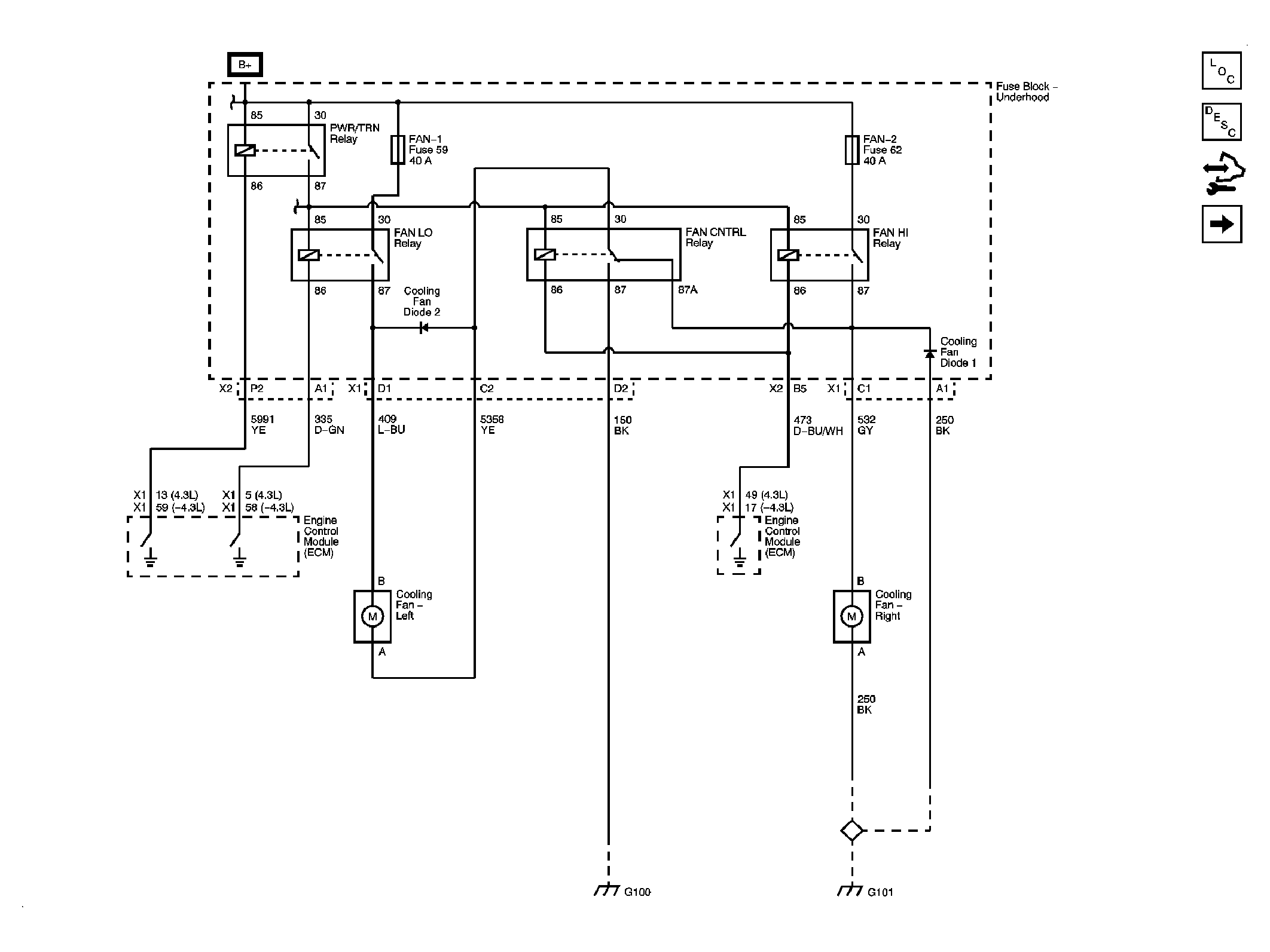

Fig 1: Engine Cooling Schematic - Gas
GM1915354Courtesy of GENERAL MOTORS CORP.

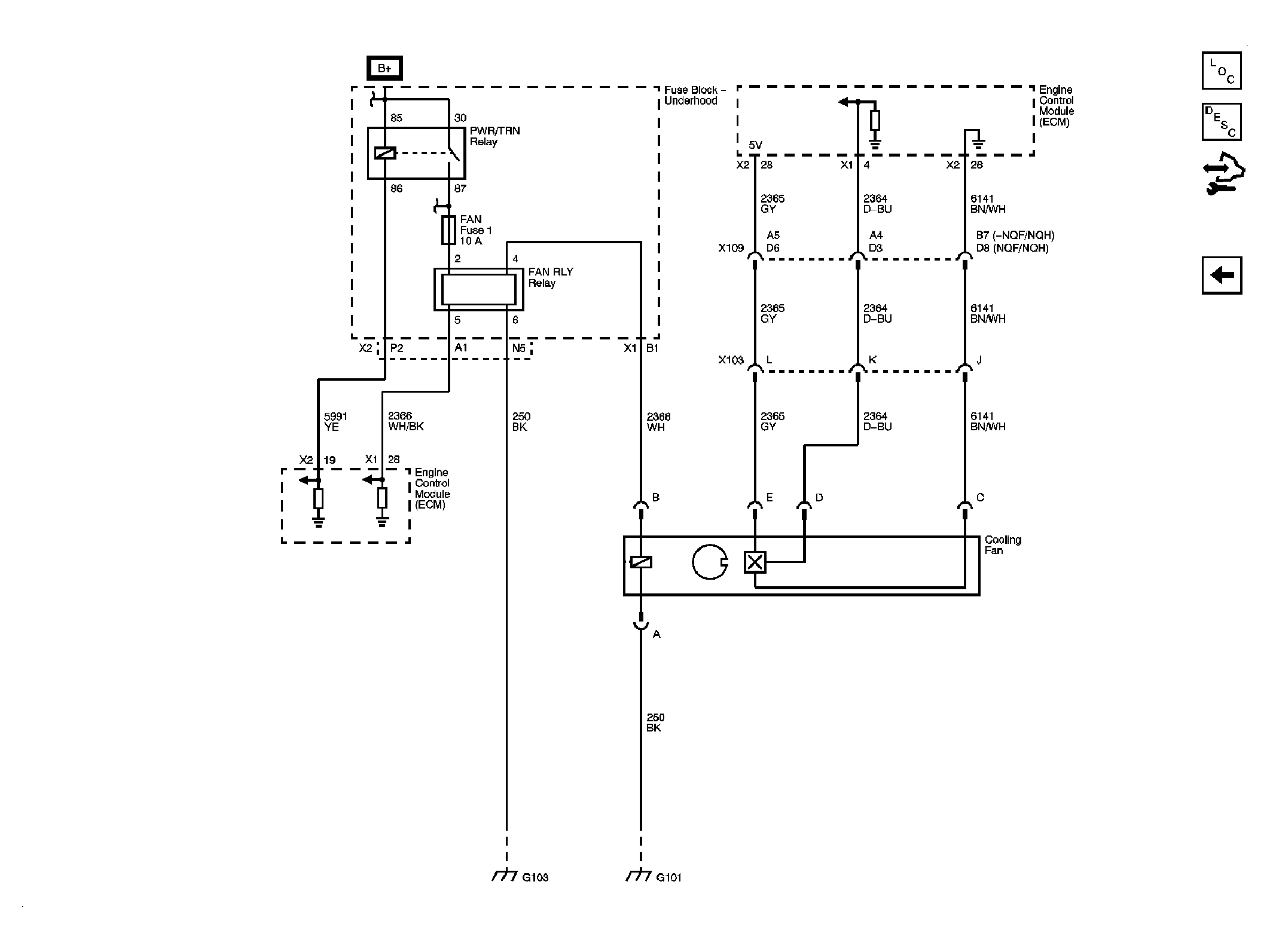

Fig 2: Engine Cooling Schematic - Diesel
GM1915357Courtesy of GENERAL MOTORS CORP.
