Hood Rear Molding Replacement (Chevrolet HD)
WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

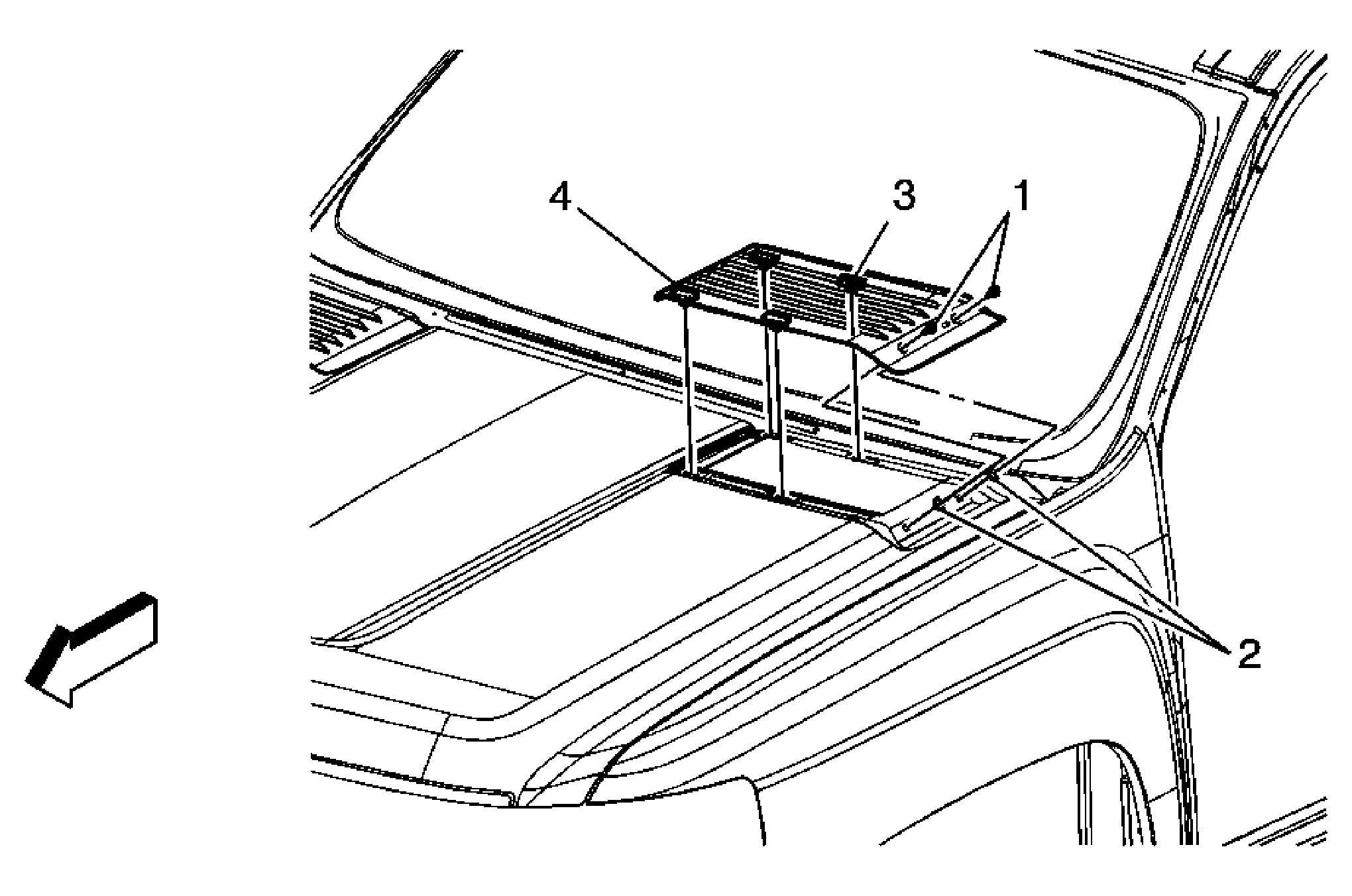

| Callout | Component Name |
|---|---|
| 1 | Hood Rear Molding Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten:: 1.5 N.m (13 lb in) |
| 2 | Hood Rear Molding Assembly Nut (Qty: 2) |
| 3 | Hood Rear Molding Integral Clip (Qty: 4) Tip: Ensure all four clips are fully seated prior to installing the hood rear molding screws. |
| 4 | Hood Rear Molding Tip: Gently pry the hood molding upward, in order to remove. |
