Crankshaft Bearing Selection Grade Chart Method

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Crankshaft and Bearing Cleaning and Inspection

Stamp ID Main Journal Conn. Rod Journal
No Stamp STD STD
M20 R20 0.020 in 0.020 in

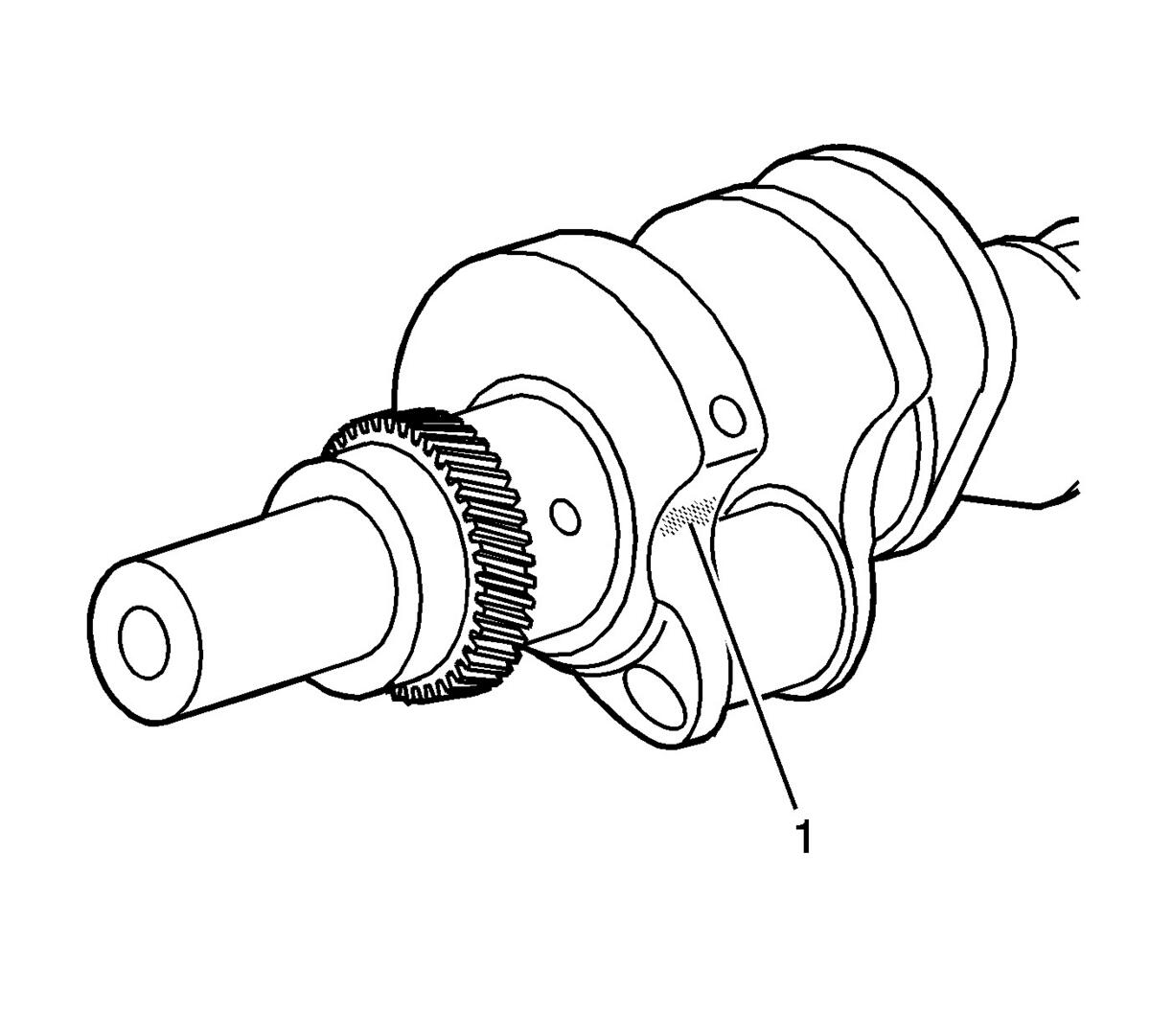

    Fig 1: Inspecting Crankshaft For Stamping Indicating Undersized Main And/Or Rod Journals
    GM1775612Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: All crankshafts that have been machined have a steel stamping (1) on the 1st counterweight.
  1. Inspect the crankshaft for stamping (1) indicating undersized main and/or rod journals.
    2. Fig 2: View Of Cylinder Block Grade
    GM663785Courtesy of GENERAL MOTORS CORP.
  2. The cylinder block grade is indicated on the right lower portion of the cylinder block.
    3. Fig 3: View of Crankshaft Journal Grade
    GM663786Courtesy of GENERAL MOTORS CORP.
  3. The crankshaft journal grade is indicated on the number 1 crankshaft counterweight.
  4. Match the cylinder block grade and the crankshaft journal grade, refer to Crankshaft Bearing Selection Specifications .
  5. From the Crankshaft Bearing Grade chart, determine which bearing grade (color code) is required.
  6. Verify the crankshaft bearing clearance using the plastic gage method.
