Transfer Case Control Lever Replacement

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

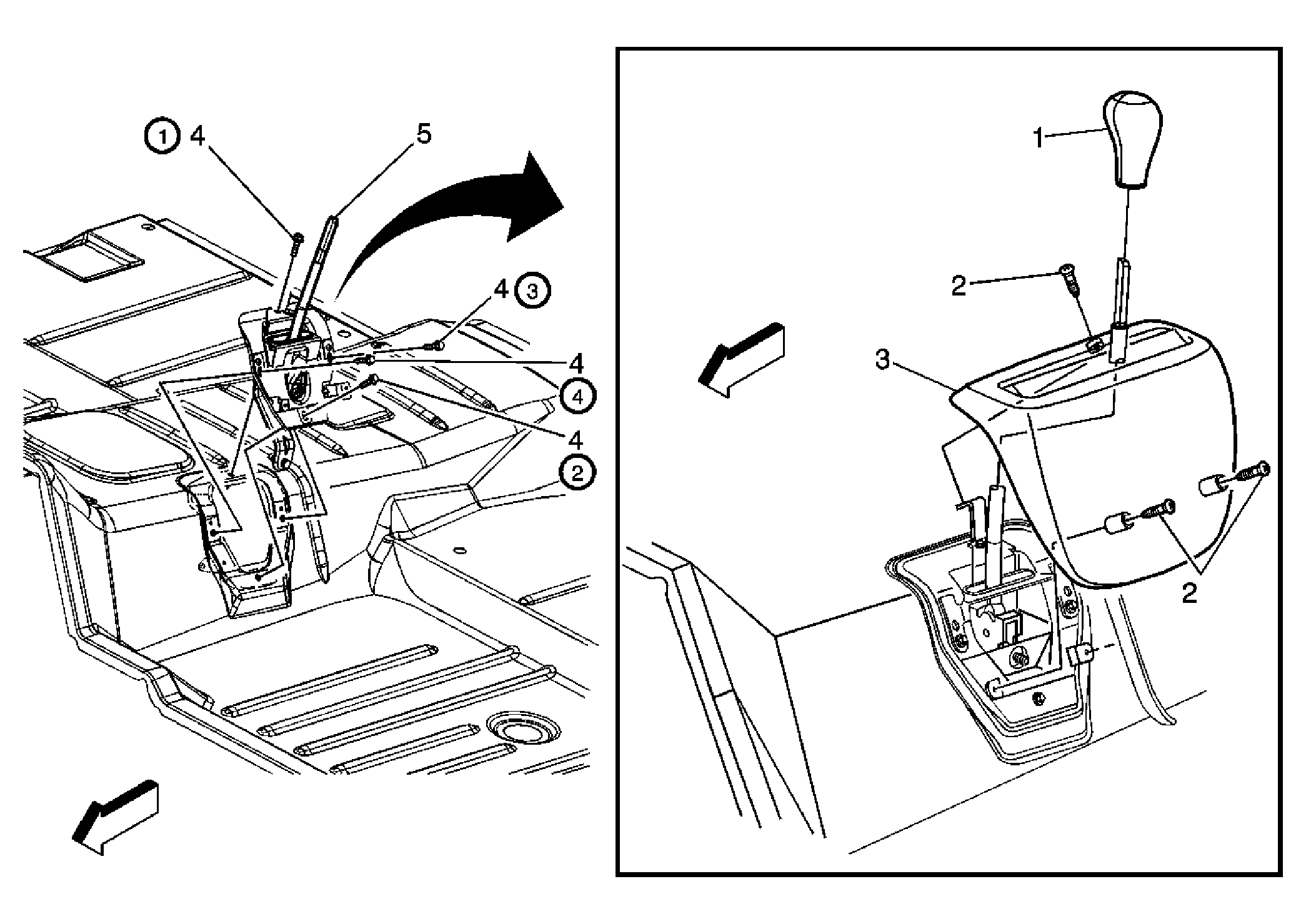

Fig 1: View Of Transfer Case Control Lever Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement . Remove the front propeller shaft. Refer to Front Propeller Shaft Replacement . Remove the control rod. Refer to Transfer Case Control Rod Replacement . Tip: When performing the following procedure, use only hand tools to remove and install the drain and fill plugs.
1	Transfer Case Control Lever Knob Procedure: Using an adjustable wrench, adjust the wrench to fit the control lever rod just below the knob. With the adjustable wrench touching the control lever knob, gently tap on the adjustable wrench in an upward motion until the knob is separated from the control lever rod.
2	Transfer Case Control Lever Bezel Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 12 N.m (106 lb in)
3	Transfer Case Control Lever Bezel
4	Transfer Case Control Lever Bolt (Qty: 4) Tip: Tighten bolts in specified sequence. Tighten: 25 N.m (18 lb ft)
5	Transfer Case Control Lever
