Removal Procedure

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

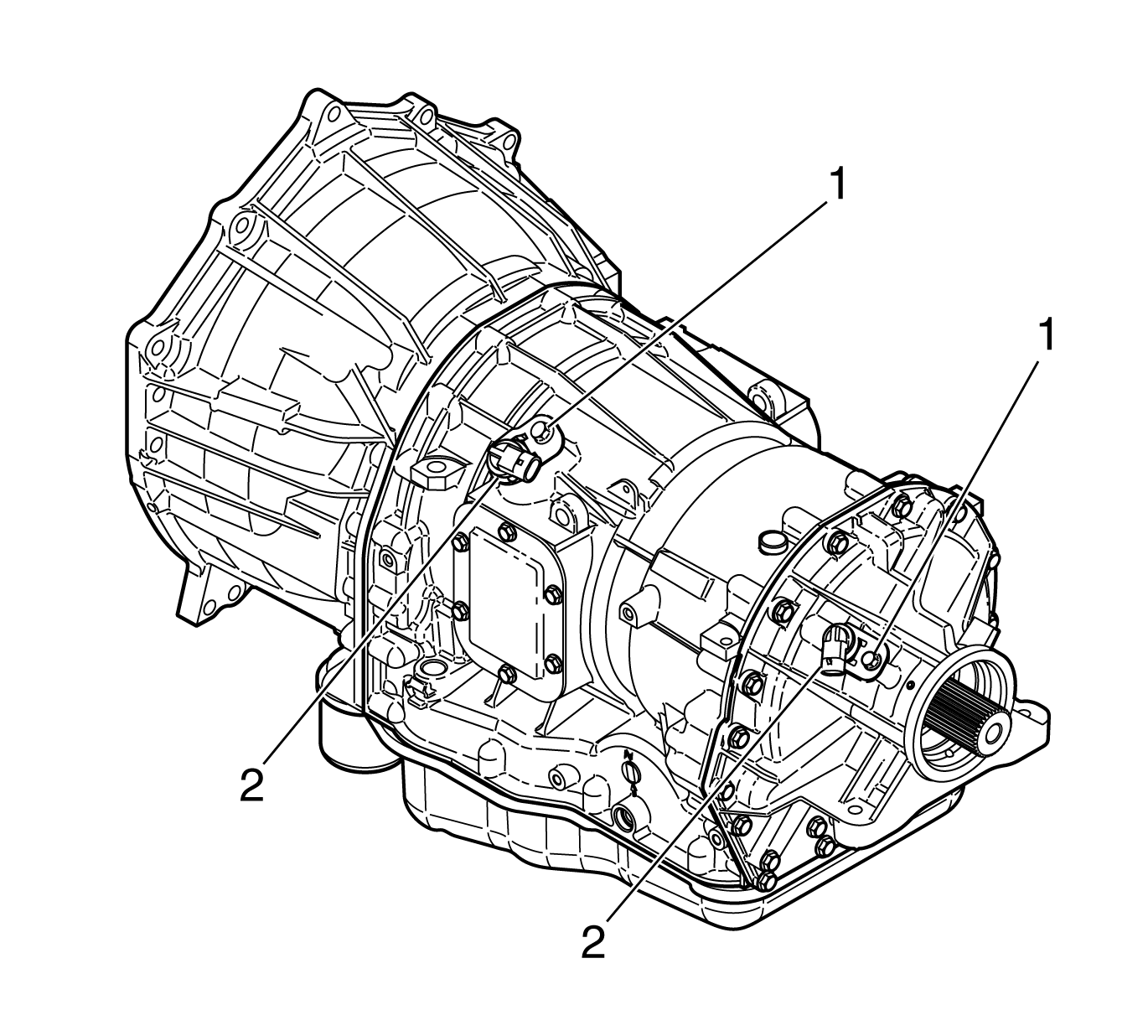

    Fig 1: Identifying Speed Sensors
    GM1914733Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Be sure the vehicle ignition is turned off.
  2. Disconnect the external wiring harness from the speed sensor.
  3. Remove the bolt (1) from the speed sensor and carefully remove the speed sensor (2).
