Turbine Shaft Bushing Replacement: Notes

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 44526 Output/Turbine Shaft Bushing Remover. See Special Tools .
J 43791 Output/Turbine Shaft Bushing Installer. See Special Tools .

Removal Procedure

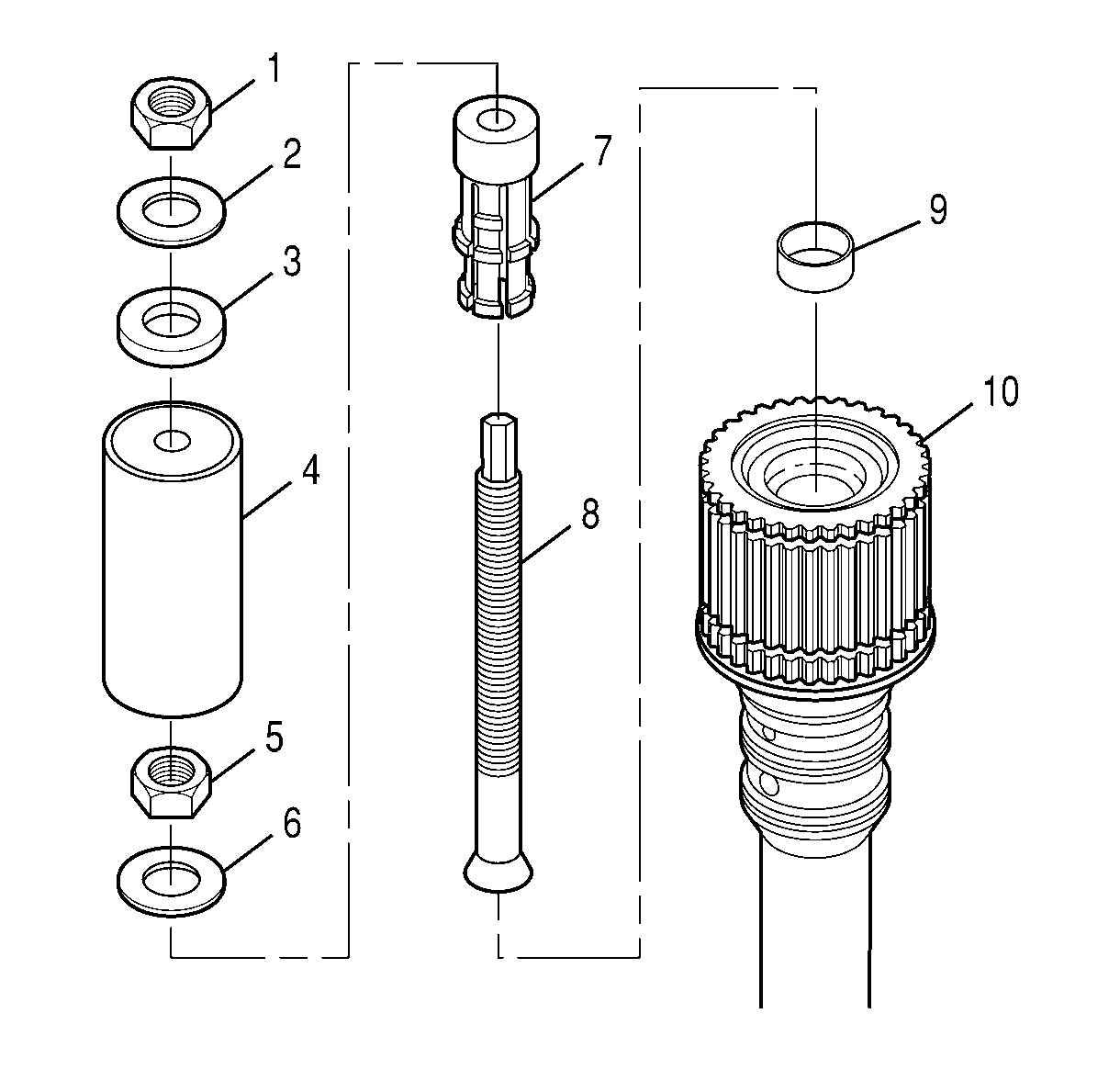

Fig 1: Identifying Output/Turbine Shaft Bushing Remover Components

Courtesy of GENERAL MOTORS CORP.

Install J 44526-2 bolt (8) into J 44526-1 extractor (7).
Install J 44526-2 bolt (8) and J 44526-1 extractor (7) into the bushing (9).
Install the washer (6) and the nut (5) onto J 44526-2 bolt (8).
Hold the top of J 44526-2 bolt (8) with a wrench and tighten nut (5) until J 44526-1 extractor (7) engages the bushing (9).
Install J 44526-3 protector (4) onto J 44526-2 bolt (8).
Install bearing (3), washer (2), and nut (1) onto J 44526-2 bolt (8).
Hold the top of J 44526-2 bolt (8) with a wrench and tighten nut (1) until the bushing is dislodged.
Remove J 44526 from the turbine shaft. See Special Tools .
