Component Location
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

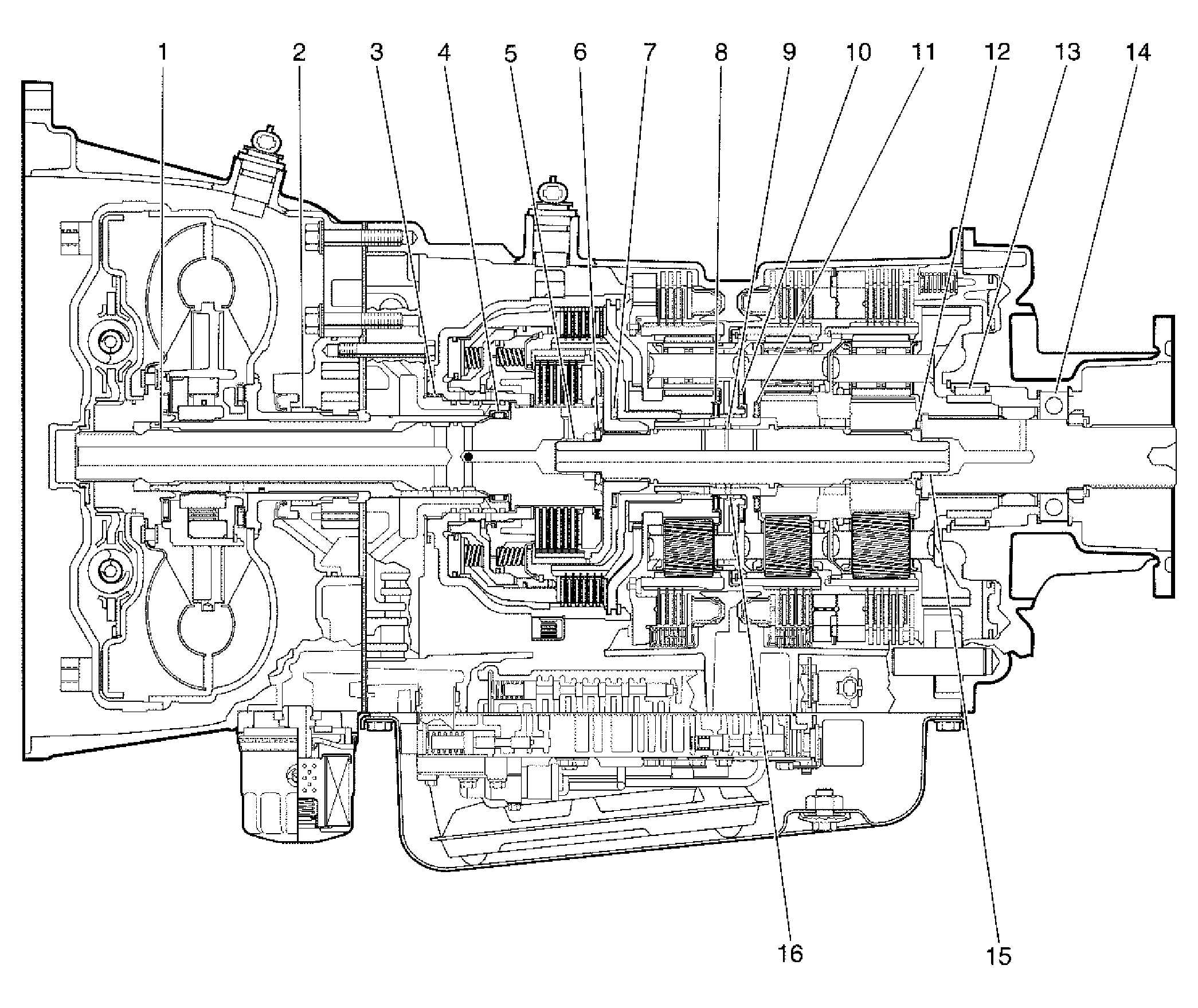

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Stator Shaft Bushing |
| 2 |
Oil Pump Bushing |
| 3 |
1-2-3-4, 4-5-6 Clutch Piston Housing Bushing |
| 4 |
Oil Pump Cover Assembly Needle Bearing |
| 5 |
Turbine Shaft Bushing |
| 6 |
1-2-3-4 Clutch Drive Hub Thrust Bearing |
| 7 |
4-5-6 Clutch Hub Thrust Bearing |
| 8 |
Input Carrier Thrust Bearing |
| 9 |
Intermediate Carrier Bushing |
| 10 |
Intermediate Carrier Thrust Bearing |
| 11 |
Intermediate Carrier Thrust Bearing |
| 12 |
Output Sun Gear Thrust Bearing |
| 13 |
Output Carrier Needle Bearing |
| 14 |
Low and Reverse Clutch Housing Ball Bearing |
| 15 |
Output Shaft Bushing |
| 16 |
Input Carrier Bushing |

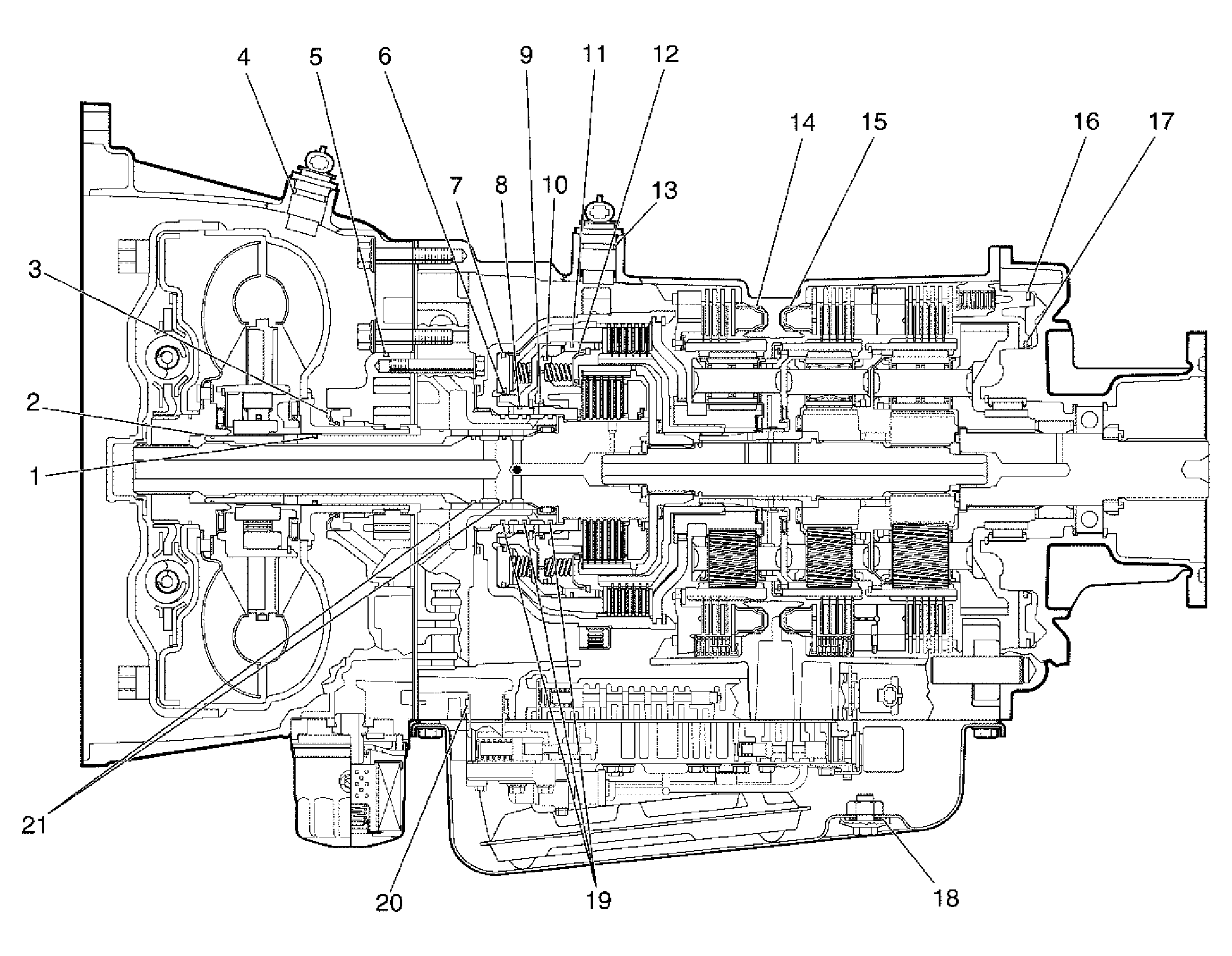

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Stator Shaft Seal Ring |
| 2 |
Stator Shaft Seal Ring |
| 3 |
Oil Pump Lip Seal |
| 4 |
Input Speed Sensor O-Ring |
| 5 |
Pump Body O-Ring |
| 6 |
4-5-6 Clutch Piston Inner Seal |
| 7 |
4-5-6 Clutch Piston Outer Seal |
| 8 |
1-2-3-4 Clutch Piston Assembly Outer Seal |
| 9 |
1-2-3-4 Clutch Piston Inner Seal |
| 10 |
1-2-3-4 Clutch Piston Outer Seal |
| 11 |
1-2-3-4 Clutch Assembly Outer Seal |
| 12 |
1-2-3-4 Clutch Balance Piston |
| 13 |
Turbine Speed Sensor O-Ring |
| 14 |
3rd, 5th, and Reverse Clutch Piston Seal Assembly |
| 15 |
2-6 Clutch Piston Seal Assembly |
| 16 |
Low and Reverse Clutch Piston Outer Seal |
| 17 |
Low and Reverse Clutch Piston Outer Seal |
| 18 |
Drain Plug O-Ring |
| 19 |
Stator Shaft Overlap Seal Ring (3) |
| 20 |
Transmission Internal Oil Filter Seal |
| 21 |
Turbine Shaft Seal, 2 |
